- Page 1 Luxier SP01-GS Luxier SP01-GS Rev. A 122013...
- Page 2 Luxier USA Customer Care Department will decide whether to repair or replace your product, issue a refund, or issue a credit. Luxier USA is dedicated to providing the best customer service. All emails will be replied within one (1) business day Attention •...

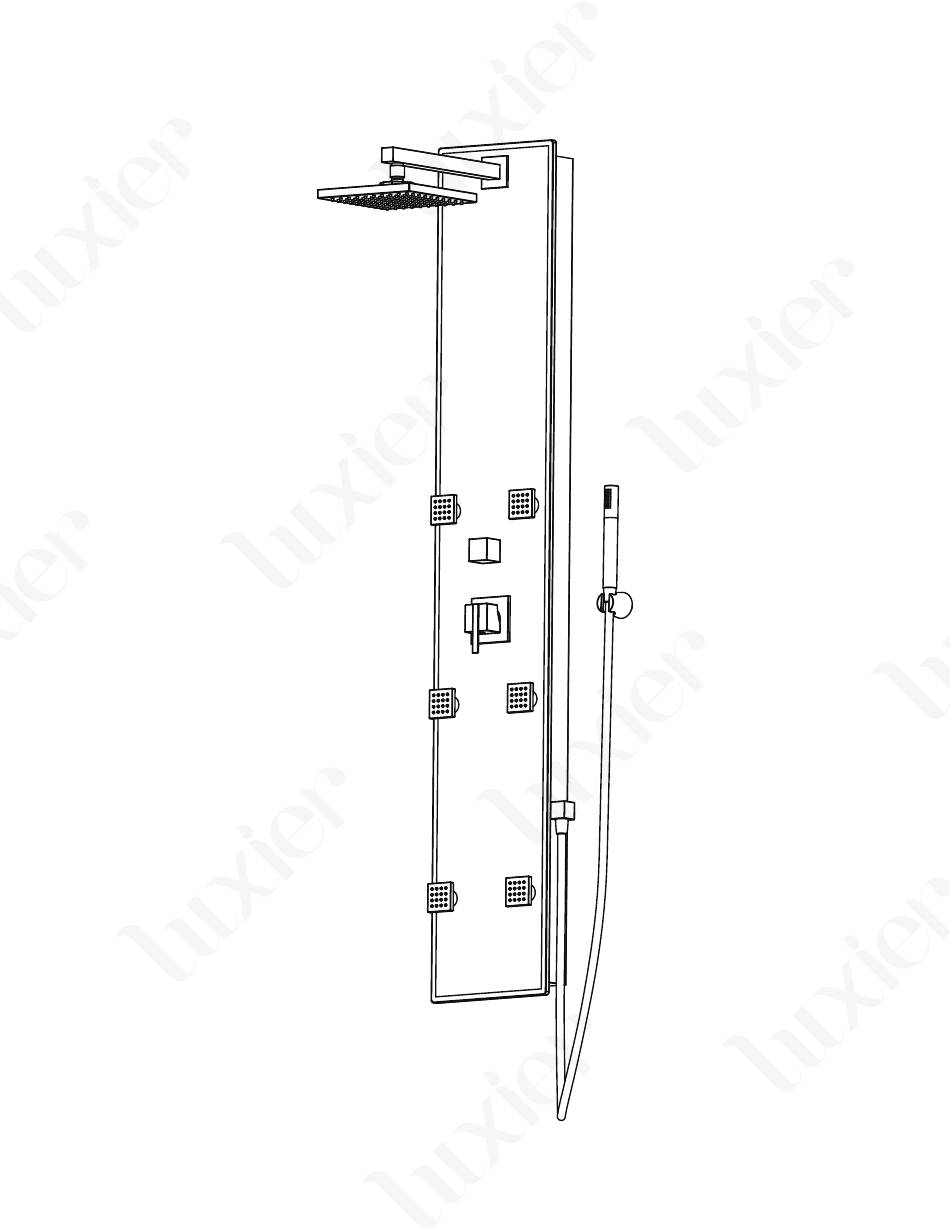

- Page 3 - 8” chrome square ABS rainfall shower head - 6 adjustable angle brass massage jets with 16 nozzles on each jet 250mm 350mm 10” 13.78” 170mm 6.69” 1,500mm 59.05” 800mm 31.50” 280mm 11.02” Technical Data Recommended Operating Pressure: 50 - 80 PSI Luxier SP01-GS Rev. A 122013...
- Page 4 06. Wall Mount Holder 07. Hand Shower Hose 08. Hand Shower Connector 09. O-ring 10. Rubber Gasket 11. Water Supply Connector 12. Screws x 6 13. Mounting Brackets x 2 14. Wall Anchors x 6 Luxier SP01-GS Rev. A 122013...
- Page 5 Mark the positions of the 2 brackets on the wall and set a side the panel. (NOTE: The distance between the two brackets should be 31.50” or 800mm) 800mm 31.5” Luxier SP01-GS Rev. A 122013...
- Page 6 6. Apply thread sealant tape to the threading on the shut off valves before connect both hot and cold water supply hoses to the valves. Turn on the valves and check all connections for possible leaks. Luxier SP01-GS Rev. A 122013...
- Page 7 9. Place the hand shower cradle at desired location (preferably on the right side of the panel) and follow step 4 when drilling and mounting the cradle. Luxier SP01-GS Rev. A 122013...
- Page 8 6. When using spray cleaners, spray fi rst onto a soft cloth or sponge. Never spray directly onto the faucet as droplets can enter openings and gaps and cause damage. 5. After cleaning, rinse thoroughly with clean water to remove any cleaner residue. Luxier SP01-GS Rev. A 122013...
