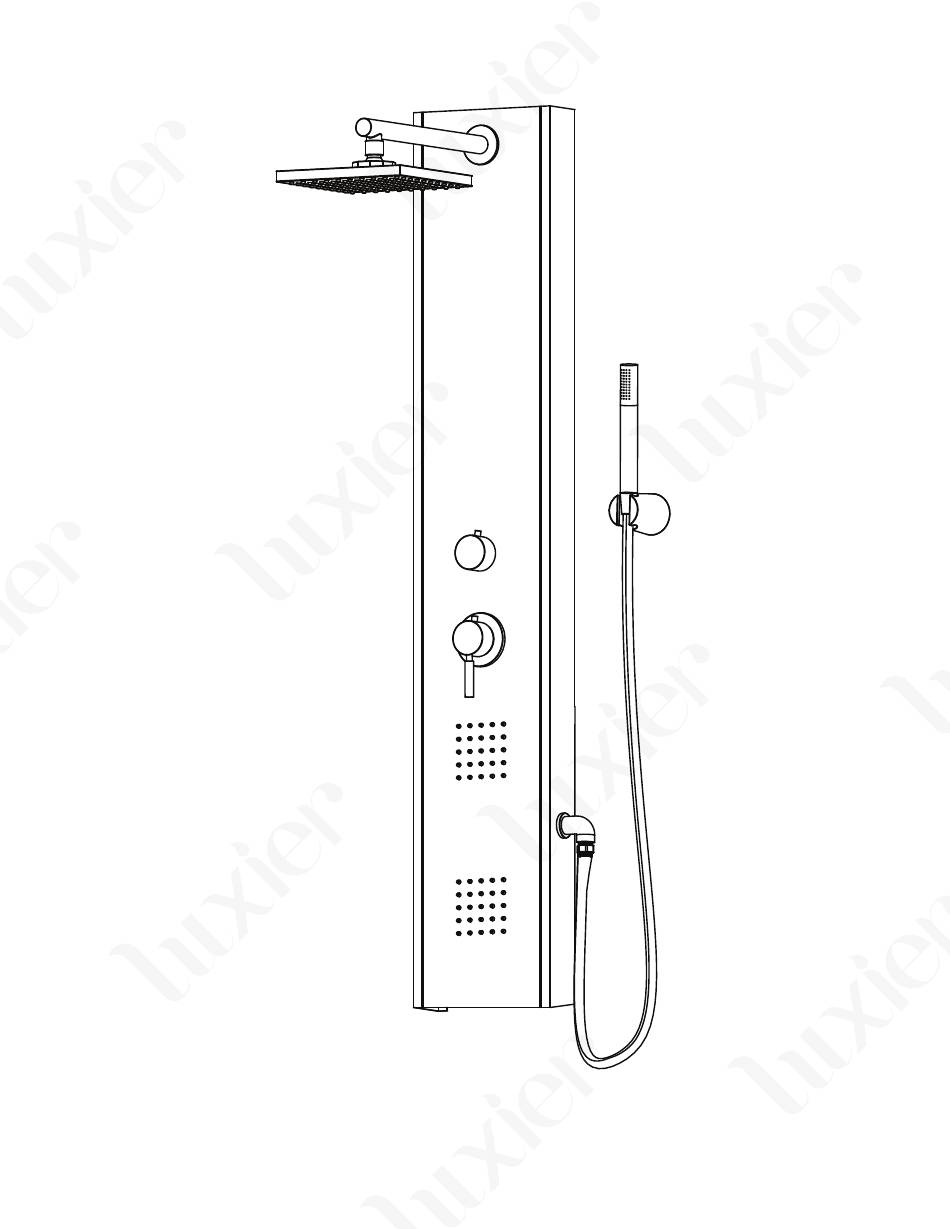

Luxier SP08-SS
Features
- Stunning stylish European inspired design
- Elegant silver stainless steel & Aluminum Two Tone Finish
- Durable stainless steel frame construction
- Horizontal massage jets with 50 nozzles
- 8" chrome square ABS rainfall shower head with 100 Nozzles
- 3 stage shower functions (Rainfall, Massage Spray, Hand Shower)
- Single function control. One water feature at a time.
Luxier
1
SP08-SS Rev. A2 092016

Advertisement

loading
Need help?

Need help?

Do you have a question about the SP08-SS and is the answer not in the manual?

Questions and answers

Related Manuals for Luxier SP08-SS

Summary of Contents for Luxier SP08-SS

  • Page 1 - Horizontal massage jets with 50 nozzles - 8” chrome square ABS rainfall shower head with 100 Nozzles - 3 stage shower functions (Rainfall, Massage Spray, Hand Shower) - Single function control. One water feature at a time. Luxier SP08-SS Rev. A2 092016...
  • Page 2 Should a malfunction occur within the warranty period, Luxier USA will, as its option, (1) repair or replace the defective part(s) or product(s) at no charge; (2) issue a refund of the original purchase price of the product(s) (Valid within 30 days from the date of purchase);...
  • Page 3 An outlet box such as the Sioux Chief Ox Box 696-G2001MF, 696-G2303MF, or 696-2403MF is recommended to expedite the installation process of the shut off valves. (NOTE: additional parts such as brass reducer / adapters are required but not included with this product) Luxier SP08-SS Rev. A2 092016...
  • Page 4 NOTE: This distance vary by models, always take the actual measurement from the shower panel) (This is the distance from the oor to the bottom edge of the shower panel) Reference Model Height is 5’ 8” Luxier SP08-SS Rev. A2 092016...
  • Page 5 Recommended Operating Pressure: 50 - 80 psi Approx. Flow Rate: 3.07 gpm at 80 psi 220mm 340mm 8.86” 13.39” 1250mm 49.21” 750mm 29.53” 535mm 21.06” 245mm 195mm 9.65” 7.68” 70mm *All Measurements are Approximate 2.76” Luxier SP08-SS Rev. A2 092016...

  • Page 6: Parts List

    11. Rubber Washer 12. Elbow Connector 13. Locking Nut 14. Hand Shower Water Connector 15. Rubber Washer 16. Hand Shower Hose 17. Screws X 4 18. Mounting Brackets X 2 19. Wall Anchors X 4 Luxier SP08-SS Rev. A2 092016...

  • Page 7: Installation

    3. Mark the positions of the 2 brackets on the wall and set a side the panel. (NOTE: The distance between the two brackets should be 29.53” or 750mm) 750 mm 29.53” Luxier SP08-SS Rev. A2 092016...
  • Page 8 6. Apply thread sealant tape to the threading on the shut off valves before connect both hot and cold water supply hoses to the valves. Turn on the valves and check all connections for possible leaks. Luxier SP08-SS Rev. A2 092016...
  • Page 9 8. Attache shower head. 9. Connect hand shower hose to the main panel body. Attach the hand shower to the hose. (NOTE: Install the rubber washer to prevent leak.) Luxier SP08-SS Rev. A2 092016...

  • Page 10: Operation

    5. After cleaning, rinse thoroughly with clean water to remove any cleaner residue. 6. Wipe dry with soft cloth to keep shower panel surface spot free. Luxier SP08-SS Rev. A2 092016...
