Summary of Contents for Luxier SP22-SS

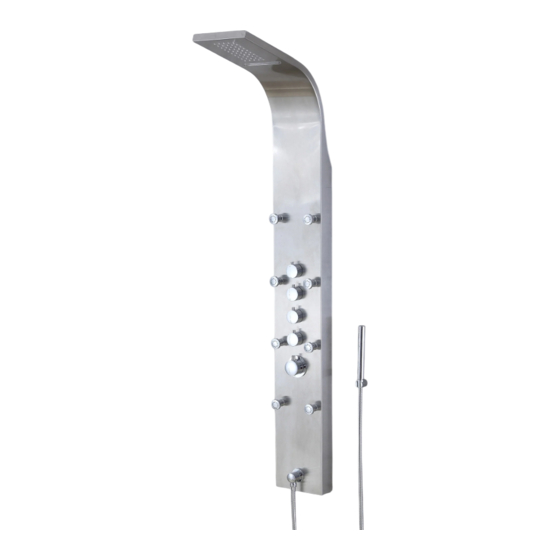

- Page 1 Luxier SP22-SS Features - Stunning stylish European inspired design - Durable stainless steel frame construction - 8 body massage jets - 4 stage shower functions (Rainfall, Waterfall, Massage Spray, Hand Shower) - Contemporary brass hand shower Luxier SP22-SS Rev. A2 092016...
- Page 2 Should a malfunction occur within the warranty period, Luxier USA will, as its option, (1) repair or replace the defective part(s) or product(s) at no charge; (2) issue a refund of the original purchase price of the product(s) (Valid within 30 days from the date of purchase);...
- Page 3 An outlet box such as the Sioux Chief Ox Box 696-G2001MF, 696-G2303MF, or 696-2403MF is recommended to expedite the installation process of the shut off valves. (NOTE: additional parts such as brass reducer / adapters are required but not included with this product) Luxier SP22-SS Rev. A2 092016...
- Page 4 NOTE: This distance vary by models, always take the actual measurement from the shower panel) (This is the distance from the oor to the bottom edge of the shower panel) Reference Model Height is 5’ 8” Luxier SP22-SS Rev. A2 092016...
- Page 5 Technical / Flow Rate Data Recommended Operating Pressure: 50 - 80 psi Approx. flow rate: 3.38 gpm at 80 psi 200mm 495mm 7.87” 19.49” 1550mm 61.02” 800mm 31.5” 480mm 18.9” 260mm 10.24” 72.5mm 2.85” *All Measurements are Approximate Luxier SP22-SS Rev. A2 092016...
-
Page 6: Parts List
02. Hand Shower 03. Wall Mount Hand Shower Cradle 04. O rings 05. Hand Shower Hose 06. Hand Shower Water Connector 07. Screws X 4 08. Mounting Brackets X 2 09. Wall Anchors X 4 Luxier SP22-SS Rev. A2 092016... -
Page 7: Installation
(NOTE: Before installing the wall anchors, use a small piece of painters tape or masking tape over the drill area. This will prevent damages to the tile) 1” 3. Secure the mounting brackets to the wall. Luxier SP22-SS Rev. A2 092016... - Page 8 6. Connect hand shower hose to the main panel body. Attach the hand shower to the hose. (NOTE: Install the rubber washer to prevent leak.) Luxier SP22-SS Rev. A2 092016...
-
Page 9: Operation
5. After cleaning, rinse thoroughly with clean water to remove any cleaner residue. 6. Wipe dry with soft cloth to keep shower panel surface spot free. Luxier SP22-SS Rev. A2 092016...
