13. Grab the cord from both sides and remove it from the
knurled roller wheel.
14. Drag out the end of the cord (without spring) above the
Recoater's roller. At first the mounting plate, then the
ending, through the gap between the rotary shaft and
Recoater housing. Be careful not to touch the roller (fig.
12.14).
15. Remove the second plate (with spring) from the socket.
16. Use a clean cloth to wipe the Recoater rotary shaft.
Rotate the roll during the cleaning.
17. Take the new Recoater cord and stretch it before
mounting.
18. Pre-install the plate with the spring on the Print Bed side. Be sure that the spring is fitted into the hole behind the plate.
Do not tighten the screws to the end of the range (fig. 12.15).
19. Drag the other end of the Recoater cord above the
Recoater roller.
20. Wind the Recoater cord on the roller tracing wheel (fig.
12.15).
21. Check if anything is blocking the slide of the cord.
22. Pull the cord to tense the spring.
23. Mount the cord using screws on the opposite side (fig.
12.16).
24. Tighten all the screws from both sides. If access to the
screws is problematic, use the steering arrows to move
the Recoater in the right direction.
25. After mounting the cord use steering arrows to move
the Recoater.
26. Check if the rotary shaft is rolling properly. Correct
installed cord is moving slightly right and left on the
bearing system.
27. Reinstall the black Recoater cover (fig. 12.17).
28. Tighten the screws securing the black Recoater cover.
29. Good job. The maintenance timer will reset to zero.

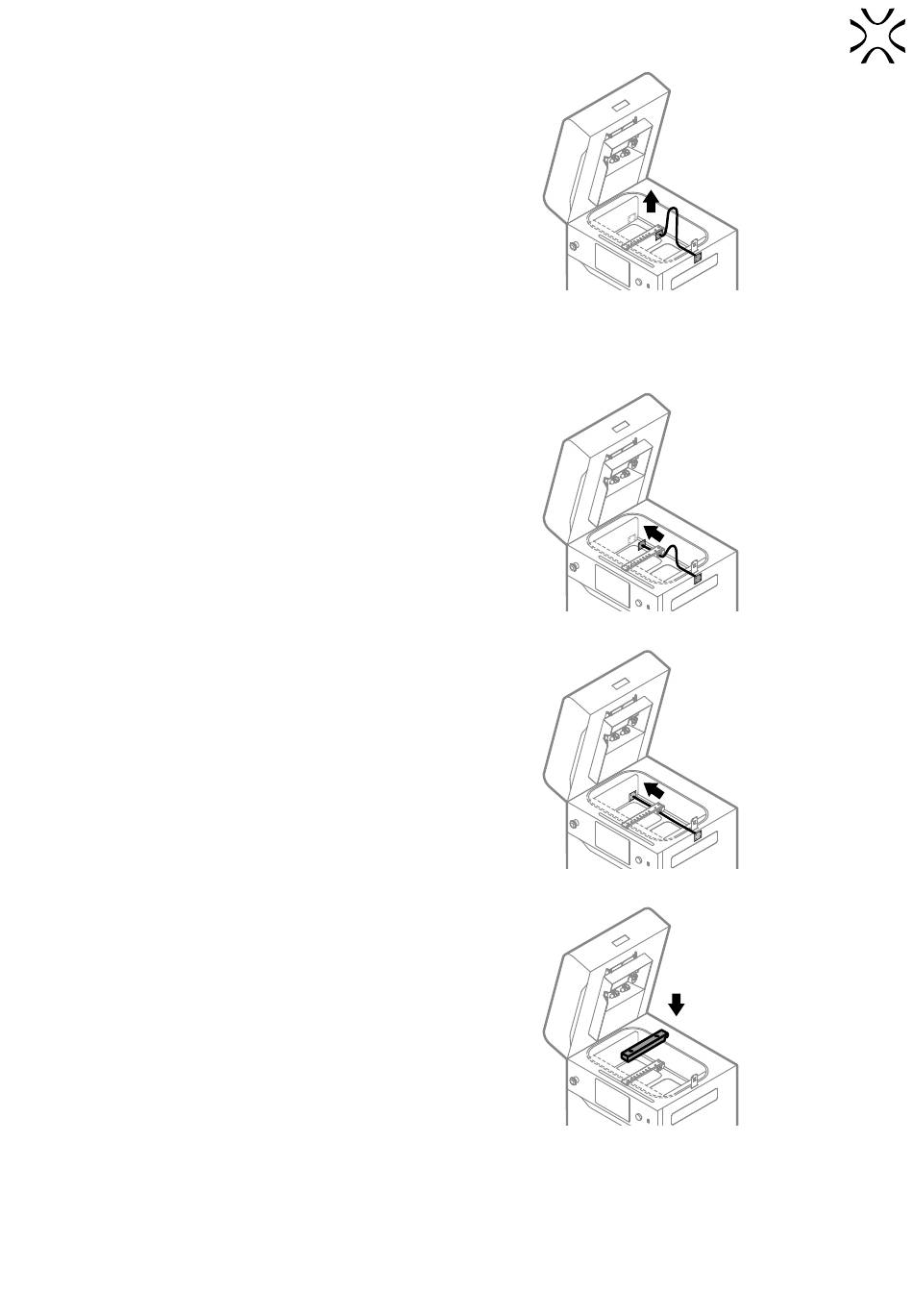

Fig. 12.14 Drag out the plate without spring
above the Recoater's roller.
Fig. 12.15 Installing a new Recoater cord.
Fig. 12 16. Installing a new Recoater cord.
Fig. 12.17 Reinstall the black Recoater cover
and tighten the screws.
