Printer Safety Plate - SINTERIT LISA X Translation Of The Original User Manual

26
MAGNETIC FASTENERS
27
T-TYPE PUSH-IN FITTING
WITH A PRESSURE SENSOR
28
FILTER AIR DEHYDRATOR
29
ROTAMETER
30
THROTTLE CHECK VALVE

3.5 PRINTER SAFETY PLATE

Manufacturer
Sinterit sp. z o.o. ul. Nad Drwiną 10 bud. B3, 30-741 Kraków, Poland
www.sinterit.com support@sinterit.com
IEC Protection Class
Class 1
IP Code
Complies with 21 CFR 1040.10 and 1040.11 except for conformance with IEC 60825-1 Ed.3., as described in Laser Notice No. 56, dated May 8, 2019.
21
WI-FI ANTENNA
22
ETHERNET PORT
23
GAS INLET NIPPLE
(QUICK CONNECT FITTING)
24
POWER SOCKET
25
POWER SWITCH (ON/OFF)

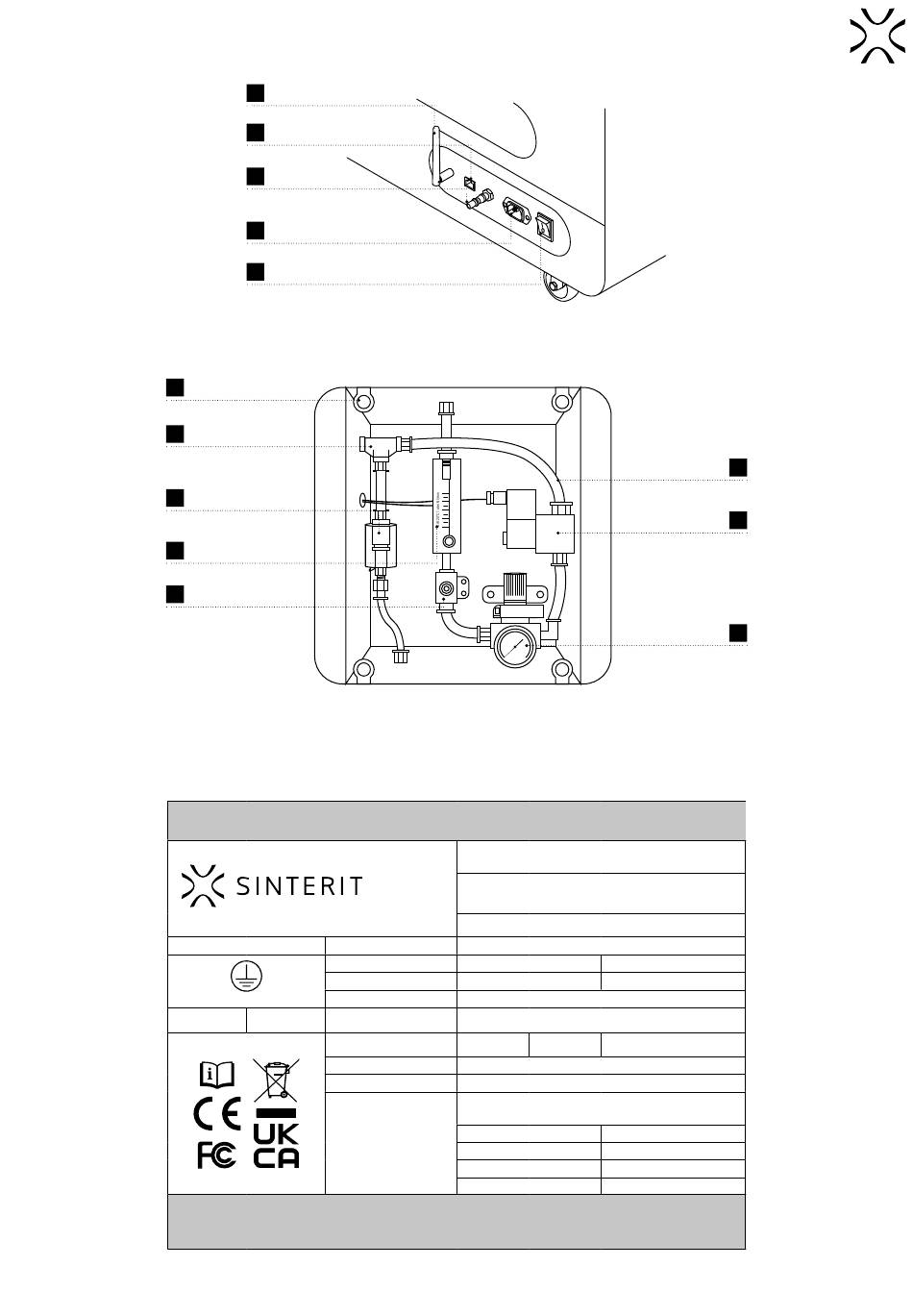

Fig. 3.4 View of the back of the printer.
Fig. 3.5 View of the inert gas control system.
DO NOT REMOVE THIS LABEL!
Machine type
Dimensions
Total weight
Power consumption
IP20
AC current
Short-circuit
current rating
Contains devices FCC
Laser product class
Embedded laser
product class
WARNING! Read and understand operator's manual and all other safety instructions before using this machine.
Failure to follow operating instructions could result in serious injury.
10
8
6
4
2
Lisa X
Name
Serial number
Manufactured Made in EU / POLAND
SELECTIVE LASER SINTERING 3D PRINTER
650 x 610 x 1200 [mm] 25.6 x 24.0 x 47.2 [in]
145 [kg] 319 [lbs]
190-240 [V] AC, 50-60 [Hz], 1.65 [kW]
8 [A] / 230 [V] AC
Number
6 [kA] 1
of phases
FCC ID: 2ABCB-RPICM4
CLASS 1 IR LASER PRODUCT INVISIBLE LASER RADIATION
CLASS 4 IR LASER PRODUCT
INVISIBLE LASER RADIATION
wavelength λ = 976 ± 3 [nm]
beam divergence θ = 13°
beam output CW (CONTINUOUS WAVE)
maximum power 30 [W]
33
PNEUMATIC TUBING
32
PNEUMATIC
SOLENOID VALVE
31
PRESSURE REDUCING
REGULATOR WITH
BUILT-IN MANOMETER
Sinterit LISA X User Manual | 14
