TrailFX A8239B/S Manual

6" oval bend end nerf bar
Hide thumbs
1
2
3
4

Advertisement

Quick Links

Download this manual
Fits: 2009-2014
REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE PRESENT.
READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION.
DO NOT OVER TORQUE. STANDARD OPERATING LOAD FOR TIGHTEN
BODY MOUNT NUTS & BOLTS VARIES FROM 45 TO 65 FOOT POUND.

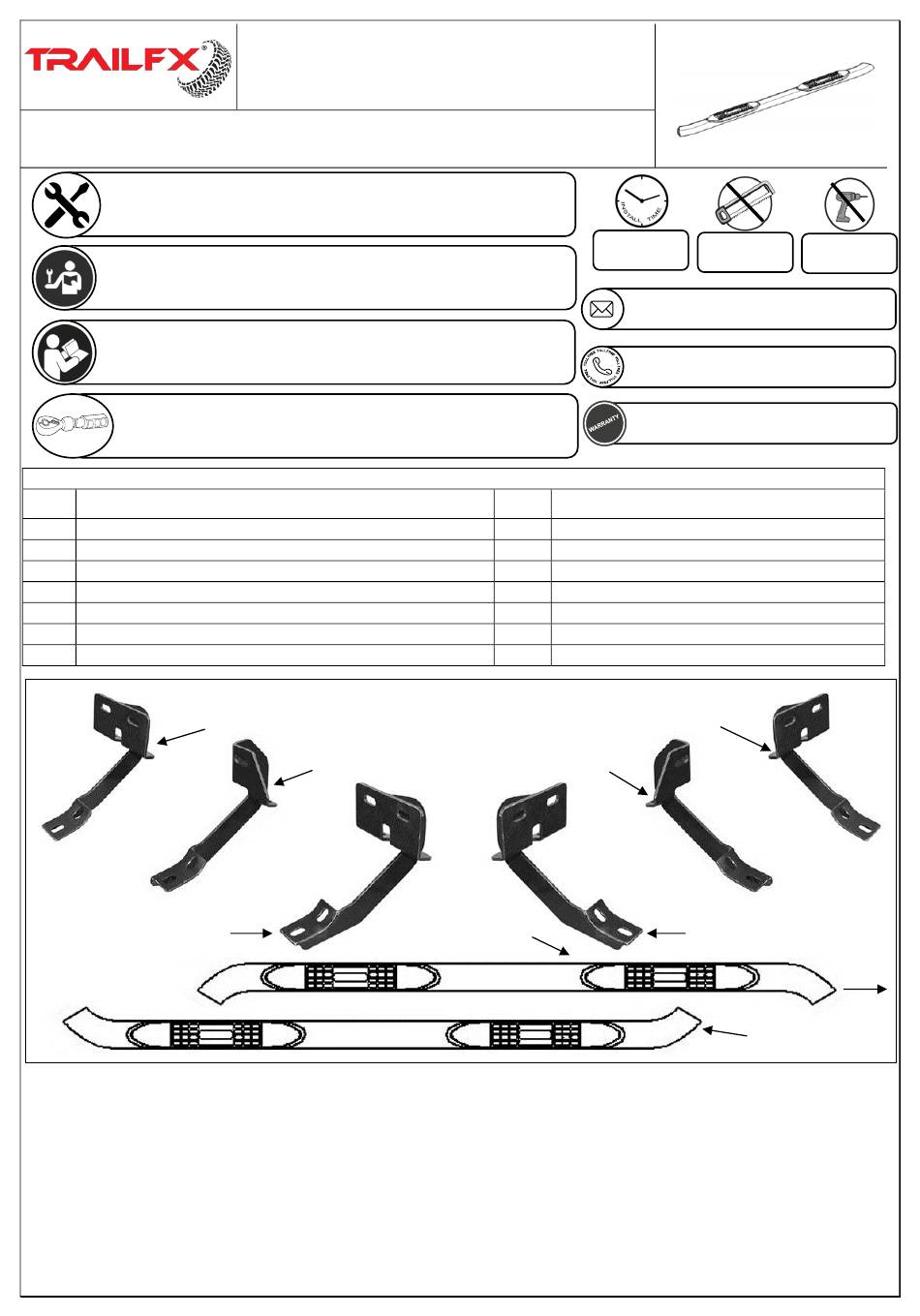

Qty
1
Driver/Left Side Bar
1
Passenger/Right Side Bar
2
Driver/Left Front-Passenger/Right Rear Mounting Brackets
2
Passenger/Right Front-Driver/Left Rear Mounting Brackets
1
Driver/Left Center Mounting Bracket
1
Passenger/Right Center Mounting Bracket
Passenger/Right Rear
Mounting Bracket
Passenger/Right Front
Mounting Bracket
INSTALLATION PROCEDURE:
1.
Starting on the driver side of the vehicle, locate the (2) holes in the bottom of the body panel, (pinch weld). Next locate
the rectangular opening and (2) small holes in the inner body panel directly above the holes in the pinch weld, (Figure
1). NOTE: The holes in the inner panel may be covered with sealing tape or insulation.
2.
Slide (1) 8mm Clip Nut into the rectangular opening with the nut towards the inside. Line up the threaded nut on the clip
with the round hole, (Figure 1). Repeat to install 2nd 8mm Clip Nut in remaining hole location.
Page 1 of 4
6" Oval Bend End Nerf Bar
Part No. A8239B/S
Ford F-150 Crew Cab
Part Description
Passenger/Right Center
Mounting Bracket
Driver/Left Sidebar
PARTS LIST:
Qty
10
8mm Deep Clip Nuts
10
8-1.25mm x 30mm Hex Bolts
22
8-1.25mm x 25mm Hex Bolts
10
8mm x 28mm OD x 3mm Large Flat Washers
32
8mm x 24mm OD x 2mm STD Flat Washers
32
8mm Lock Washers
10
8mm Hex Nuts
Driver/Left Center
Mounting Bracket
www.TrailFX.com
Cutting Not
60-180 min
Required
support@trailfx.com
1 866 638 4870
POLISHED STAINLESS STEEL – LIMITED LIFETIME
POWDER COATED BLACK – 3 YEARS
Part Description
Driver/Left Rear
Mounting Bracket
Driver/Left Front
Mounting Bracket
Passenger/Right Sidebar
Drilling Not
Required
Front
Rev012319

Advertisement

loading
Need help?

Need help?

Do you have a question about the A8239B/S and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for TrailFX A8239B/S

Summary of Contents for TrailFX A8239B/S

  • Page 1 6" Oval Bend End Nerf Bar Part No. A8239B/S Fits: 2009-2014 Ford F-150 Crew Cab Cutting Not Drilling Not 60-180 min Required Required REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE PRESENT. support@trailfx.com READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION.
  • Page 2 Partially attach the driver side Mounting Bracket to the (2) Clip Nuts with the included (2) 8mm x 30mm Hex Bolts, (2) 8mm Lock Washers and (2) 8mm x 28mm Large Flat Washers, (Figure 2). Depending on model and year, the brake cable may be run on the inside or outside of the Bracket.
  • Page 3 Driver Side Installation Pictured 8mm x 30mm Hex Bolts 8mm Lock Washers 8mm x 28mm Large Flat Washers 8mm x 25mm Hex Bolt (2) 8mm STD Flat Washers 8mm Lock Washer 8mm Hex Nut Front (Fig 4) Driver/left center Bracket installed...
  • Page 4 Product not installing properly. Ensure make model year, cab length and bed size of your vehicle is listed in the application. All installation steps are followed correctly. Check out these other TrailFX Products!! www.TrailFX.com Keystone Automotive Operations Inc. (KAO) warrants this product to be free of defects in material and workmanship at the time of purchase by the original retail consumer.
