Fits: 2019-Current SILVERADO/SIERRA 1500
2020-Current SILVERADO/SIERRA 2500-3500 CREW CAB
(INCL. DIESEL MODELS WITH DEF TANKS)
REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE PRESENT.
READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION.
DO NOT OVER TORQUE. STANDARD OPERATING LOAD FOR TIGHTEN
BODY MOUNT NUTS & BOLTS VARIES FROM 45 TO 65 FOOT POUND.
Qty
Part Description
1
Driver/Left Sidebar
1
Passenger/Right Sidebar
8
Mounting Brackets
16
8mmx 25mm Combo Bolts
PROCEDURE:
REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE PRESENT. READ INSTRUCTIONS CAREFULLY
BEFORE STARTING INSTALLATION. ASSISTANCE IS RECOMMENDED.
1. Start the installation under the Passenger/Right side of the vehicle.
a. For "Early" 2019 models, locate the 6 plugs along the bottom edge of the body. Mounting Brackets
will bolt to the 1st, 3rd, 4th and 6th threaded mounting holes, (Figure 1).
b. For "Late" 2019 models, all (4) mounting locations will be used.
2. Remove the plastic plugs from the Passenger/Right front mounting location. Select (1) Mounting Bracket.
Attach the Mounting Bracket to the factory threaded holes with (2) 8mm Hex Bolts, (2) 8mm Lock Washers
and (2) 8mm Flat Washers, (Figures 2 & 3). Do not tighten hardware at this time.
Page 1 of 4

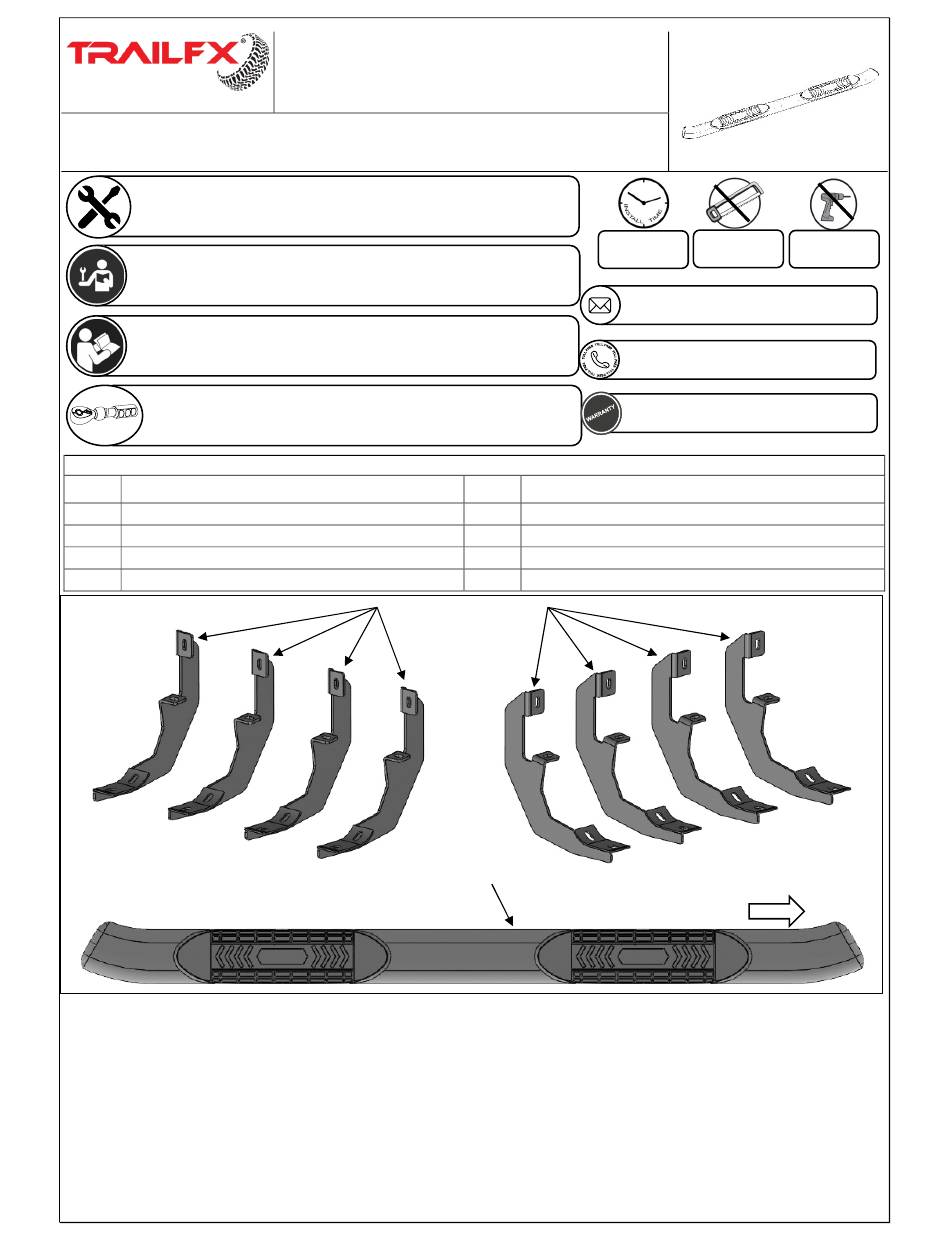

6" Oval Bend End Sidebar
Part No. A8252S /B

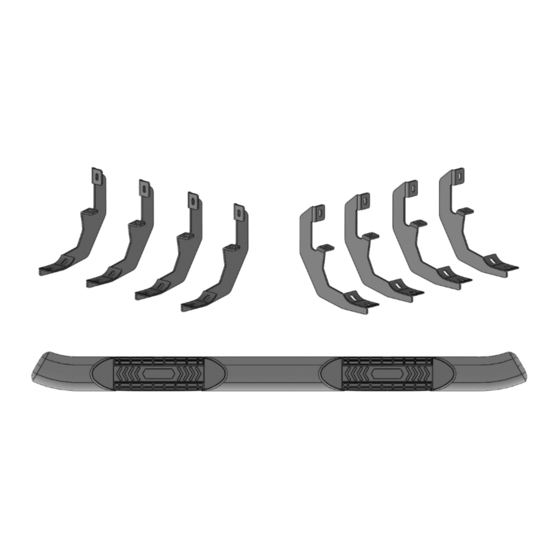

PARTS LIST:
Qty
16
16
16
(8) Mounting Brackets
Passenger/Right Sidebar
60-180 min
support@trailfx.com
1 866 638 4870
POLISHED STAINLESS STEEL – LIMITED LIFETIME
POWDER COATED BLACK – 3 YEARS
Part Description
8mm x 30mm Hex Bolts
8mm Lock Washers
8mm x 24mm OD x 2mm Flat Washers
www.TrailFX.com
Cutting Not
Drilling not
Required
Required
Front
Rev120720
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for TrailFX A8252S
Summary of Contents for TrailFX A8252S
- Page 1 6" Oval Bend End Sidebar Part No. A8252S /B Fits: 2019-Current SILVERADO/SIERRA 1500 2020-Current SILVERADO/SIERRA 2500-3500 CREW CAB (INCL. DIESEL MODELS WITH DEF TANKS) Cutting Not Drilling not 60-180 min Required Required REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE PRESENT.
- Page 2 3. Repeat Steps 1 & 2 to attach the 2nd, 3rd and Rear Mounting Brackets along the rocker panel, (Figures 4— 7). Do not tighten hardware at this time. 4. Select the Passenger/Right Sidebar. Carefully place Sidebar on the brackets. IMPORTANT: Do not slide or rotate Sidebar on cradles, or damage to the finish may result.
- Page 3 Passenger/Right side Installation Pictured Front (Fig 5) Passenger/Right 2nd mounting location Front (Fig 6) Passenger/Right 3rd mounting location Front Front (Fig 7) Passenger/Right rear mounting location (2) 8mm Combo Bolts (Fig 8) Attach Passenger/Right Sidebar to the Mounting Brackets...
- Page 4 Ensure make model year, cab length and bed size of your vehicle is listed in the application. All installation steps are followed correctly. www.TrailFX.com Check out these other TrailFX Products!! Keystone Automotive Operations Inc. (KAO) warrants this product to be free of defects in material and workmanship at the time of purchase by the original retail consumer.
