Fits: 2010-Current
ASSISTANCE IS RECOMMENDED.
REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE PRESENT.
READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION.
DO NOT OVER TORQUE. STANDARD OPERATING LOAD FOR TIGHTEN
BODY MOUNT NUTS & BOLTS VARIES FROM 45 TO 65 FOOT POUND.
Qty
1
Driver/Left Sidebar
1
Passenger/Right Sidebar
1
Driver Front Mounting Bracket
1
Passenger Front Mounting Bracket
2
Driver Center/Rear Mounting Brackets
2
Passenger Center/Rear Mounting Brackets
3
Support Brackets (DS Front & PS Center/Rear)
3
Support Brackets (PS Front & DS Center/Rear)
6
8mm Nut/Bolt Plates
6
8mm Plastic Retainers
Passenger/Right
Center and Rear
Support Brackets
Passenger/Right
Front Bracket
Passenger/Right Front Support Bracket
Note front step
pad is closer to
front end of tube
Page 1 of 7

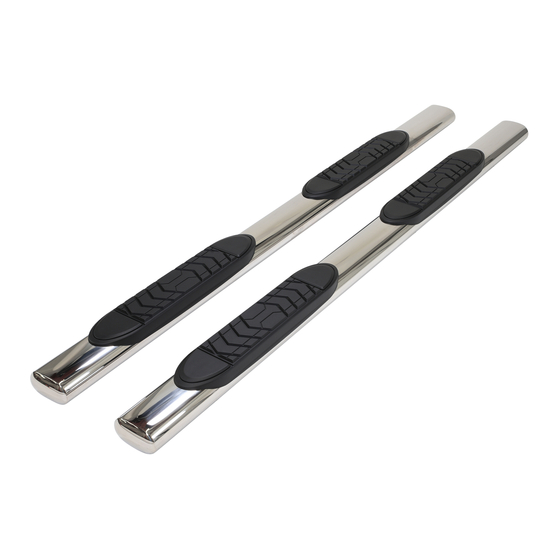

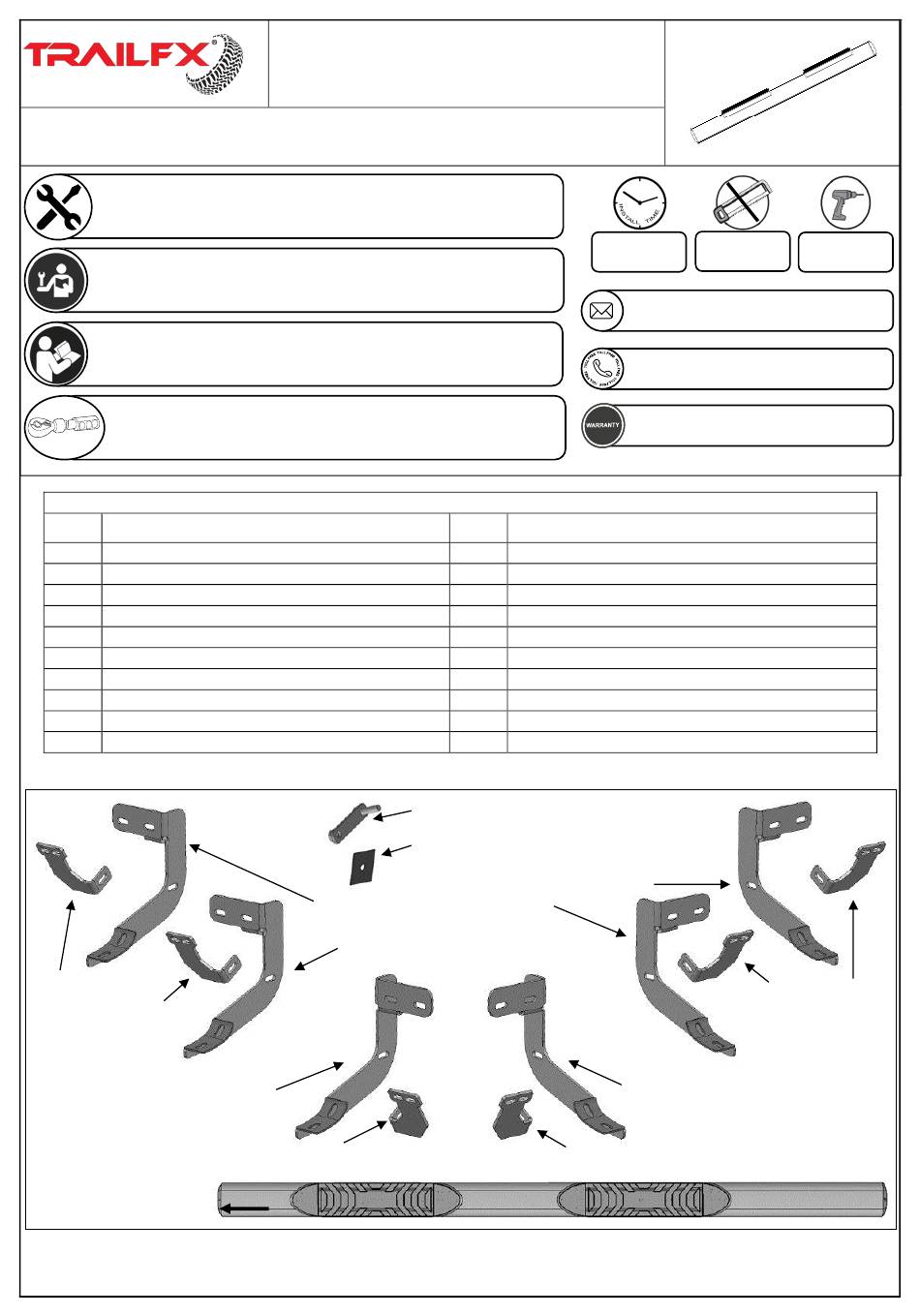

5'' Oval Straight Side Bar
Part No. A7057S/B
Dodge Ram 2500/3500 Mega Cab
Part Description
Passenger/Right Rear and
Center Mounting Brackets
Front
PARTS LIST:
Qty
18
8mm-1.25 x 30 Hex Bolts
24
8mm x 24mm x 2mm Flat Washers
12
8mm Lock Washers
6
8mm Hex Nuts
6
8mm Nylon Lock Nuts
12
8mm-1.25 x 25mm Combination Hex Bolts
12
6mm x 25mm Hex Bolts
24
6mm x 22mm x 2mm Flat Washers
12
6mm Nylon Lock Nuts
(6) 8mm Bolt x 8mm Nut Plates
(6) Plastic Retainers
Driver/Left Center and Rear
Mounting Brackets
Driver/Left Front Support Bracket
Cutting Not
60-180 min
Required
support@trailfx.com
1 866 638 4870
POLISHED STAINLESS STEEL – LIMITED LIFETIME
POWDER COATED BLACK – 3 YEARS
Part Description
Driver/Left Center
and Rear Support
Brackets
Driver/Left Front
Mounting Bracket
www.TrailFX.com
Drilling
Required
Rev 031318
