Fits:
1999 - Current
1999 – 2004
2001 – Current
1999 – Current
1999 – 2004
2001 – Current
CAN FIT WITH DEF TANKS.
REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE PRESENT.
READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION.
DO NOT OVER TORQUE. STANDARD OPERATING LOAD FOR TIGHTEN
BODY MOUNT NUTS & BOLTS VARIES FROM 45 TO 65 FOOT POUND.
Qty
1
Driver/Left Sidebar
1
Passenger/Right Sidebar
1
Driver/Left Front Mounting Bracket
1
Passenger/Right Front Mounting Bracket
1
Driver/Left Center Support Bracket
1
Passenger/Right Center Support Bracket
1
Driver/Left Center Mounting Bracket
1
Passenger/Right Center Mounting Bracket
Passenger/Right rear
Mounting Bracket
Passenger/Right center
Support Bracket
Passenger/Right front
Mounting Bracket
Page 1 of 6

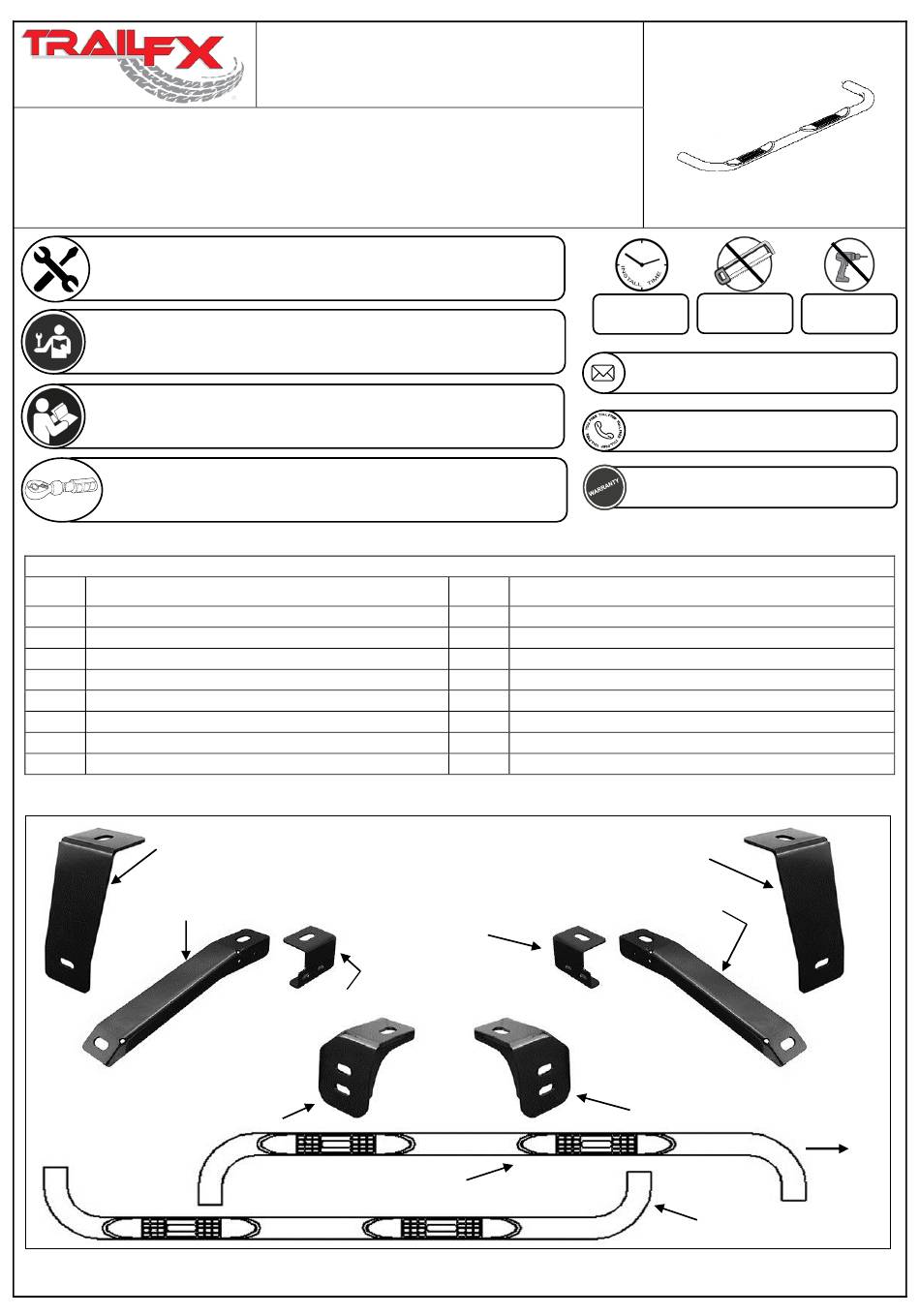

Part No. A0030S/B
Chevrolet Silverado 1500 Extended Cab
Chevrolet Silverado 2500 (LD) Extended Cab
Chevrolet Silverado 2500HD/3500 Regular Cab
GMC Sierra 1500 Regular Cab
GMC Sierra 2500 (LD) Regular Cab
GMC Sierra 2500HD/3500 Regular Cab
Part Description
Passenger/Right
center Mounting
Bracket
Driver/Left Sidebar
3" Side Bar
PARTS LIST:
Qty
1
Driver/Left Rear Mounting Bracket
1
Passenger/Right Rear Mounting Bracket
1/2" x 2" Hex Bolts
4
1/2" Lock Washers
4
1/2" x 1-1/2" OD x 1/8" Large Flat Washers
4
6
8-1.25mm x 25mm Hex Bolts
6
8mm Lock Washers
6
8mm x 24mm x 2mm flat washer
Driver/Left center
Mounting Bracket
Cutting Not
60-180 min
Required
support@trailfx.com
1 866 638 4870
POLISHED STAINLESS STEEL – LIMITED LIFETIME
POWDER COATED BLACK – 3 YEARS
Part Description
Driver/Left rear
Mounting Bracket
Driver/Left center
Support Bracket
Driver/Left front
Mounting Bracket
Passenger/Right Sidebar
www.TrailFX.com
Drilling Not
Required
Front
Rev 010115
