Field
a
Flow Control
a
Modem Control Lines
a. This setting is available only if the 'Manual Serial Settings'-checkbox has been checked.
Press "Save" to update your configuration. You will be asked to press a reboot button in the next view.
After about 20 seconds has passed you can press the start menu field up in the right corner to take you
back to the start page.
Note: The Server Port Number must match the value entered in the Serial/IP Driver.

Password Settings

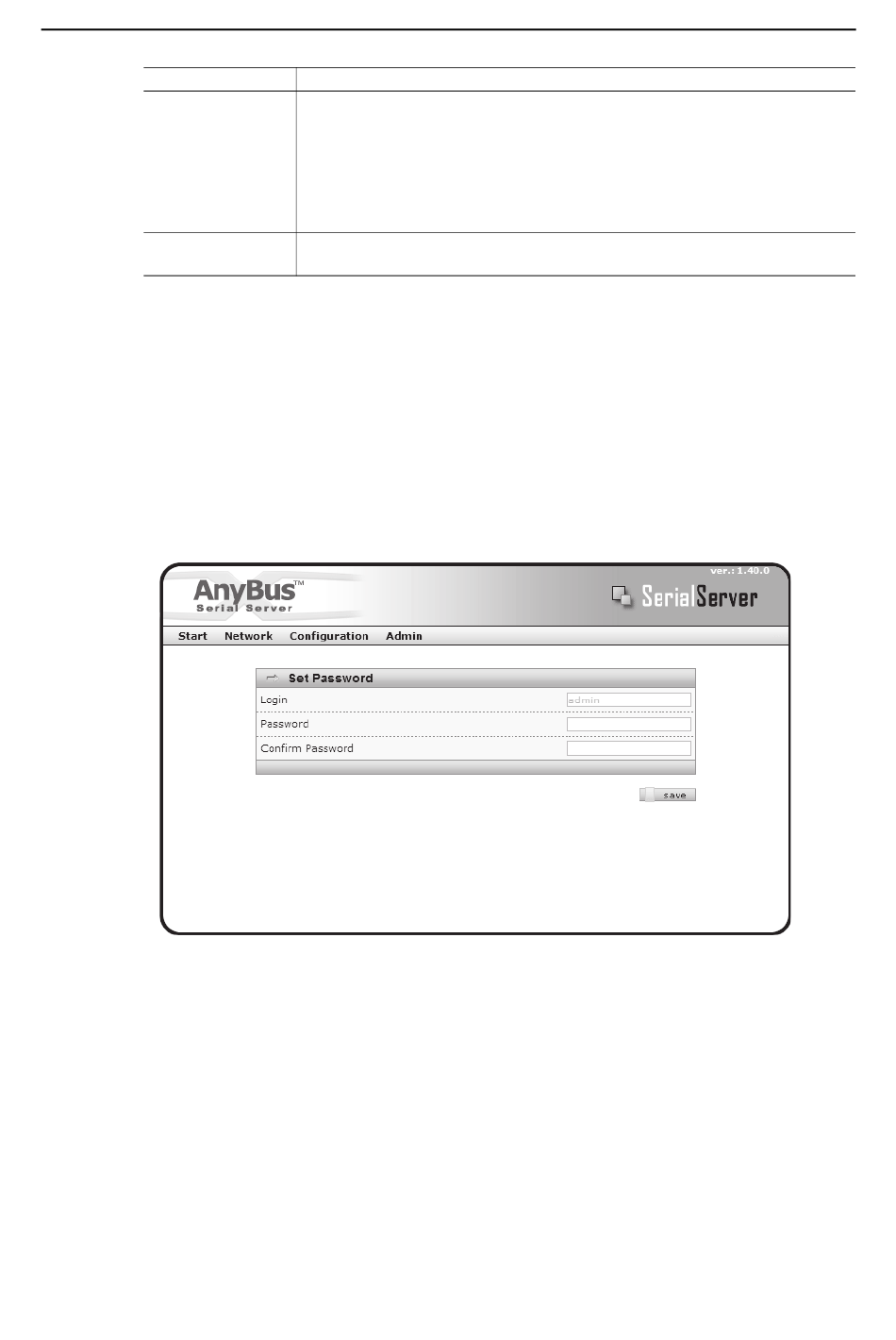

If you press the Admin link you will be presented with the following view.
This screen allows you to change the administrator password for this device. Enter the new password
in the Password box and in the Confirm Password box. Click "Save Password" to change the password.
Description
For the EIA-232 port you can select if you want flow control handled by the UART. If this is
selected then transmit is automatically stopped/continued when serial buffer is full/available.
You can choose between NONE, CTS/RTS and XON/XOFF. NONE disables UART flow con-
trol. If CTS/RTS is selected the two UARTs involved uses two dedicated wires in the serial
cable to control flow. The Serial Server uses RTS when it wants to transmit and gets CTS back
when it is clear to send. Be sure to use a serial cable with these wires connected. If XON/XOFF
is used the remote UART should send characters to signal its buffer state.
If this option is set to 'On', the modem control lines will be taken in account (DCD, DTR).
If set to 'Off', the modem control line states will be ignored.
