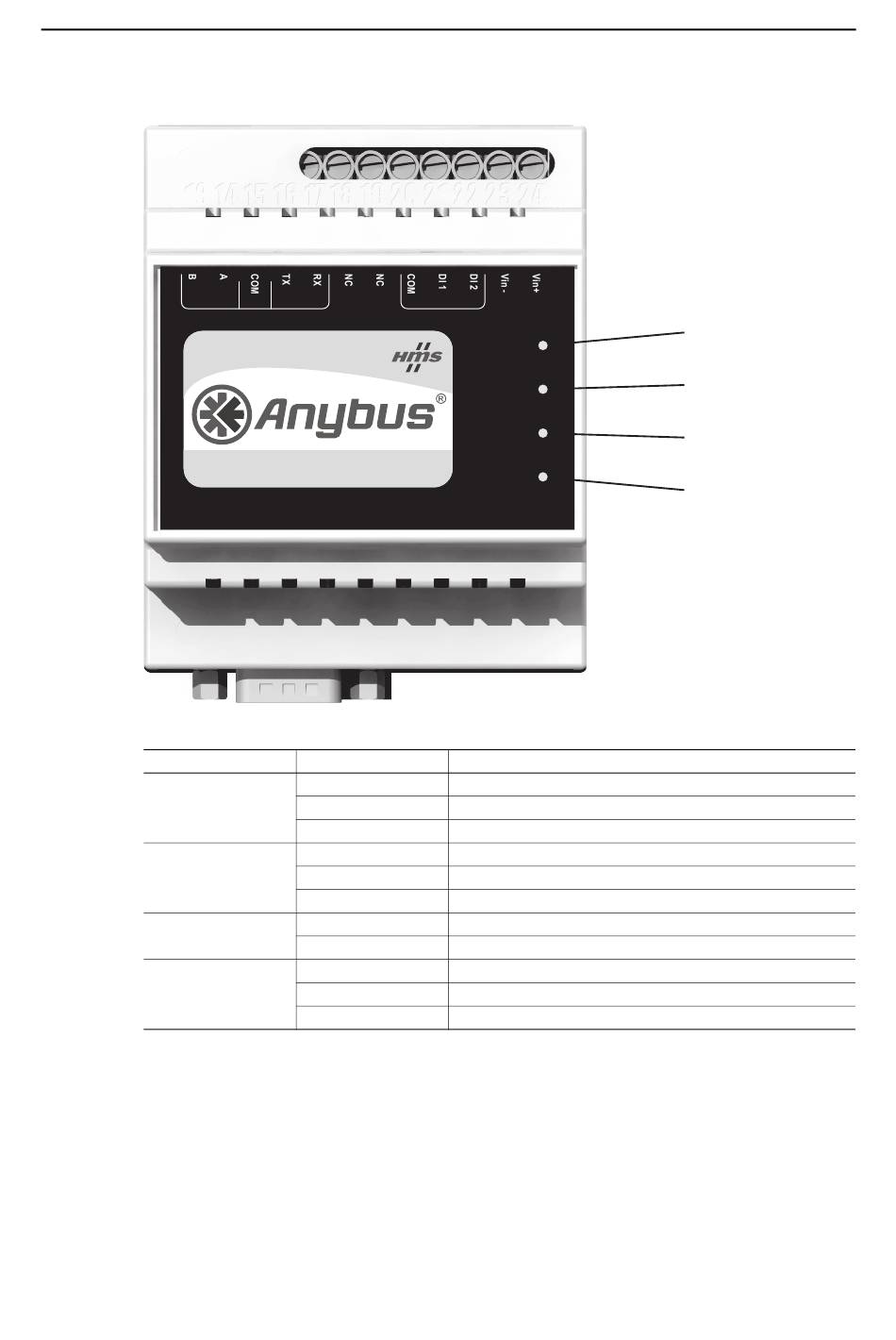

Indicators
RS-485
S E R I A L S E R V E R
RS-232
LED
Module Status
Serial Link Status
LAN Activity
Link 10/100
RS-232
DI
State
Function
Off
No power
Green
Module is running in normal mode
Orange
During boot-up
Green, flashing
Serial Packet receive (on either port)
Red, flashing
Serial Packet transmit (on either port)
Orange
During boot-up
Green, flashing
Ethernet Packet received
Red, flashing
Ethernet Collision detected
Off
No Ethernet Link detected
Green
Ethernet network detected, 10Mbps
Orange
Ethernet network detected, 100Mbps
Status
Serial Link
Activity
Link
ETHERNET
About the Anybus Serial Server 1-5
Status
Serial Link
Activity
Link
