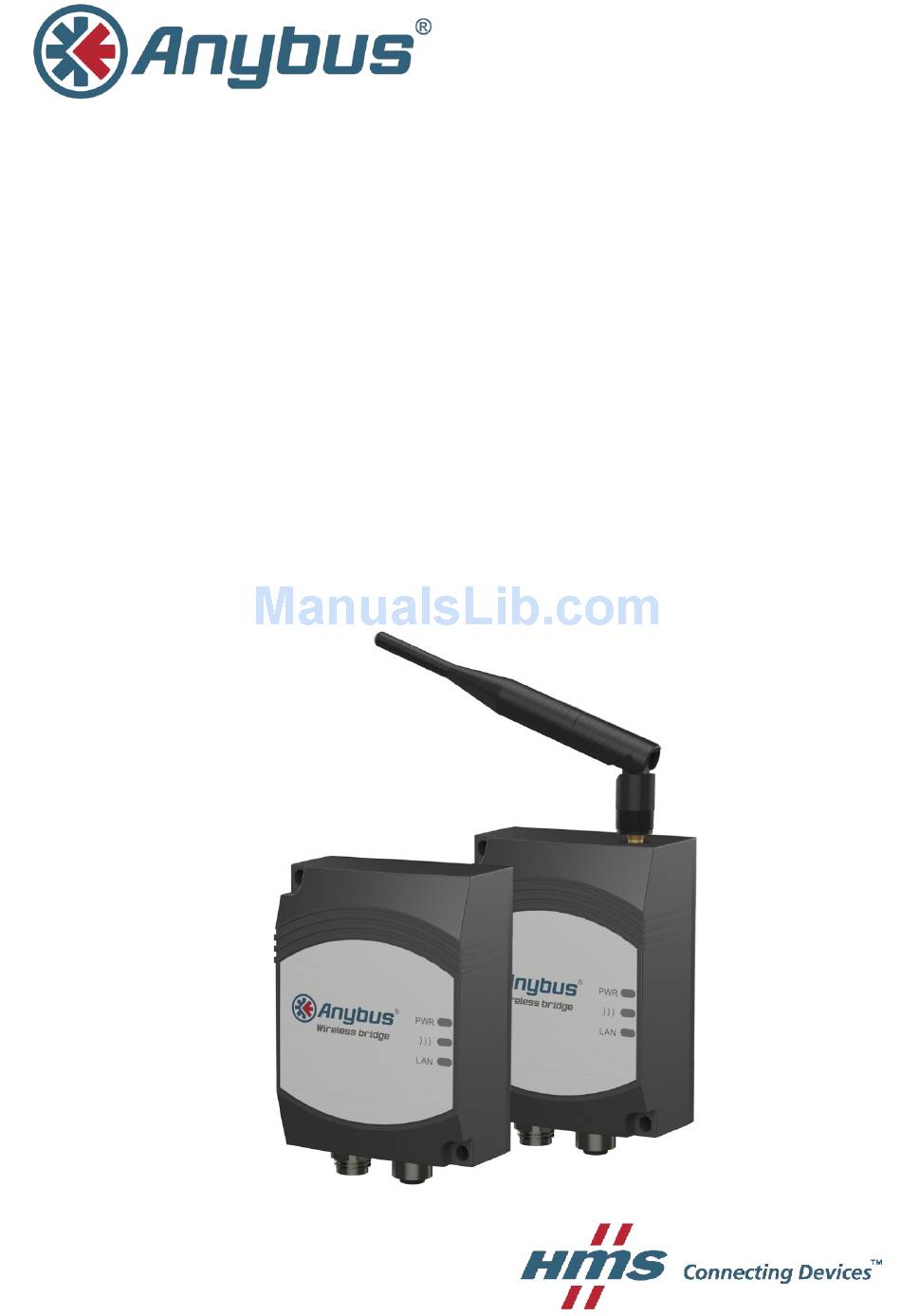

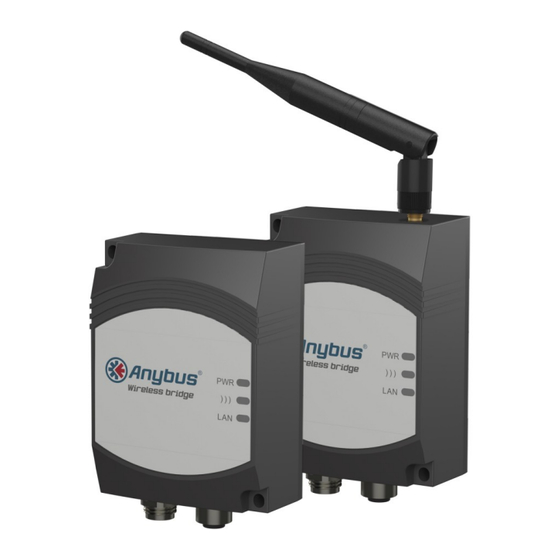

- Page 1 Anybus ® Wireless Bridge Ethernet-Bluetooth ® INSTALLATION GUIDE HMSI-27-203 SP2108 2.2 ENGLISH...
-
Page 2: Important User Information
AB of any inaccuracies or omissions. The data and illustrations found in this document are not binding. We, HMS Industrial Networks AB, reserve the right to modify our products in line with our policy of continuous product development. The information in this document is subject to change without notice and should not be considered as a commitment by HMS Industrial Networks AB. -
Page 3: Installation
Make sure that you have all the necessary information about the capabilities and restrictions of your local network environment before installing the Anybus Wire- less Bridge. Contact your network administrator if in doubt. For optimal reception devices should be oriented front-to-front with a line of sight between them clear of obstructions. - Page 4 Installation 4 (12) Anybus ® Wireless Bridge Installation Guide HMSI-27-203 SP2108 2.2...
-
Page 5: Led Indicators
4 LEDs lit = excellent signal. On the Ac- cess Point model they instead indicate the number of connected clients. The LEDs are also used when selecting a SMART configuration mode. Anybus ® Wireless Bridge Installation Guide... - Page 6 DHCP and be connected directly to the unit, not through a network. The DHCP server will stay enabled until the unit is restarted. PROFINET priority PROFINET network traffic will be prioritized. Anybus ® Wireless Bridge Installation Guide HMSI-27-203 SP2108 2.2...
- Page 7 SMART modes 4–9 cannot be used in the Access Point model. Advanced Configuration Advanced configuration can be carried out using the settings in the built-in web interface and/or by issuing AT commands. For more information, see the Anybus Wireless Bridge User Manual available at www.anybus.com/support. Anybus ®...
- Page 8 When the Wireless Bridges have connected successfully the ))) LED on both units will show a steady blue light. The first unit will have IP address 192.168.0.98 and the second 192.168.0.99. Anybus ® Wireless Bridge Installation Guide HMSI-27-203 SP2108 2.2...
- Page 9 After rebooting, the A-B-C-D LEDs on the ac- cess point will indicate the number of connected clients. For more use cases and advanced configuration examples, see the Anybus Wireless Bridge User Manual available at www.anybus.com/support.
-
Page 10: Technical Data
Networking Profile (PAN), PANU and NAP roles (one connection) Bluetooth security Simple pairing Number of clients Certifications ETSI, R&TTE, FCC/CFR 47 part 15, IC/RSS, MIC (2.4 GHz) , Haz.Loc. Class 1 Div. 2 Anybus ® Wireless Bridge Installation Guide HMSI-27-203 SP2108 2.2... - Page 11 This page intentionally left blank...
