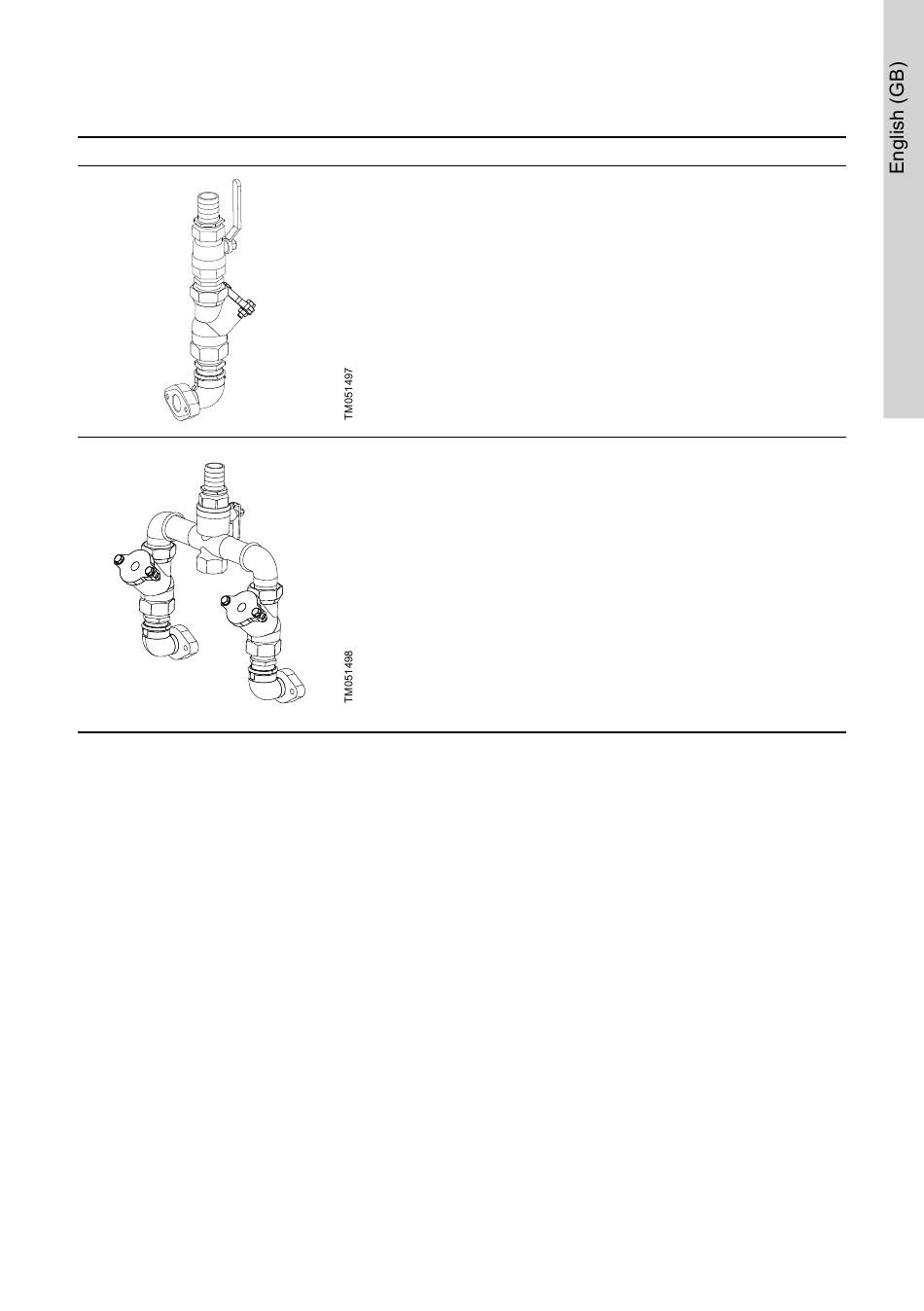

Detailed outlet pipework description for MULTILIFT MOG and MDG:
Figure
Related information
4.1 Installation requirements
1 1/2" complete pre-assembled outlet pipework for MULTILIFT MOG:
• 1 × flexible connecting piece with 2 clamps DN 40
• 1 × hose nozzle Rp 1 1/2 / DN 40
• 1 × isolating valve (ball) R 1 1/2
• 2 × double nipple Rp 1 1/2
• 1 × non-return valve (ball) R 1 1/2
• 1 × bend 90° Rp 1 1/2 / R 1 1/2
Note: The oval flange with 1 1/4" inner thread is supplied with
MULTILIFT MOG.
1 1/2" complete pre-assembled outlet pipework for MULTILIFT MDG:
• 1 × flexible connecting piece with 2 clamps DN 32
• 1 × hose nozzle Rp 1 1/2 / DN 40
• 1 × isolating valve (ball) R 1 1/2
• 1 × cross piece Rp 1 1/2
• 1 × blind cover Rp 1 1/2
• 2 × long nipple R 1 1/2
• 2 × bend 90° Rp 1 1/2 / R 1 1/2
• 2 × double nipple R 1 1/2
• 2 × non-return valve (ball) R 1 1/2
• 2 × bend 90° Rp 1 1/2 / R 1 1/4
Note: Two oval flanges with 1 1/4" inner thread are supplied with
MULTILIFT MDG.
Description
