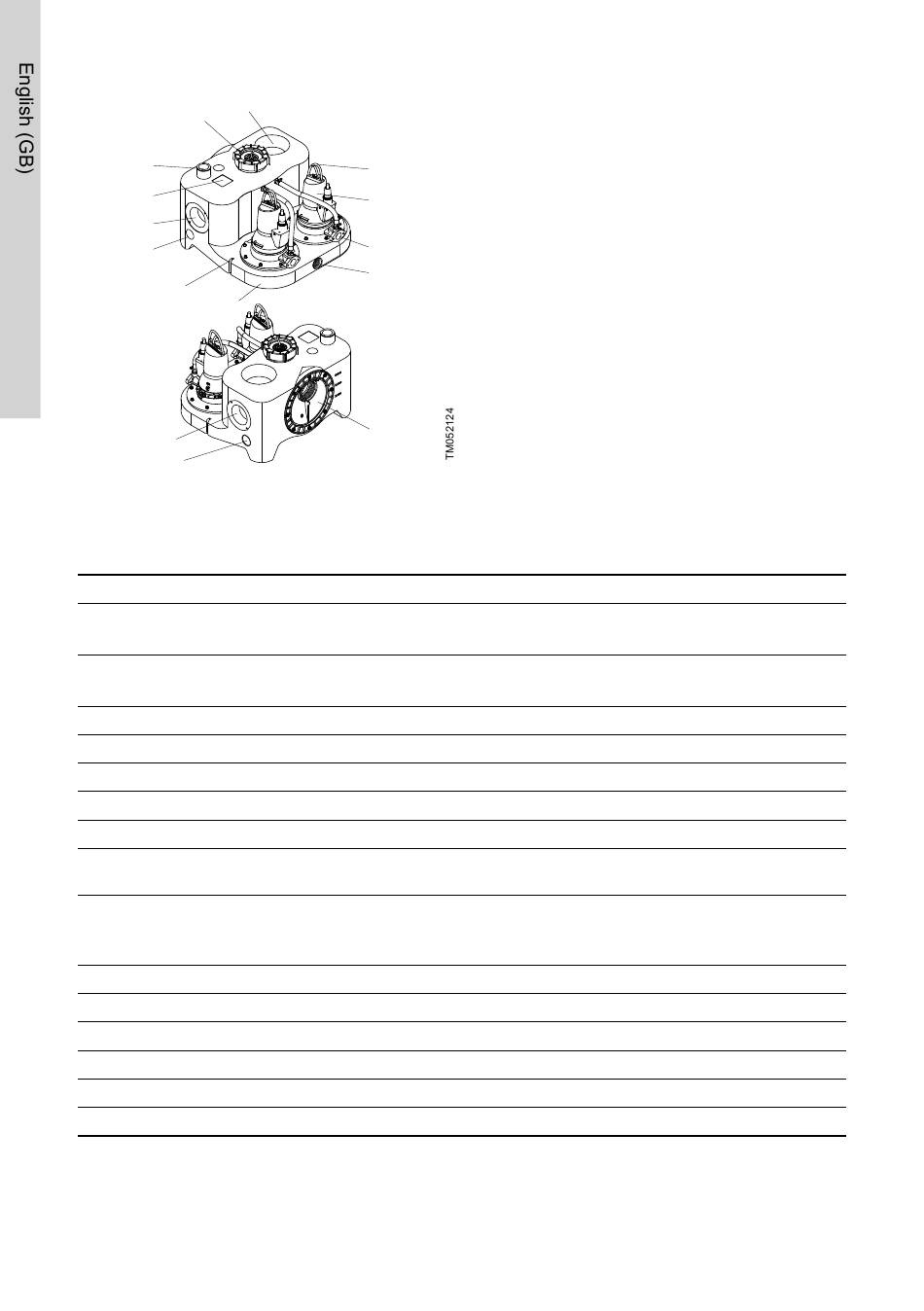

MULTILIFT MDG, front and rear view
Pos. Description
MULTILIFT M, MD, MLD: Pump
1
MULTILIFT MOG, MDG: Pump with grinder system and vortex impeller
MULTILIFT M, MD, MLD: Lifting eye for pumps
2
MULTILIFT MOG, MDG: Lifting bracket
3 Nameplate
4 Vent port, DN 70 (outer diameter, 75 mm), open
5 Screw cap for pressure tube and tank inspection opening
6 Vertical inlet, DN 150 (seal is accessory)
7 Fixing point
Non-return valve with inspection cover and drain screw to lift up the valve flap. See fig. Non-
8
return valve.
MULTILIFT M, MD, MLD: Outlet adapter flange, DN 80, to pipe ∅110 with flexible connecting
piece and two clamps.
9
MULTILIFT MOG, MDG: Oval flange for outlet
10 Collecting tank with carrying handle moulded into tank body
11 Port, 1 1/2", for manually operated diaphragm pump
12 Horizontal inlet, DN 100 (seal is accessory)
13 Adjustable inlet disk, DN 100 (DN 150 optional as accessory)
14 Side or top inlet, DN 50 (seal is accessory)
15 Separate inspection cover
Related information
