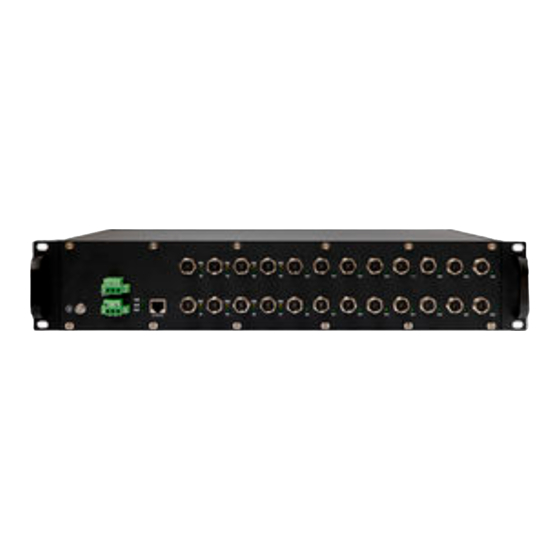

Rack-mounted industrial ethernet switch

Advertisement

Quick Links

TNS5800-8GP16GT-P24VDC
Industrial Ethernet Switch
Quick Installation Guide
3onedata Co., Ltd.
Address:
3/B, Zone 1, Baiwangxin High Technology
Industrial
Park,
Shenzhen
Website: www.3onedata.com
Tel:
+86 0755-26702688
Fax:
+86 0755-26703485

【Package Checklist】

Please check the integrity of package and accessories while
first using the switch.
1.
Industrial Ethernet switch
2.
Warranty card
3.
Certification
If any of these items are damaged or lost, please contact our
company or dealers, we will solve it ASAP.

【Product Overview】

This product is Layer 3 rack-mounted industrial Ethernet
switch
designed
for
rail
TNS5800-8GP16GT-P24VDC (8 Gigabit PoE copper ports +
16 Gigabit copper ports + 1 24VDC (12~36VDC) power
supply).

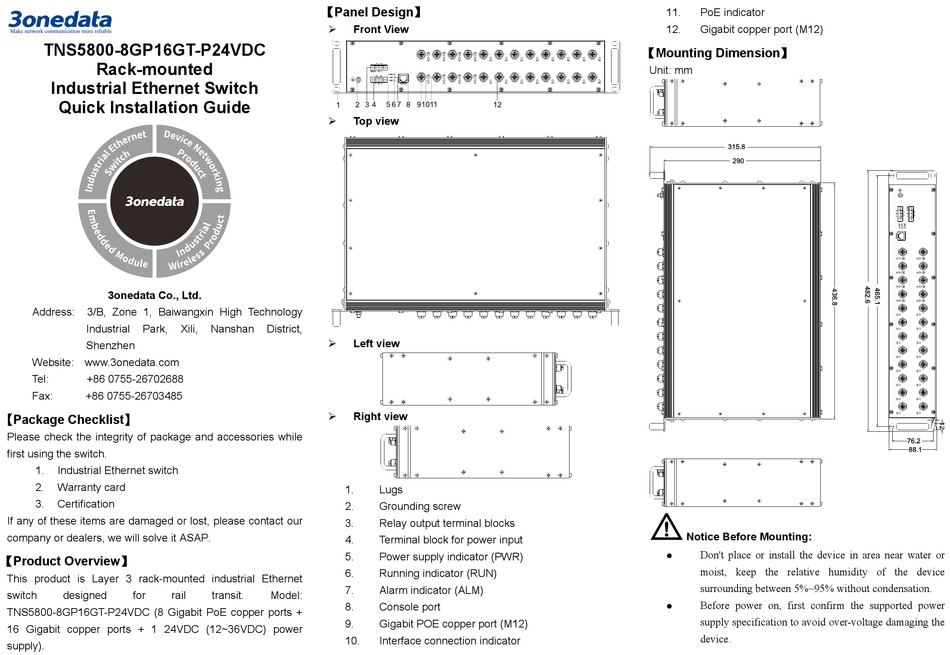

【Panel Design】

Front View
Top view
Xili,
Nanshan
District,
Left view
Right view
1.
2.
3.
4.
5.
6.
7.
transit.
Model:
8.
9.
10.
Lugs
Grounding screw
Relay output terminal blocks
Terminal block for power input
Power supply indicator (PWR)
Running indicator (RUN)
Alarm indicator (ALM)
Console port
Gigabit POE copper port (M12)
Interface connection indicator
11.
PoE indicator
12.
Gigabit copper port (M12)

【Mounting Dimension】

Unit: mm
Notice Before Mounting:
Don't place or install the device in area near water or
moist, keep the relative humidity of the device
surrounding between 5%~95% without condensation.
Before power on, first confirm the supported power
supply specification to avoid over-voltage damaging the
device.
