3onedata TNS5500D Series Quick Installation Manual

TNS5500D Series
Managed Industrial Ethernet Switch
Quick Installation Guide
3onedata Co., Ltd.
Address: 3/B, Zone 1, Baiwangxin High Technology
Industrial Park, Song Bai Road, Nanshan
District, Shenzhen, 518108, China
Website: www.3onedata.com
Tel: +86 0755-26702688
Fax: +86 0755-26703485

【Package Checklist】

Please check the integrity of package and accessories while
first using the switch.
1. Industrial Ethernet switch 2.
3. CD 4.
5. Warranty card
If any of these items are damaged or lost, please contact our
company or dealers, we will solve it ASAP.

【Product Overview】

The products of this series are 8-port 100M layer-2 managed
industrial Ethernet switches designed for rail transit industry.
Models as follows:
Model I. TNS5500D-8T-P110 (8 100M M12, 110VDC).
Model II. TNS5500D-8T-P24 (8 100M M12, 24VDC).

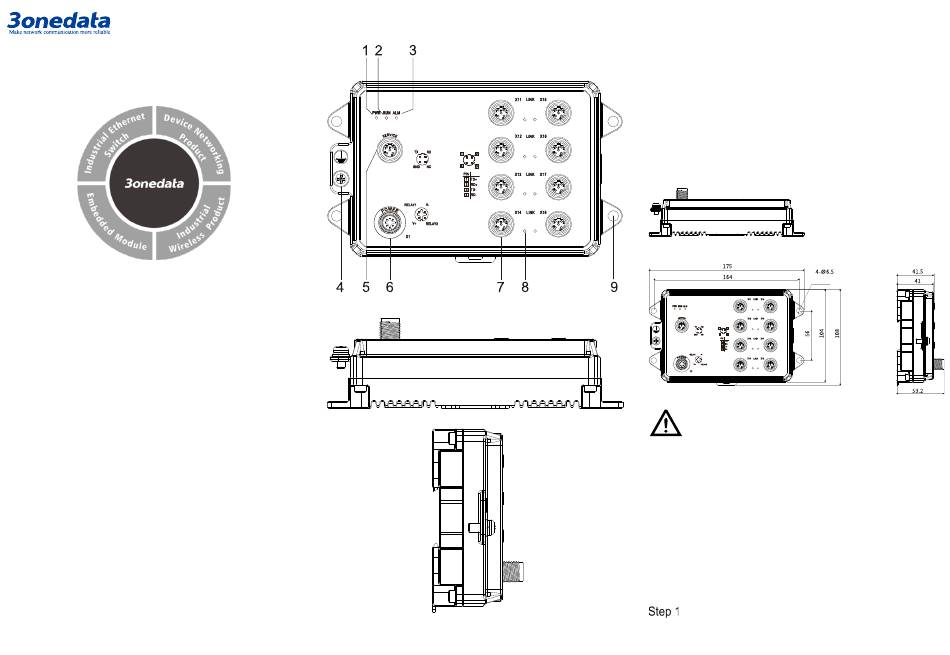

【Panel Design】

Front View

Bottom view

Right view

Quick installation guide
Certification
1. Power input status indicator PWR
2. Device running status indicator RUN
3. Relay alarm indicator ALM
4. Grounding screw
5. SERVICE debug serial port
6. Power supply input and relay output terminal
blocks
7. 10/100Base-T(X) 100M copper port (X11-X18)
8. 100M copper port connection indicator (X11-X18)
9. Lugs

【Mounting Dimension】

Unit: mm
through hole
Notice Before Mounting:
Don't place or install the device in area near water or

moisture, keep the relative humidity of the device
surrounding between 5%~95% without condensation.
Before powering on the device, check the power

Specifications supported by the device to prevent device
damage due to overvoltage.
The device surface temperature is high after running;

please don't directly contact to avoid scalding.

【Wall-mounted Device Mounting】

On the wall of device mounting, place the device on
the wall for reference or refer to the mounting
