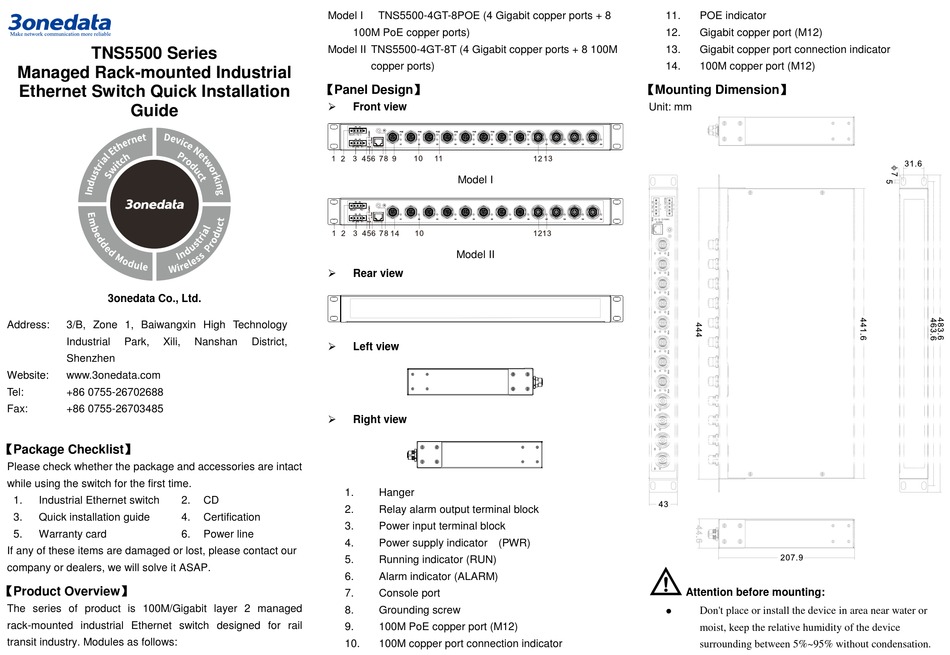

3onedata TNS5500 Series Quick Installation Manual

TNS5500 Series
Managed Rack-mounted Industrial
Ethernet Switch Quick Installation
Guide
3onedata Co., Ltd.
Address: 3/B, Zone 1, Baiwangxin High Technology
Industrial Park, Xili,
Shenzhen
Website: www.3onedata.com
Tel: +86 0755-26702688
Fax: +86 0755-26703485
【Package Checklist】
Please check whether the package and accessories are intact
while using the switch for the first time.
1. Industrial Ethernet switch
3. Quick installation guide
5. Warranty card
If any of these items are damaged or lost, please contact our
company or dealers, we will solve it ASAP.
【Product Overview】

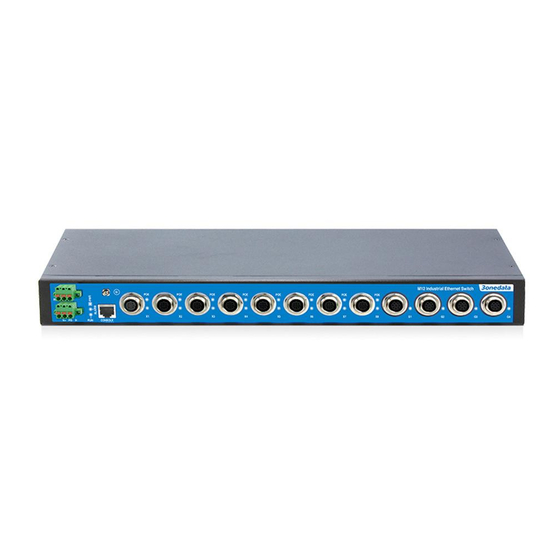

The series of product is 100M/Gigabit layer 2 managed
rack-mounted industrial Ethernet switch designed for rail
transit industry. Modules as follows:
Model I
100M PoE copper ports)
Model II TNS5500-4GT-8T (4 Gigabit copper ports + 8 100M
【Panel Design】

Front view

Rear view
Nanshan District,

Left view

Right view
1.
2. CD
2.
4. Certification
3.
6. Power line
4.
5.
6.
7.
8.
9.
10.
TNS5500-4GT-8POE (4 Gigabit copper ports + 8
copper ports)
Model I
Model II
Hanger
Relay alarm output terminal block
Power input terminal block
Power supply indicator (PWR)
Running indicator (RUN)
Alarm indicator (ALARM)
Console port
Grounding screw
100M PoE copper port (M12)
100M copper port connection indicator
11. POE indicator
12. Gigabit copper port (M12)
13. Gigabit copper port connection indicator
14. 100M copper port (M12)
【Mounting Dimension】
Unit: mm
Attention before mounting:
 Don't place or install the device in area near water or
moist, keep the relative humidity of the device
surrounding between 5%~95% without condensation.
