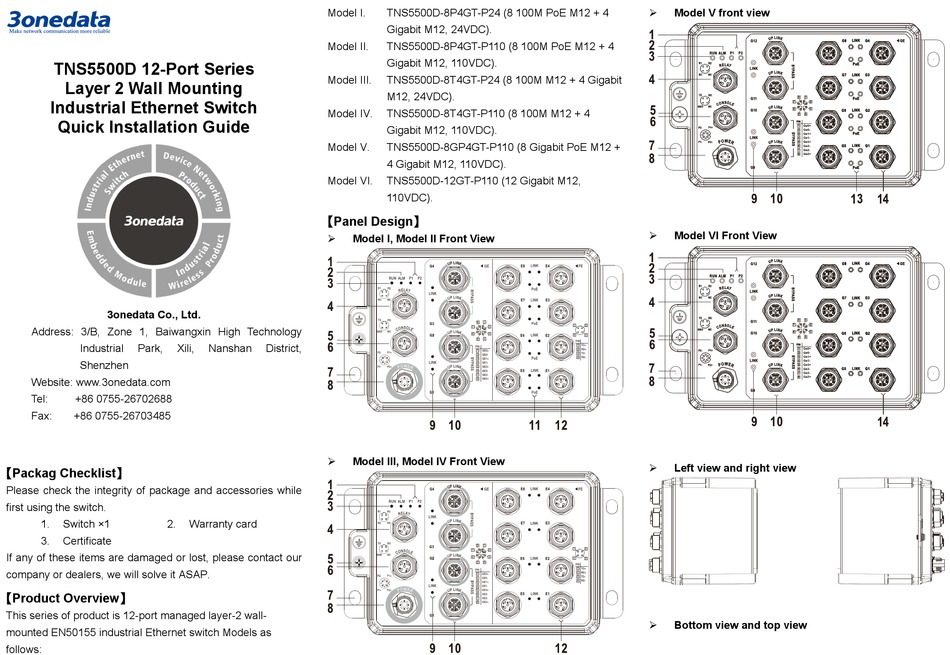

3onedata TNS5500D Series Quick Start Manual

TNS5500D 12-Port Series
Layer 2 Wall Mounting
Industrial Ethernet Switch
Quick Installation Guide
3onedata Co., Ltd.
Address: 3/B, Zone 1, Baiwangxin High Technology
Industrial Park, Xili,
Shenzhen
Website: www.3onedata.com
Tel: +86 0755-26702688
Fax: +86 0755-26703485
【Packag Checklist】
Please check the integrity of package and accessories while
first using the switch.
1. Switch ×1 2.
3. Certificate
If any of these items are damaged or lost, please contact our
company or dealers, we will solve it ASAP.
【Product Overview】
This series of product is 12-port managed layer-2 wall-
mounted EN50155 industrial Ethernet switch Models as
follows:
Model I.
Model II.
Model III.
Model IV.
Model V.
Model VI.
【Panel Design】
Model I, Model II Front View

Nanshan District,
Model III, Model IV Front View

Warranty card
TNS5500D-8P4GT-P24 (8 100M PoE M12 + 4
Gigabit M12, 24VDC).
TNS5500D-8P4GT-P110 (8 100M PoE M12 + 4
Gigabit M12, 110VDC).
TNS5500D-8T4GT-P24 (8 100M M12 + 4 Gigabit
M12, 24VDC).
TNS5500D-8T4GT-P110 (8 100M M12 + 4
Gigabit M12, 110VDC).
TNS5500D-8GP4GT-P110 (8 Gigabit PoE M12 +
4 Gigabit M12, 110VDC).
TNS5500D-12GT-P110 (12 Gigabit M12,
110VDC).
Model V front view

Model VI Front View

Left view and right view

Bottom view and top view

