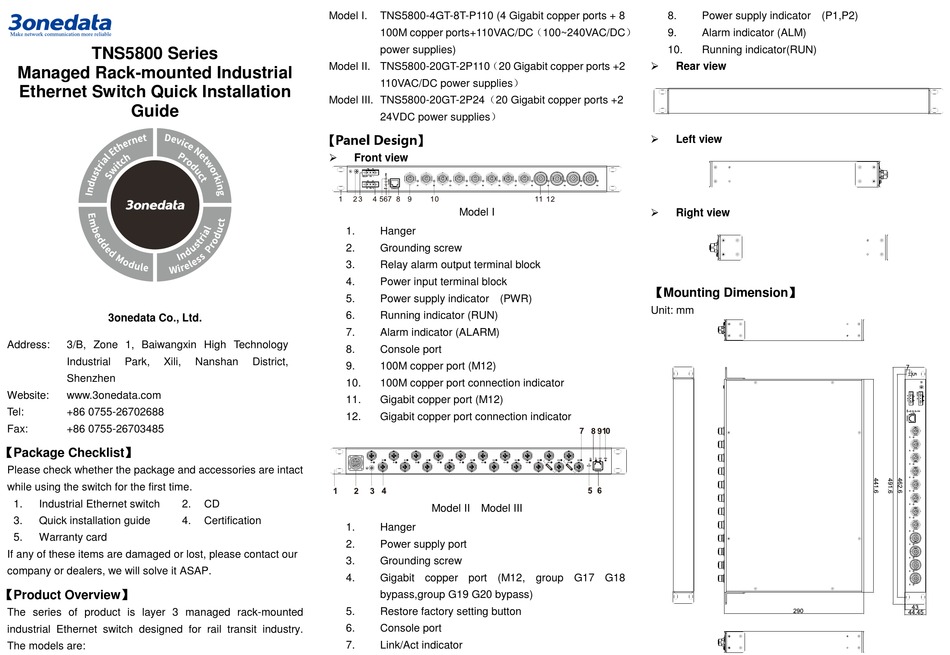

3onedata TNS5800 Series Quick Installation Manual

TNS5800 Series
Managed Rack-mounted Industrial
Ethernet Switch Quick Installation
Guide
3onedata Co., Ltd.
Address: 3/B, Zone 1, Baiwangxin High Technology
Industrial Park, Xili,
Shenzhen
Website: www.3onedata.com
Tel: +86 0755-26702688
Fax: +86 0755-26703485

【Package Checklist】

Please check whether the package and accessories are intact
while using the switch for the first time.
1. Industrial Ethernet switch
3. Quick installation guide
5. Warranty card
If any of these items are damaged or lost, please contact our
company or dealers, we will solve it ASAP.

【Product Overview】

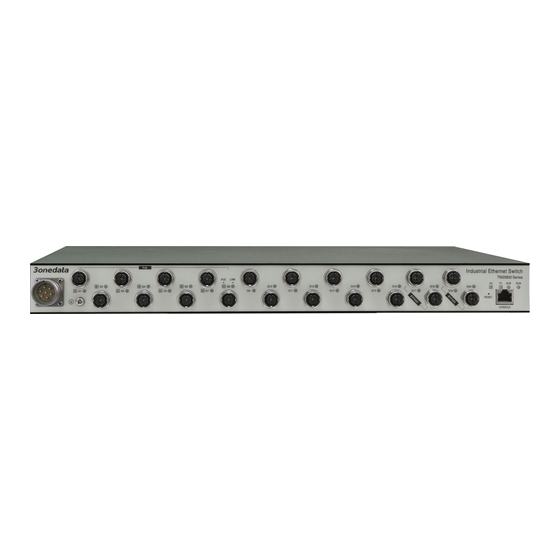

The series of product is layer 3 managed rack-mounted
industrial Ethernet switch designed for rail transit industry.
The models are:
Model I.
Model II. TNS5800-20GT-2P110（20 Gigabit copper ports +2
Model III. TNS5800-20GT-2P24（20 Gigabit copper ports +2

【Panel Design】


Front view
1.
2.
3.
4.
5.
6.
7.
8.
Nanshan District,
9.
10.
11.
12.
2. CD
4. Certification
1.
2.
3.
4.
5.
6.
7.
TNS5800-4GT-8T-P110 (4 Gigabit copper ports + 8
100M copper ports+110VAC/DC（100~240VAC/DC）
power supplies)
110VAC/DC power supplies）
24VDC power supplies）
Model I
Hanger
Grounding screw
Relay alarm output terminal block
Power input terminal block
Power supply indicator (PWR)
Running indicator (RUN)
Alarm indicator (ALARM)
Console port
100M copper port (M12)
100M copper port connection indicator
Gigabit copper port (M12)
Gigabit copper port connection indicator
Model II Model III
Hanger
Power supply port
Grounding screw
Gigabit copper port (M12, group G17 G18
bypass,group G19 G20 bypass)
Restore factory setting button
Console port
Link/Act indicator
8. Power supply indicator (P1,P2)
9. Alarm indicator (ALM)
10. Running indicator(RUN)

Rear view

Left view

Right view

【Mounting Dimension】

Unit: mm
