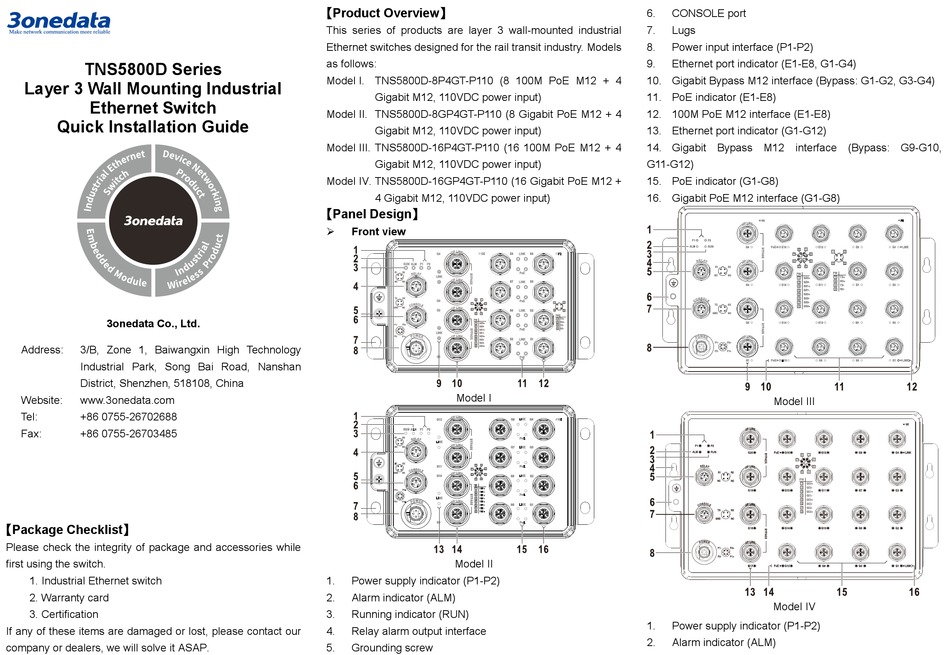

TNS5800D Series
Layer 3 Wall Mounting Industrial
Ethernet Switch
Quick Installation Guide
3onedata Co., Ltd.
Address:
3/B, Zone 1, Baiwangxin High Technology
Industrial Park, Song Bai Road, Nanshan
District, Shenzhen, 518108, China
Website:
www.3onedata.com
Tel:
+86 0755-26702688
Fax:
+86 0755-26703485
【Package Checklist】
Please check the integrity of package and accessories while
first using the switch.
1. Industrial Ethernet switch
2. Warranty card
3. Certification
If any of these items are damaged or lost, please contact our
company or dealers, we will solve it ASAP.

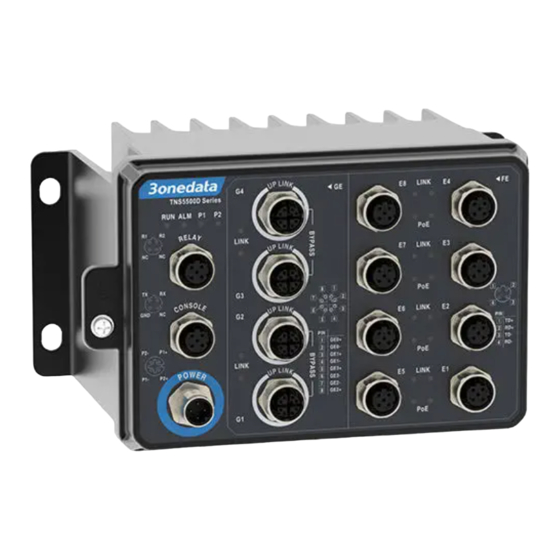

【Product Overview】
This series of products are layer 3 wall-mounted industrial
Ethernet switches designed for the rail transit industry. Models
as follows:
Model I. TNS5800D-8P4GT-P110 (8 100M PoE M12 + 4
Gigabit M12, 110VDC power input)
Model II. TNS5800D-8GP4GT-P110 (8 Gigabit PoE M12 + 4
Gigabit M12, 110VDC power input)
Model III. TNS5800D-16P4GT-P110 (16 100M PoE M12 + 4
Gigabit M12, 110VDC power input)
Model IV. TNS5800D-16GP4GT-P110 (16 Gigabit PoE M12 +
4 Gigabit M12, 110VDC power input)
【Panel Design】
Front view
Model I
Model II
1.
Power supply indicator (P1-P2)
2.
Alarm indicator (ALM)
3.
Running indicator (RUN)
4.
Relay alarm output interface
5.
Grounding screw
6.
CONSOLE port
7.
Lugs
8.
Power input interface (P1-P2)
9.
Ethernet port indicator (E1-E8, G1-G4)
10. Gigabit Bypass M12 interface (Bypass: G1-G2, G3-G4)
11. PoE indicator (E1-E8)
12. 100M PoE M12 interface (E1-E8)
13. Ethernet port indicator (G1-G12)
14. Gigabit Bypass M12 interface (Bypass: G9-G10,
G11-G12)
15. PoE indicator (G1-G8)
16. Gigabit PoE M12 interface (G1-G8)
Model III
Model IV
1.
Power supply indicator (P1-P2)
2.
Alarm indicator (ALM)
