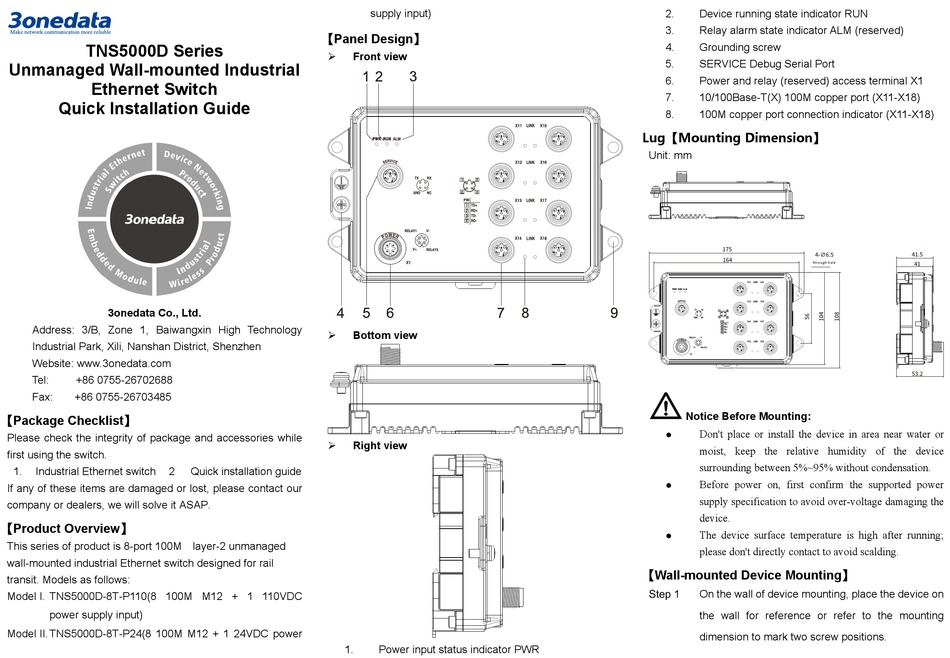

3onedata TNS5000D Series Quick Installation Manual

TNS5000D Series
Unmanaged Wall-mounted Industrial
Ethernet Switch
Quick Installation Guide
3onedata Co., Ltd.
Address: 3/B, Zone 1, Baiwangxin High Technology
Industrial Park, Xili, Nanshan District, Shenzhen
Website: www.3onedata.com
Tel: +86 0755-26702688
Fax: +86 0755-26703485

【Package Checklist】

Please check the integrity of package and accessories while
first using the switch.
1. Industrial Ethernet switch 2
If any of these items are damaged or lost, please contact our
company or dealers, we will solve it ASAP.

【Product Overview】

This series of product is 8-port 100M layer-2 unmanaged
wall-mounted industrial Ethernet switch designed for rail
transit. Models as follows:
Model I. TNS5000D-8T-P110(8 100M M12 + 1 110VDC
Power Supply input)
Model II. TNS5000D-8T-P24(8 100M M12 + 1 24VDC power
supply input)

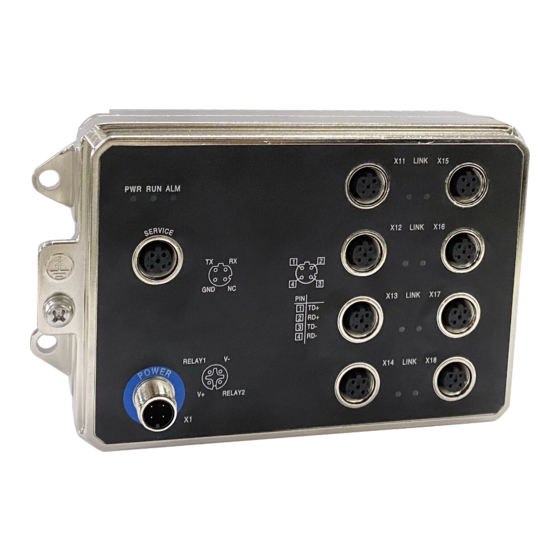

【Panel Design】

Front view

Bottom view

Right view

Quick installation guide
1. Power input status indicator PWR
2. Device running state indicator RUN
3. Relay alarm state indicator ALM (reserved)
4. Grounding screw
5. SERVICE Debug Serial Port
6. Power and relay (reserved) access terminal X1
7. 10/100Base-T(X) 100M copper port (X11-X18)
8. 100M copper port connection indicator (X11-X18)
Lug【Mounting Dimension】
Unit: mm
through hole

Notice Before Mounting:

Don't place or install the device in area near water or

moist, keep the relative humidity of the device
surrounding between 5%~95% without condensation.
Before power on, first confirm the supported power

supply specification to avoid over-voltage damaging the
device.
The device surface temperature is high after running;

please don't directly contact to avoid scalding.

【Wall-mounted Device Mounting】

On the wall of device mounting, place the device on
the wall for reference or refer to the mounting
dimension to mark two screw positions.
