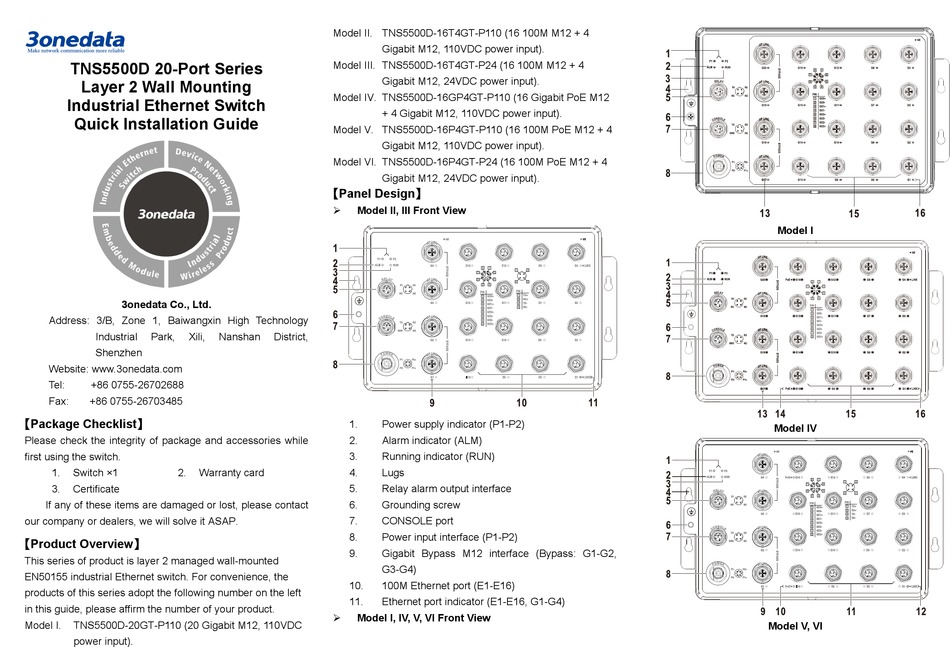

3onedata TNS5500D Series Quick Installation Manual

TNS5500D 20-Port Series
Layer 2 Wall Mounting
Industrial Ethernet Switch
Quick Installation Guide
3onedata Co., Ltd.
Address: 3/B, Zone 1, Baiwangxin High Technology
Industrial Park, Xili,
Shenzhen
Website: www.3onedata.com
Tel: +86 0755-26702688
Fax: +86 0755-26703485

【Package Checklist】

Please check the integrity of package and accessories while
first using the switch.
1. Switch ×1 2.
3. Certificate
If any of these items are damaged or lost, please contact
our company or dealers, we will solve it ASAP.

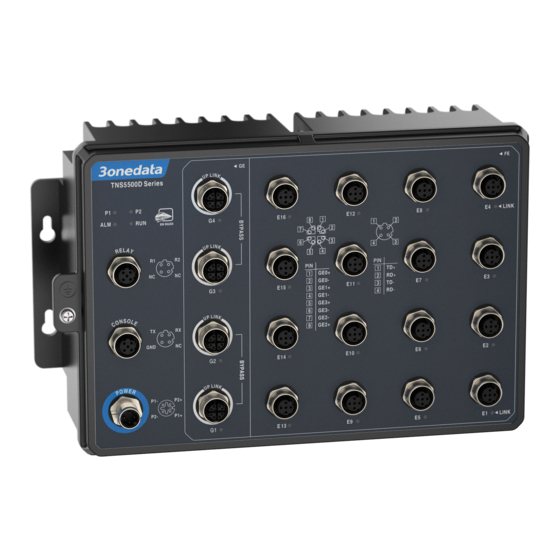

【Product Overview】

This series of product is layer 2 managed wall-mounted
EN50155 industrial Ethernet switch. For convenience, the
products of this series adopt the following number on the left
in this guide, please affirm the number of your product.
Model I. TNS5500D-20GT-P110 (20 Gigabit M12, 110VDC
power input).
Model II. TNS5500D-16T4GT-P110 (16 100M M12 + 4
Model III. TNS5500D-16T4GT-P24 (16 100M M12 + 4
Model IV. TNS5500D-16GP4GT-P110 (16 Gigabit PoE M12
Model V. TNS5500D-16P4GT-P110 (16 100M PoE M12 + 4
Model VI. TNS5500D-16P4GT-P24 (16 100M PoE M12 + 4

【Panel Design】

Model II, III Front View

Nanshan District,
1.
2.
3.
Warranty card 4.
5.
6.
7.
8.
9.
10.
11.
Model I, IV, V, VI Front View

Gigabit M12, 110VDC power input).
Gigabit M12, 24VDC power input).
+ 4 Gigabit M12, 110VDC power input).
Gigabit M12, 110VDC power input).
Gigabit M12, 24VDC power input).
Power supply indicator (P1-P2)
Alarm indicator (ALM)
Running indicator (RUN)
Lugs
Relay alarm output interface
Grounding screw
CONSOLE port
Power input interface (P1-P2)
Gigabit Bypass M12 interface (Bypass: G1-G2,
G3-G4)
100M Ethernet port (E1-E16)
Ethernet port indicator (E1-E16, G1-G4)
Model I
Model IV
Model V, VI
