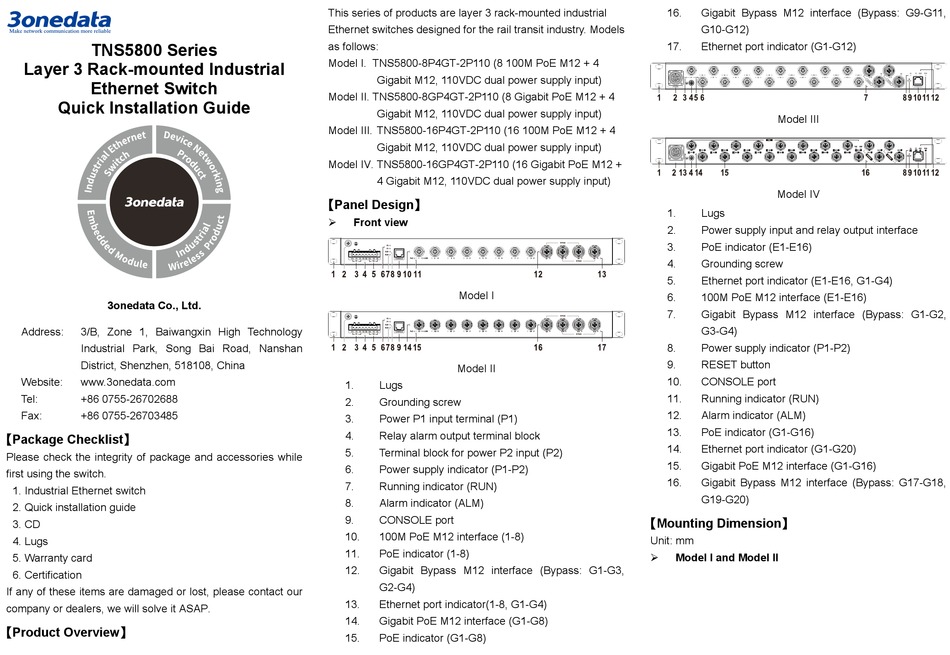

TNS5800 Series
Layer 3 Rack-mounted Industrial
Ethernet Switch
Quick Installation Guide
3onedata Co., Ltd.
Address:
3/B, Zone 1, Baiwangxin High Technology
Industrial Park, Song Bai Road, Nanshan
District, Shenzhen, 518108, China
Website:
www.3onedata.com
Tel:
+86 0755-26702688
Fax:
+86 0755-26703485

【Package Checklist】

Please check the integrity of package and accessories while
first using the switch.
1. Industrial Ethernet switch
2. Quick installation guide
3. CD
4. Lugs
5. Warranty card
6. Certification
If any of these items are damaged or lost, please contact our
company or dealers, we will solve it ASAP.

【Product Overview】

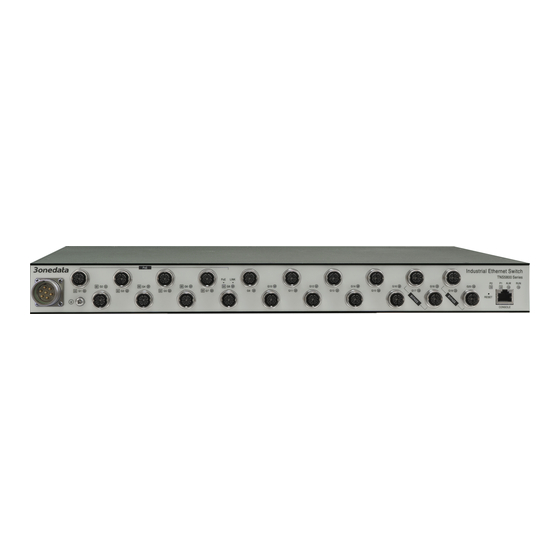

This series of products are layer 3 rack-mounted industrial
Ethernet switches designed for the rail transit industry. Models
as follows:
Model I. TNS5800-8P4GT-2P110 (8 100M PoE M12 + 4
Gigabit M12, 110VDC dual power supply input)
Model II. TNS5800-8GP4GT-2P110 (8 Gigabit PoE M12 + 4
Gigabit M12, 110VDC dual power supply input)
Model III. TNS5800-16P4GT-2P110 (16 100M PoE M12 + 4
Gigabit M12, 110VDC dual power supply input)
Model IV. TNS5800-16GP4GT-2P110 (16 Gigabit PoE M12 +
4 Gigabit M12, 110VDC dual power supply input)

【Panel Design】

Front view
Model I
Model II
1.
Lugs
2.
Grounding screw
3.
Power P1 input terminal (P1)
4.
Relay alarm output terminal block
5.
Terminal block for power P2 input (P2)
6.
Power supply indicator (P1-P2)
7.
Running indicator (RUN)
8.
Alarm indicator (ALM)
9.
CONSOLE port
10.
100M PoE M12 interface (1-8)
11.
PoE indicator (1-8)
12.
Gigabit Bypass M12 interface (Bypass: G1-G3,
G2-G4)
13.
Ethernet port indicator(1-8, G1-G4)
14.
Gigabit PoE M12 interface (G1-G8)
15.
PoE indicator (G1-G8)
16.
Gigabit Bypass M12 interface (Bypass: G9-G11,
G10-G12)
17.
Ethernet port indicator (G1-G12)
Model III
Model IV
1.
Lugs
2.
Power supply input and relay output interface
3.
PoE indicator (E1-E16)
4.
Grounding screw
5.
Ethernet port indicator (E1-E16, G1-G4)
6.
100M PoE M12 interface (E1-E16)
7.
Gigabit Bypass M12 interface (Bypass: G1-G2,
G3-G4)
8.
Power supply indicator (P1-P2)
9.
RESET button
10.
CONSOLE port
11.
Running indicator (RUN)
12.
Alarm indicator (ALM)
13.
PoE indicator (G1-G16)
14.
Ethernet port indicator (G1-G20)
15.
Gigabit PoE M12 interface (G1-G16)
16.
Gigabit Bypass M12 interface (Bypass: G17-G18,
G19-G20)

【Mounting Dimension】

Unit: mm
Model I and Model II

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TNS5800 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for 3onedata TNS5800 Series

  • Page 1 This series of products are layer 3 rack-mounted industrial Gigabit Bypass M12 interface (Bypass: G9-G11, Ethernet switches designed for the rail transit industry. Models G10-G12) TNS5800 Series as follows: Ethernet port indicator (G1-G12) Model I. TNS5800-8P4GT-2P110 (8 100M PoE M12 + 4...
  • Page 2 Don't place or install the device in area near water or Shift out the device from rack, disassembling ends.  moist, keep the relative humidity of the device surrounding between 5%~95% without condensation. Notice before power on: Before power on, first confirm the supported power ...
  • Page 3 alarm output, the relay occupies 2 pins, pin definition are Positive send data of 100M Indicate Description shown as above. R1 and R2 are a group of normally open P1/2 is connected and running normally Ethernet P1/P2 P1/2 is disconnected and running contacts of the device alarm relay, which is open in normal Positive receive data of 100M abnormally...
  • Page 4 Gigabit M12 10/100/1000Base-T(X), Model I, Model II Power input:  M12(Female), 8-Pin X-Coded, 110VDC(66~156VDC), Automatic Flow Control, Full/half dual power supply Duplex Mode, MDI/MDI-X redundancy, support Autotunning; support two groups anti-reverse connection of Bypass protection Connection method: 8-pin 100M PoE M12 10/100base-T(X), M12 ...
