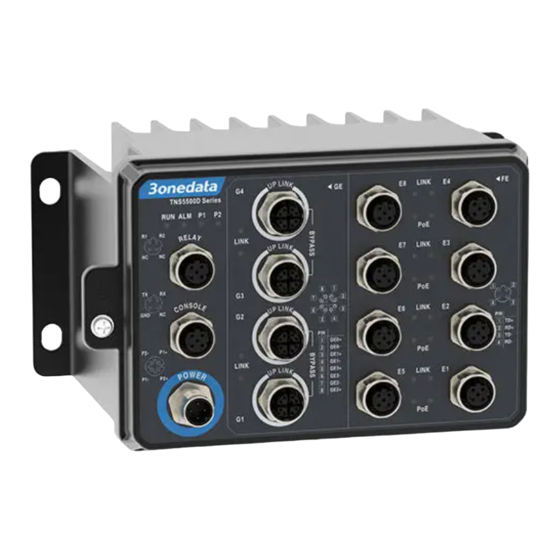

TNS5800D Series
Managed Wall-mounted Industrial
Ethernet Switch Quick Installation
Guide
3onedata Co., Ltd.
Address:
3/B, Zone 1, Baiwangxin High Technology
Industrial
Park,
Xili,
Shenzhen
Website:
www.3onedata.com
Tel:
+86 0755-26702688
Fax:
+86 0755-26703485
【Package Checklist】
Please check whether the package and accessories are intact
while using the switch for the first time.
1.
Industrial Ethernet switch
3.
Quick installation guide
5.
Warranty card
If any of these items are damaged or lost, please contact our
company or dealers, we will solve it ASAP.
【Product Overview】
The series of product is 100M/Gigabit layer 3 managed
Wall-mounted industrial Ethernet switch designed for rail
transit industry. The module is: TNS5800D-4GT-8T (4 Gigabit
copper ports + 8 100M copper ports)
【Panel Design】
Front view
Nanshan
District,
Bottom view
2.
CD
Top view
4.
Certification
Left view
Right view
1.
Hanger
2.
Relay alarm output terminal block
3.
Console port
4.
Indicator of power supply input status PWR
5.
Relay alarm indicator ALARM
6.
Indicator of device running status RUN
7.
Grounding screw
8.
Power input terminal block
9.
10/100/1000Base-T(X) Gigabit copper port
10.
Gigabit copper port connection indicator
11.
100M copper port connection indicator
12.
10/100Base-T(X) 100M copper port
【Mounting Dimension】
Unit: mm
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for 3onedata TNS5800D Series
Summary of Contents for 3onedata TNS5800D Series

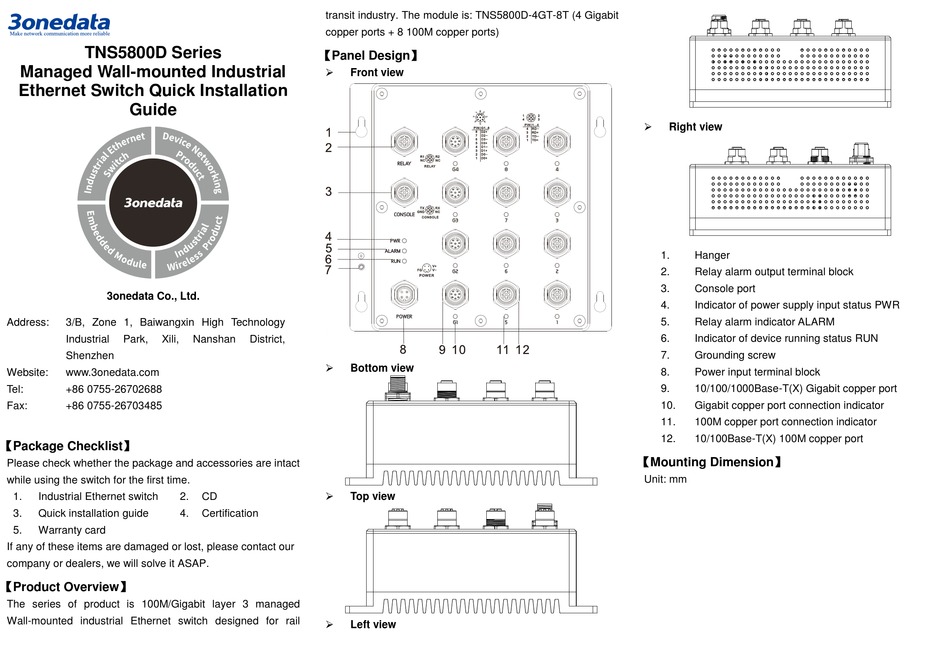

- Page 1 The module is: TNS5800D-4GT-8T (4 Gigabit copper ports + 8 100M copper ports) TNS5800D Series 【Panel Design】 Managed Wall-mounted Industrial Front view Ethernet Switch Quick Installation Guide Right view Hanger Relay alarm output terminal block Console port 3onedata Co., Ltd.
- Page 2 【Relay Connection】 This device provides 1 M12 D-Coded 4-Pin slot (female) for relay output. R1 and R2 is a pair of normally open contacts of device alarm relay. They are open circuit in normal non alarm state, closed when any alarm information occurs. Such as: it's closed when power off, and send out alarm.
- Page 3 Step 3 Enter device’s username and password in the login signal Negative Ethernet positive window as shown below. 100M Ethernet received 【Checking LED Indicator】 signal positive This device provides LED indicators for monitoring the work 100M Ethernet received status of the device, which has simplified the troubleshooting signal negative process comprehensively.
- Page 4 Gigabit M12 10/100/1000Base-T(X)， M12(Female)，8-Pin A-Coded automatic flow control, full/half duplex mode, MDI/MDI-X automatic detection; support Bypass function Console port CLI command management port, M12 D-coded port Alarm interface relay alarm information output, M12 D-coded port Indicator Power indicator, run indicator, interface indicator, alarm...
