INSTALLATION, CONT'D: SHIPPING BRACES / PLUG IN UNIT / MAIN POWER SWITCH / LED LIGHTS
7. Remove Shipping Braces
Shipping braces keeps condenser package
secure during shipment and positioning case.
After case has been moved into position, remove
shipping brace at air intake side of condenser
package (opposite end of unit shown below).
Note: Shipping Brace Is ONLY To Be Removed
From Air Intake Side of Condenser Package!
8. Plug Case In / Turn Main Power Switch On
Power cord with plug is factory-supplied.
Plug case into customer-supplied electrical
outlet.
Note: Due to space constraints, it may be
necessary to pull out condenser package to
access plug and maneuver power cord around
Note: Model NM7255RSSV
(Shown) May Not Reflect
Every Feature Or Option Of
Your Particular Case.
components and into receptacle. Return the
condenser package to its previous position before
continuing.
Turn main power switch on.
Check that case is energized. Lift deck pans to
confirm that fans are rotating).
Turn on LED light switch at front-left header.
Note: Illustration shown may not reflect every
feature or option of your particular merchandiser.
9. Turn On LED Lights
LED light switch is energized when main power
switch has been turned on.
All LED lights will come on when light switch has
been turned on.

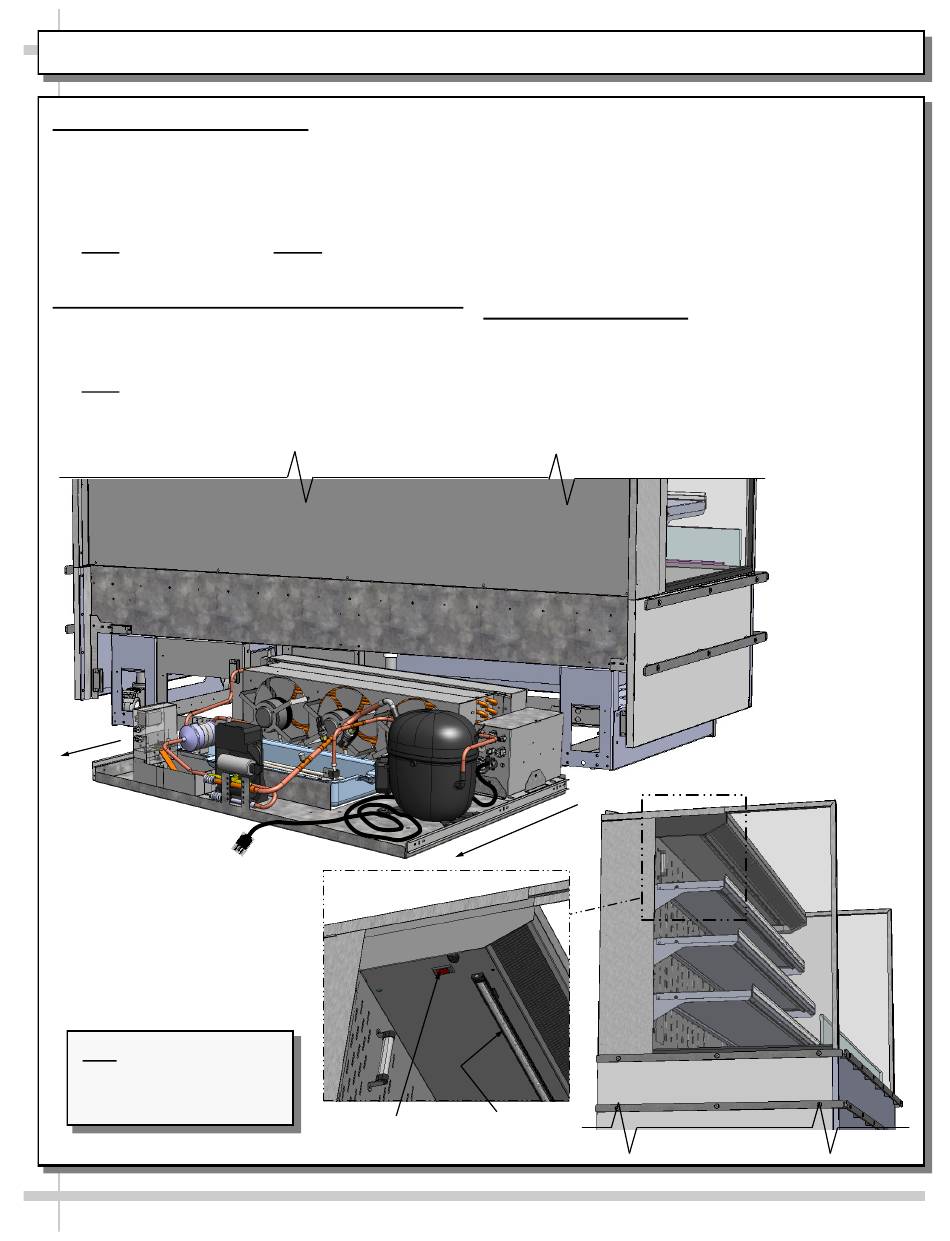

See illustration below for general LED light switch
location.
LED Light
LED Light
(Typ.)
Switch
9
