INSTALLATION, CONT'D: SHELVING ASSEMBLY COMPONENTS

6. Shelving Assembly Components
Shelves may be adjusted vertically,
horizontally or entirely removed from
merchandiser.

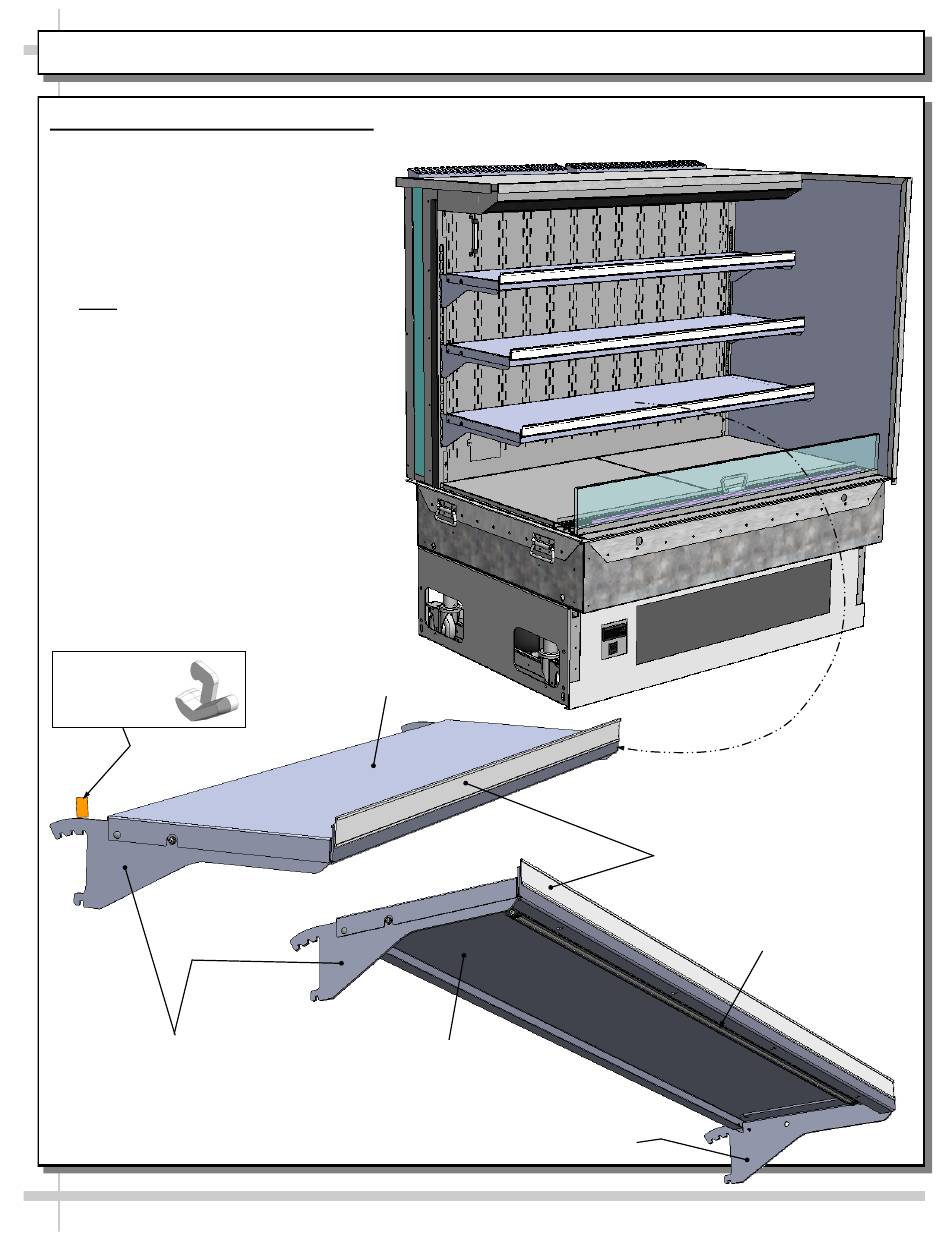

See illustrations below for
components comprising each shelf
assembly.
Nylon retainer clips (2 per shelf)
secure brackets during shipment.
Note: To adjust or remove shelves,
you must remove retainers; pliers
may be required to accomplish this
task.
Check that shelving is in proper
position before placing product in
case
Nylon Retainer
Clip (Typ.)
Bracket With Notches
To Adjust (Typ.)
Shelf Top - For Placing
Product (Typ.)
Shelf Top - For Placing
Product (Typ.)
8
Tag Molding (Typ.)
Bracket With Notches
To Adjust (Typ.)
LED Light (Typ.)
