PREVENTIVE MAINTENANCE (TO BE PERFORMED BY TRAINED SERVICE PROVIDER) - PAGE 2 OF 3
NOTE: PREVENTIVE MAINTENANCE IS TO BE
Honeycomb
PERFORMED BY TRAINED SERVICE PROVIDERS
Air Diffuser
ONLY.
Preventive maintenance should be performed
quarterly (unless conditions warrant a more
frequent replacement cycle).

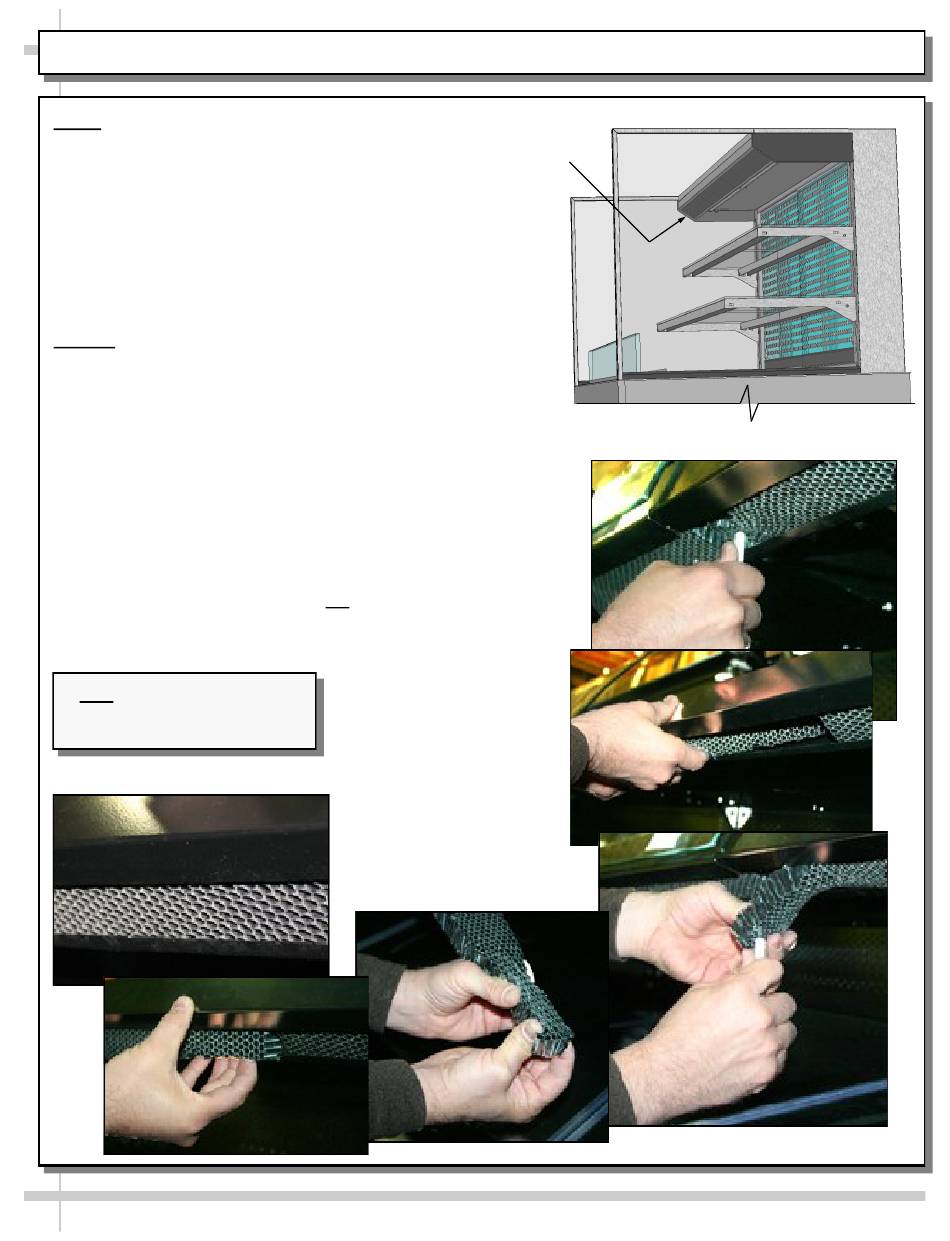

Honeycomb Air Diffuser Removal
A. Wedge non-metallic device of suitable strength
(such as a ballpoint pen or stylus) between honeycomb
and end panel.
Caution! Use care not to dislodge the heating wire
(that prevents condensation on the honeycomb
retainer).
B. Apply pressure to collapse the honeycomb to allow
it to be pulled out of honeycomb retainer.
C. Pry downward & away from honeycomb retainer.
Clean honeycomb with warm water and soap solution.
A
Submerse if necessary. Use brush to dislodge stubborn
or sticky residue. Dry by using vacuum's 'blow mode'.
Honeycomb Air Diffuser Installation
D. Squeeze honeycomb into the honeycomb retainer.
E. Carefully slide honeycomb into place.
F. Adjust honeycomb so that it fits flat against retainer.
It must not be wavy or out of position.
B
Note: Model Shown May Not
Reflect Every Feature Or
Option Of Your Particular Case.
F
D
C
E
