CASE DESIGN, CONT'D: TUB AREA (AFTER DECK PAN REMOVAL)
5. Tub Area After Deck Pan Removal
Note: Refrigeration service to be accomplished by refrigeration /
electrical contractors only.
Caution! Turn main power off before accessing tub area.
•

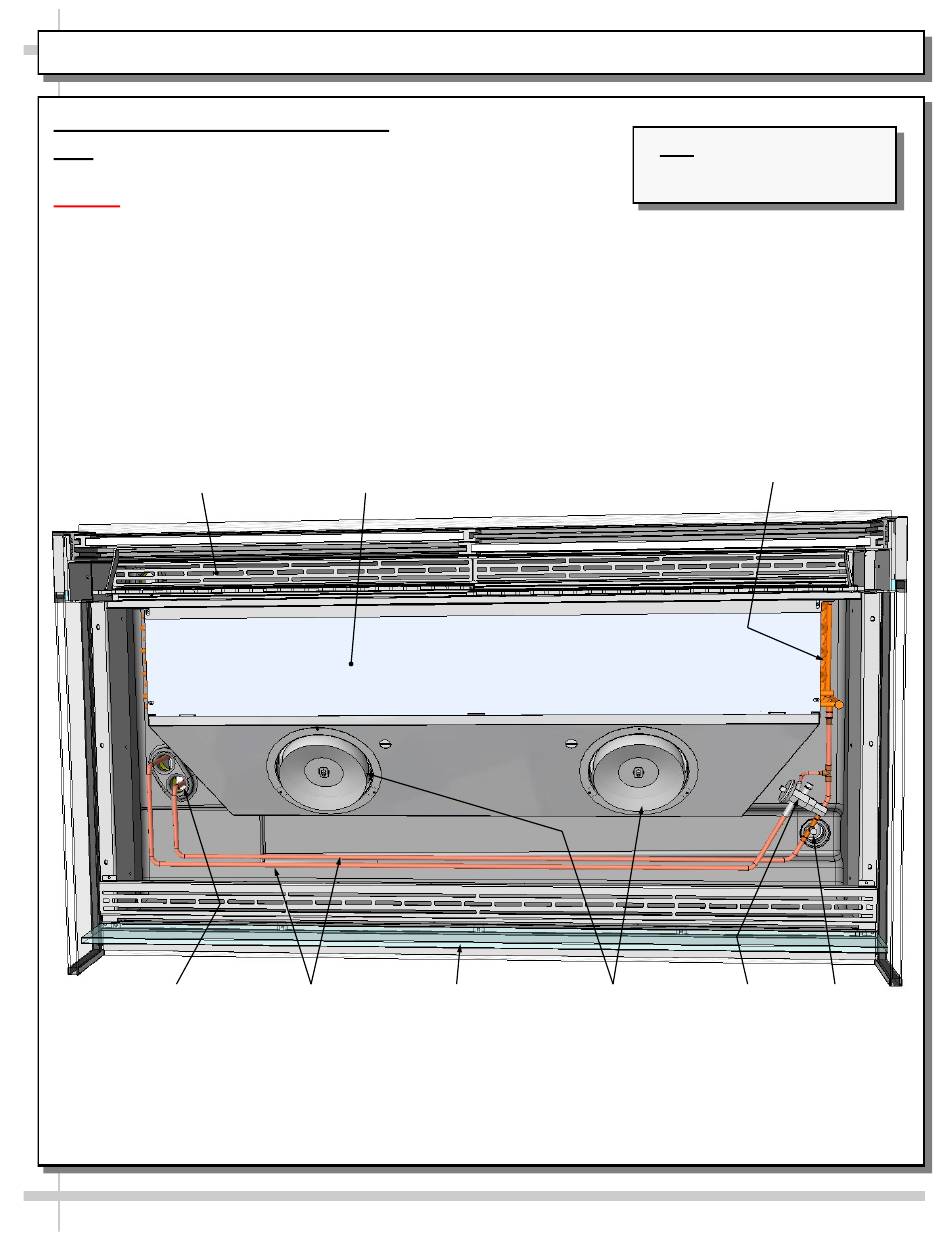

Illustration below shown after removal of deck pans.
•
After cleaning or servicing in tub area, return deck pans to case and return power to case.
Air Discharge
Refrigeration
Line Route
Evaporator Coil
Cover
Refrigeration
Acrylic Return
Lines
Airflow Deflector
--- Case Front ---
--- Case Rear ---
Evaporator Fans
16
Note: Model Shown May Not
Reflect Every Feature Or
Option Of Your Particular Case.
Evaporator
Coil
TXV
Drain
