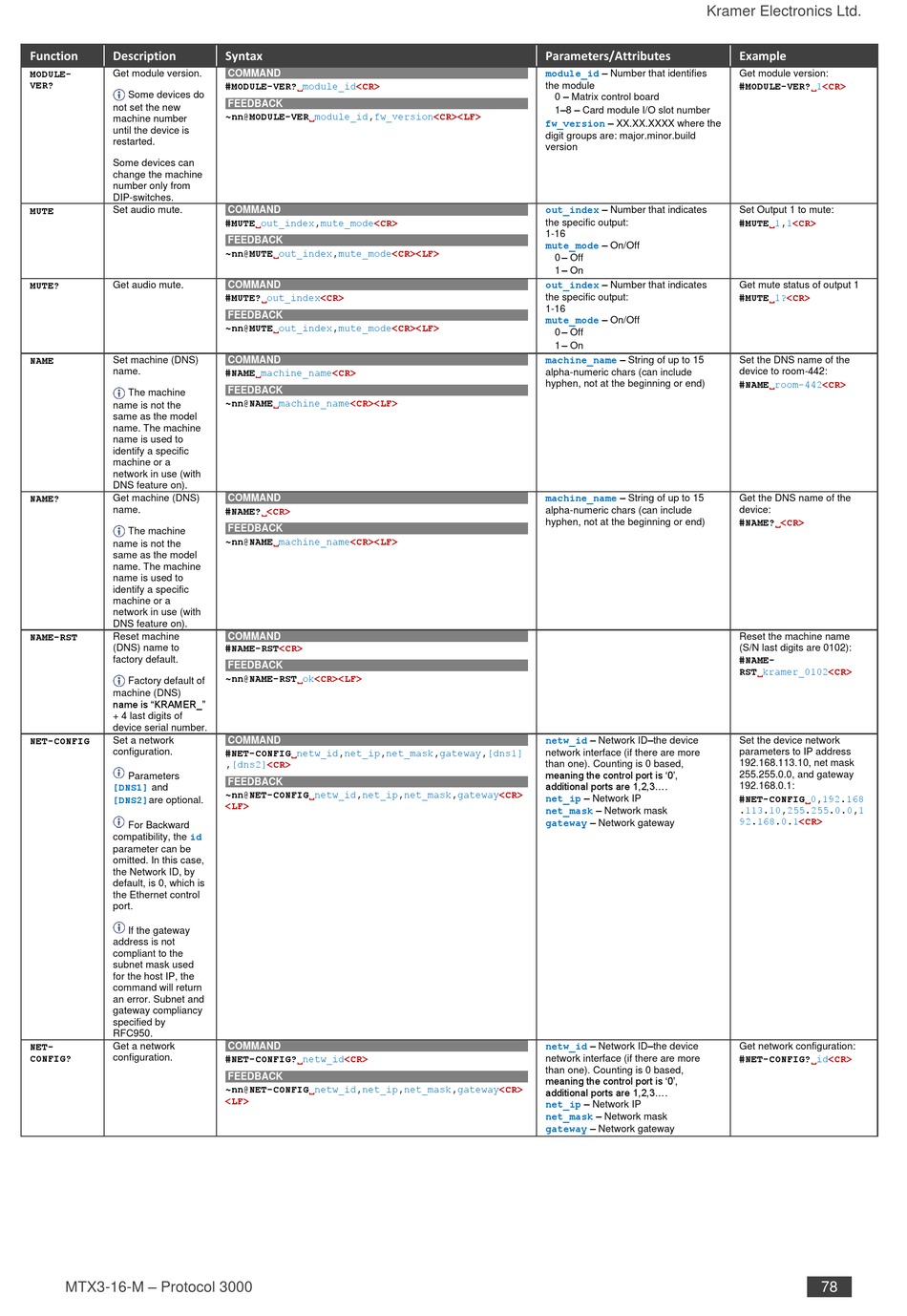

Function Description
MODULE- Get module version.
VER?
Some devices do
not set the new
machine number
until the device is
restarted.
Some devices can
change the machine
number only from
DIP-switches.
MUTE Set audio mute.
MUTE?
Get audio mute.
NAME Set machine (DNS)
name.
The machine
name is not the
same as the model
name. The machine
name is used to
identify a specific
machine or a
network in use (with
DNS feature on).
NAME?
Get machine (DNS)
name.
The machine
name is not the
same as the model
name. The machine
name is used to
identify a specific
machine or a
network in use (with
DNS feature on).
NAME-RST
Reset machine
(DNS) name to
factory default.
Factory default of
machine (DNS)
name is "KRAMER_"
+ 4 last digits of
device serial number.
NET-CONFIG Set a network
configuration.
Parameters
[DNS1]
and
[DNS2]are optional.
For Backward
id
compatibility, the
parameter can be
omitted. In this case,
the Network ID, by
default, is 0, which is
the Ethernet control
port.
If the gateway
address is not
compliant to the
subnet mask used
for the host IP, the
command will return
an error. Subnet and
gateway compliancy
specified by
RFC950.
NET-
Get a network
CONFIG?
configuration.
MTX3-16-M – Protocol 3000
Syntax
COMMAND
#MODULE-VER?module_id<CR>
FEEDBACK
~nn@MODULE-VERmodule_id,fw_version<CR><LF>
COMMAND
#MUTEout_index,mute_mode<CR>
FEEDBACK
~nn@MUTEout_index,mute_mode<CR><LF>
COMMAND
#MUTE?out_index<CR>
FEEDBACK
~nn@MUTEout_index,mute_mode<CR><LF>
COMMAND
#NAMEmachine_name<CR>
FEEDBACK
~nn@NAMEmachine_name<CR><LF>
COMMAND
#NAME?<CR>
FEEDBACK
~nn@NAMEmachine_name<CR><LF>
COMMAND
#NAME-RST<CR>
FEEDBACK
~nn@NAME-RSTok<CR><LF>
COMMAND
#NET-CONFIGnetw_id,net_ip,net_mask,gateway,[dns1]
,[dns2]<CR>
FEEDBACK
~nn@NET-CONFIGnetw_id,net_ip,net_mask,gateway<CR>
<LF>
COMMAND
#NET-CONFIG?netw_id<CR>
FEEDBACK
~nn@NET-CONFIGnetw_id,net_ip,net_mask,gateway<CR>
<LF>
Kramer Electronics Ltd.
Parameters/Attributes
– Number that identifies
module_id
the module
0 – Matrix control board
1–8 – Card module I/O slot number
– XX.XX.XXXX where the
fw_version
digit groups are: major.minor.build
version
out_index – Number that indicates
the specific output:
1-16
– On/Off
mute_mode
0 – Off
1 – On
– Number that indicates
out_index
the specific output:
1-16
mute_mode – On/Off
0 – Off
1 – On
– String of up to 15
machine_name
alpha-numeric chars (can include
hyphen, not at the beginning or end)
– String of up to 15
machine_name
alpha-numeric chars (can include
hyphen, not at the beginning or end)
– Network ID–the device
netw_id
network interface (if there are more
than one). Counting is 0 based,
meaning the control port is '0',
additional ports are 1,2,3....
– Network IP
net_ip
– Network mask
net_mask
– Network gateway
gateway
netw_id – Network ID–the device
network interface (if there are more
than one). Counting is 0 based,
meaning the control port is '0',
additional ports are 1,2,3....
net_ip – Network IP
– Network mask
net_mask
– Network gateway
gateway
Example
Get module version:
#MODULE-VER?1<CR>
Set Output 1 to mute:
#MUTE1,1<CR>
Get mute status of output 1
#MUTE1?<CR>
Set the DNS name of the
device to room-442:
#NAMEroom-442<CR>
Get the DNS name of the
device:
#NAME?<CR>
Reset the machine name
(S/N last digits are 0102):
#NAME-
RSTkramer_0102<CR>
Set the device network
parameters to IP address
192.168.113.10, net mask
255.255.0.0, and gateway
192.168.0.1:
#NET-CONFIG0,192.168
.113.10,255.255.0.0,1
92.168.0.1<CR>
Get network configuration:
#NET-CONFIG?id<CR>
