K R A ME R E LE CT R O N IC S L T D .
USER MANUAL
MODEL:
VS-44HN
4x4 HDMI Matrix Switcher
P/N: 2900-300161 Rev 2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VS-44HN and is the answer not in the manual?

Questions and answers

Related Manuals for Kramer VS-44HN

Summary of Contents for Kramer VS-44HN

  • Page 1 K R A ME R E LE CT R O N IC S L T D . USER MANUAL MODEL: VS-44HN 4x4 HDMI Matrix Switcher P/N: 2900-300161 Rev 2...

  • Page 3: Table Of Contents

    Switching Between Protocol 2000 and Protocol 3000 Resetting the VS-44HN 4x4 HDMI Matrix Switcher’s IP Parameters Connecting to the VS-44HN Connecting to the VS-44HN 4x4 HDMI Matrix Switcher via RS-232 Connecting to the VS-44HN 4x4 HDMI Matrix Switcher via Ethernet Upgrading the Firmware...

  • Page 4: Introduction

    Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9: Room Connectivity; GROUP 10: Accessories and Rack Adapters and GROUP 11: Sierra Video Products. Congratulations on purchasing your Kramer VS-44HN 4x4 HDMI Matrix Switcher, which is ideal for the following typical applications: •...

  • Page 5: Getting Started

    (often associated with low quality cables) • Avoid interference from neighboring electrical appliances that may adversely influence signal quality • Position your VS-44HN away from moisture, excessive sunlight and dust VS-44HN - Getting Started...

  • Page 6: Overview

    Overview The VS-44HN is a high quality 4x4 matrix switcher for HDMI signals. It reclocks and equalizes the signals and can route any input to any or all outputs simultaneously. In particular, the VS-44HN features: • Up to 6.75Gbps data rate (2.25Gbps per graphics channel) Suitable for resolutions up to UXGA and 1080p at 60Hz •...

  • Page 7: Defining The Edid

    The Extended Display Identification Data (EDID) is a data-structure provided by a display, to describe its capabilities to a graphics card (that is connected to the display’s source). The EDID enables the VS-44HN to “know” what kind of monitor is connected to the output. The EDID includes the manufacturer’s name, the product type, the timing data supported by the display, the display size, luminance data and (for digital displays only) the pixel mapping data.

  • Page 8: About Hdcp-General Description

    HDCP-enabled devices to eliminate the reproduction of copyrighted material. To protect copyright holders (such as movie studios) from having their programs copied and shared, the HDCP standard provides for the secure and encrypted transmission of digital signals. VS-44HN - Overview...

  • Page 9: Defining The Vs-44Hn 4X4 Hdmi Matrix Switcher

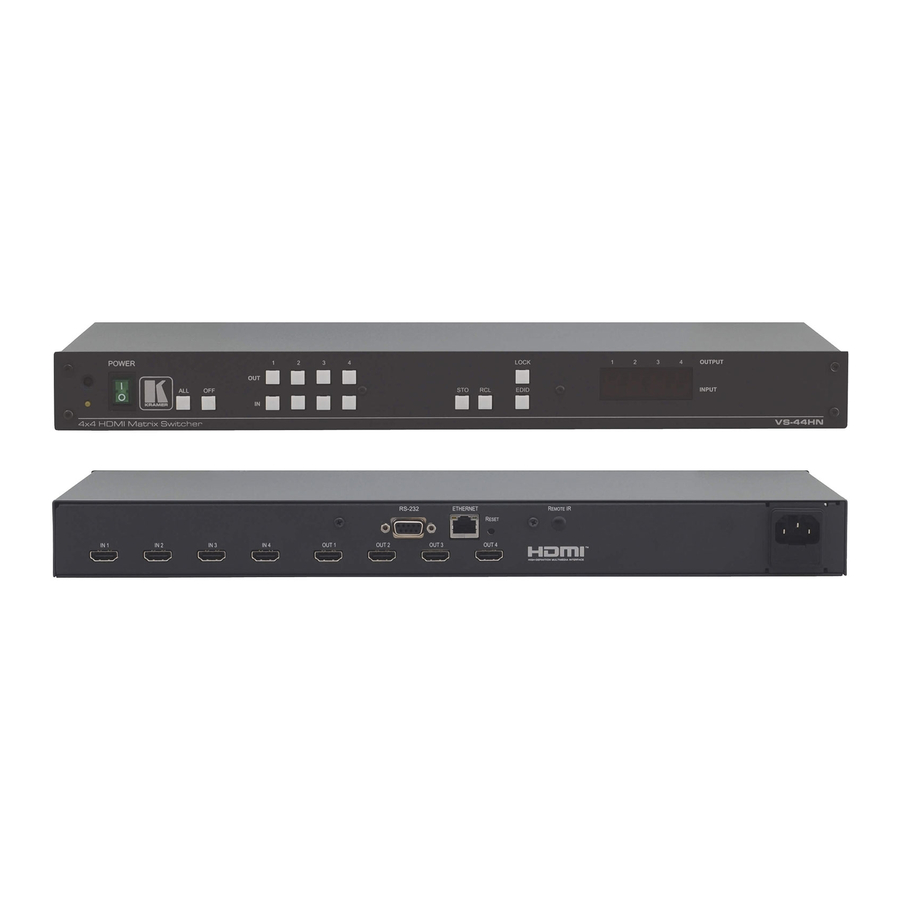

    Defining the VS-44HN 4x4 HDMI Matrix Switcher Figure 1: VS-44HN 4x4 HDMI Matrix Switcher Front Panel Feature Function IR Receiver and Indication LED Signal receiver for the infrared remote control transmitter. LED lights yellow when receiving an IR signal POWER Illuminated Power Switch...

  • Page 10: Figure 2: Vs-44Hn 4X4 Hdmi Matrix Switcher Rear Panel

    Figure 2: VS-44HN 4x4 HDMI Matrix Switcher Rear Panel Feature Function IN HDMI Connectors (1 to 4) Connect to up to 4 HDMI sources OUT HDMI Connectors (1 to 4) Connect to up to 4 HDMI acceptors RS-232 9-pin D-sub Serial Port Connector...

  • Page 11: Using The Ir Transmitter

    This distance can be extended to up to 60 meters when used with three extension cables (Model: C-A35M/A35F-50). Before using the external IR receiver, be sure to arrange for your Kramer dealer to insert the internal IR connection cable (for example, P/N: 505-70434010-S) with the 3.5mm connector that fits into the REMOTE IR opening on the rear panel.

  • Page 12: Installing In A Rack

    Installing in a Rack This section provides instructions for rack mounting the unit. VS-44HN - Installing in a Rack...

  • Page 13: Connecting The Vs-44Hn 4X4 Hdmi Matrix Switcher

    VS-44HN. After connecting your VS-44HN, connect its power and then switch on the power to each device. Figure 3: Connecting the VS-44HN 4x4 HDMI Matrix Switcher To connect the VS-44HN 4x4 HDMI Matrix Switcher as illustrated in the example in Figure 1.
  • Page 14 Ethernet port (see Section 7.2). 4. Connect the device to the mains electricity (not shown in Figure 5. Power on the device. 6. If necessary, acquire the EDID (see Section 6.1) VS-44HN - Connecting the VS-44HN 4x4 HDMI Matrix Switcher...

  • Page 15: Operating The Vs-44Hn 4X4 Hdmi Matrix Switcher

    3. Select the output from which the EDID is to be acquired. 4. Press the EDID button. The EDID is stored when the display returns to normal and the EDID and STO buttons stop flashing. VS-44HN - Operating the VS-44HN 4x4 HDMI Matrix Switcher...
  • Page 16 1 and IN 3). 10. Make sure that the relevant input numbers flash on the display. 11. Press the EDID button. The process is complete when the display returns to normal. VS-44HN - Operating the VS-44HN 4x4 HDMI Matrix Switcher...

  • Page 17: Storing And Recalling A Switching Setting From A Preset

    IN 4 for preset 8). 4. Press the LOCK button to store the current setup. You have to press the LOCK button within 10 seconds or the procedure automatically imes out. VS-44HN - Operating the VS-44HN 4x4 HDMI Matrix Switcher...

  • Page 18: Switching Between Protocol 2000 And Protocol 3000

    To reset the IP parameters to their default values (see Section • Press and hold the RESET button on the rear panel while powering up the device VS-44HN - Operating the VS-44HN 4x4 HDMI Matrix Switcher...

  • Page 19: Connecting To The Vs-44Hn

    7.2.1 Connecting the Ethernet Port directly to a PC You can connect the Ethernet port of the VS-44HN to the Ethernet port on your PC via a crossover cable with RJ-45 connectors. This type of connection is recommended for identification of the factory...

  • Page 20: Figure 4: Local Area Connection Properties Window

    5. Select the Internet Protocol (TCP/IP) and click the Properties Button (see Figure Figure 4: Local Area Connection Properties Window 6. Select Use the following IP Address, and fill in the details as shown in Figure 7. Click OK. VS-44HN - Connecting to the VS-44HN...

  • Page 21: Upgrading The Firmware

    7.2.2 Connecting the Ethernet Port via a Network Hub You can connect the Ethernet port of the VS-44HN to the Ethernet port on a network hub or network router, via a straight through cable with RJ-45 connectors. Upgrading the Firmware For instructions on upgrading the firmware see “Upgrading the VS-44HN Firmware...

  • Page 22: Technical Specifications

    D MENSIONS: 19” x 7.24” x 1U (W, D, H) WEIGHT: 1.7kg (3.75lbs) approx. ACCESSORIES: Power cord, IR transmitter, rack ”ears” OPTIONS: External remote IR receiver cable Specifications are subject to change without notice at http://www.kramerelectronics.com VS-44HN - Technical Specifications...

  • Page 23: Default Communication Parameters

    Ethernet Default Settings Reset Settings IP Address: 192.168.1.39 Power cycle the unit while holding in the Factory Reset button, located on the rear TCP Port #: 5000 panel of the unit. UDP Port #: 50000 VS-44HN - Default Communication Parameters...

  • Page 24: Default Edid

    1680 x 1050p at 60Hz - VESA STD 1600 x 1200p at 60Hz - VESA STD EIA/CEA-861 Information Revision number..3 IT underscan..... Not supported Basic audio....Supported YCbCr 4:4:4....Supported YCbCr 4 2:2....Supported Native formats... 1 VS-44HN - Default EDID...
  • Page 25 CEC physical address..1.0 0.0 Maximum TMDS clock..165MHz Report information Date generated... 08-Jul-12 Software revision..2 60.0 972 Data source....File Operating system..5.1 2600.2.Service Pack 3 Raw data 00,FF,FF,FF,FF,FF,FF,00,2E,4D,00,02,01,00,00,00,18,14,01,03,81,46,27,78,0A,D5,7C,A3,57,49,9C,25, 11,48,4B,FF,FF,80,81,C0,81,00,95,00,81,40,81,80,90,40,B3,00,A9,40,01,1D,00,72,51,D0,1A,20,6E,28, 55,00,7E,88,42,00,00,1A,02,3A,80,18,71,38,2D,40,58,2C,45,00,C4,8E,21,00,00,1E,00,00,00,FC,00,56, 53,2D,34,32,48,4E,0A,20,20,00,00,00,00,00,00,FD,00,32,55,1F,5E,11,00,0A,20,20,20,20,20,20,01,7B, 02,03,1A,71,47,11,13,05,14,84,10,1F,23,0A,06,04,83,05,00,00,65,03,0C,00,10,00,8C,0A,D0,8A,20,E0, 2D,10,10,3E,96,00,58,C2,21,00,00,18,01,1D,80,18,71,1C,16,20,58,2C,25,00,C4,8E,21,00,00,9E,01,1D, 80,D0,72,1C,16,20,10,2C,25,80,C4,8E,21,00,00,9E,01,1D,00,72,51,D0,1E,20,6E,28,55,00,C4,8E,21,00, 00,1E,01,1D,00,BC,52,D0,1E,20,B8,28,55,40,C4,8E,21,00,00,1E,00,00,00,00,00,00,00,00,00,00,00,90 VS-44HN - Default EDID...

  • Page 26: Kramer Protocol 2000

    Kramer Protocol 2000 The Kramer Protocol 2-000 RS-232/RS-485 communication uses four bytes of information as defined below. All the values in the table are decimal, unless otherwise stated. DESTINATION INSTRUCTION 1st byte INPUT 2nd byte OUTPUT 3rd byte MACHINE NUMBER...

  • Page 27: Instruction Codes For Protocol 2000

    NOTE 8 - The reply is as in TYPE 3 above, except that here the OUTPUT is assigned with the value 0 if the setup is not defined / no valid input is detected; or 1 if it is defined / valid input is detected. VS-44HN - Kramer Protocol 2000...
  • Page 28 NOTE 16 - The reply to the “REQUEST WHETHER PANEL IS LOCKED” is as in NOTE 4 above, except that here the OUTPUT is assigned with the value 0 if the panel is unlocked, or 1 if it is locked. VS-44HN - Kramer Protocol 2000...

  • Page 29: Protocol 3000

    Protocol 3000 The VS-44HN can be operated using serial commands from a PC, remote controller or touch screen using the Kramer Protocol 3000. This section describes: • Kramer Protocol 3000 syntax (see Section 12.1) • Kramer Protocol 3000 commands (see Section 12.2)
  • Page 30 CRLF – For device messages; carriage return (ASCII 13) + line-feed (ASCII 10) Command chain separator character When a message string contains more than one command, a pipe ( '|' ) character separates each command. Spaces between parameters or command terms are ignored. VS-44HN - Protocol 3000...
  • Page 31 You can directly enter all commands using a terminal with ASCII communications software, such as HyperTerminal, Hercules, etc. Connect the terminal to the serial or Ethernet port on the Kramer device. To enter CR press the Enter key. ( LF is also sent but is ignored by command parser).

  • Page 32: Kramer Protocol 3000 Commands

    Reset device Administrator SIGNAL? Read if input is valid End User Read device serial number End User VERSION? Read device firmware version End User Switch Video only End User VID? Get Video switch state End User VS-44HN - Protocol 3000...
  • Page 34 For the latest information on our products and a list of Kramer distributors, visit our Web site where updates to this user manual may be found. We welcome your questions, comments, and feedback. Web site: www.kramerelectronics.com E-mail: info@kramerel.com SAFETY WARNING...
