3. Click one of the white circles under the ALL checkbox (for example, IN2).
IN2 is switched to all the outputs.
Select/deselect the relevant checkboxes to route the selected input to specific outputs only.
Set off the InToALL switch to return to normal switching mode.
The selected input is routed to all the outputs.
Disconnecting Audio Outputs
Use the MTX3-16-M
any input.
To disconnect an output:
1. Go to the Routing Settings page.
2. Check a cross-point in the CLOSE row that corresponds to the output that you want to
turn off.
To turn off all outputs, click InToALL and click the circle under the ALL checkbox
that corresponds to CLOSE
The selected output is turned off.
MTX3-16-M – Managing MTX3-16-M from the Embedded Web UI

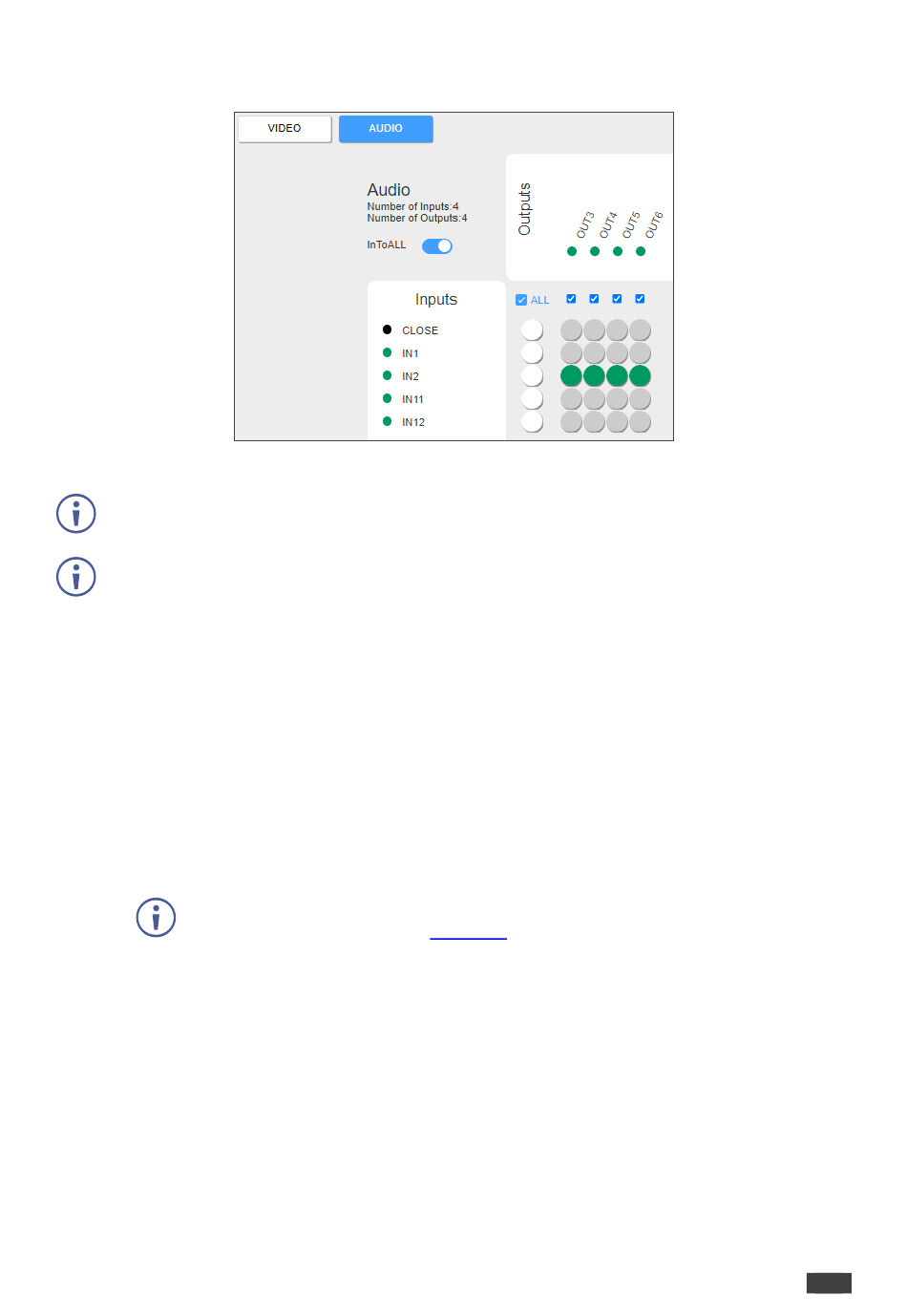

Figure 34: Routing Settings Page – IN2 Routed to All Outputs
embedded web UI to disconnect outputs, so they are not connected to
(Figure 28).
