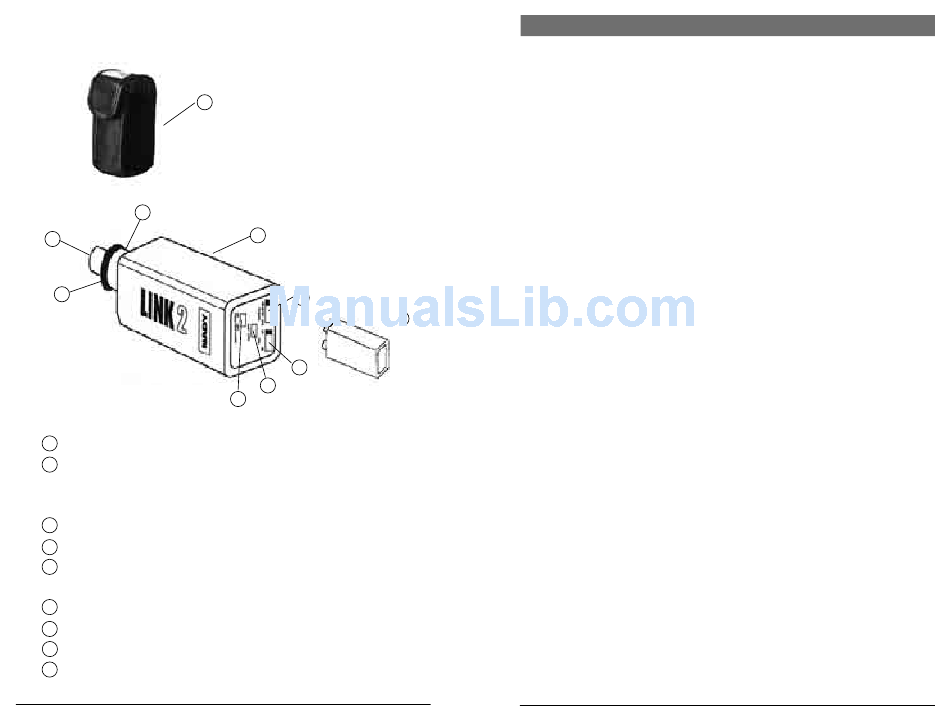

XLR Connector – Connects microphone to the transmitter module for signal input
36
Locking Ring – Locks microphone to the transmitter
37
Optional Pouch – For lavalier bodypack operation (with beltclip and strap ring
38
for securing)
Gain Control Switch – Adjusts the input sensitivity (LO or HI)
39
Low Battery LED – Single flash (power on), lit steady (low battery)
40
Power Switch - Turns the power ON/STANDBY/OFF. In standby position, the
41
power is on and the audio is off.
Phantom Power ON/OFF Switch – Turns the phantom power ON/OFF
42
Battery Compartment
43
Release Button – Press to release XLR connector
44
9V Alkaline Battery
45
16
38
43
41
39
40
42
1. Rackmounting the Receiver
There are 2 options available for rackmounting the Encore I receiver: singly or side-
by-side with another Encore Series receiver.
a. Single mounting: Remove the receiver SIDE MOUNT CLIP (1) from each side of
the receiver (as shown) and slide in the optional ERM-12 RACK EARS (9).
b. Side-by-side double mounting: After removing the SIDE MOUNT CLIPS (1)
from both Encore receivers, join the two receivers with the EJC-2 JOINING CLIP
(10) and attach the ERM-22 RACK EARS (12) as shown. (Note: Do not mount
the receiver in a rack directly above an amplifier or other source of high
heat – this could degrade the performance of the Encore I. Always ensure
adequate airflow and heat dissipation in any rack configuration.)
2. Powering the Receiver
Plug the 12V AC/DC ADAPTER (15) provided into the DC INPUT JACK (11) on the
back of the receiver. Then plug the power supply into an AC outlet. (Note: Any
12V DC source with 400mA capability can also be used.) Press the POWER
SWITCH (8) once to turn on the receiver. The POWER ON LED (7) will now
light and the receiver is operational.
3. Antenna
45
The Encore I receiver is supplied with a TELESCOPIC ANTENNA (16). This should be
extended fully to obtain maximum range. Optimal antenna position is vertical. For
maximum range, it is always best to maintain a line of sight (no obstructions) between
the receiver antenna and the transmitter at all times whenever possible.
4. Mute (Squelch) Adjustment
In normal operation, the MUTE CONTROL (2) should be set fully counterclockwise to
the factory preset minimum RF level. However, in areas of high RF activity, the mute
(or squelch, as it is sometimes called) may need to be adjusted to compensate for the
adverse conditions in a particular location. If, with the transmitter off, one or more
LEDs of the 5 LED RF LEVEL DISPLAY (4) flicker or stay on, the squelch control should
be turned clockwise until the LEDs extinguish. When the squelch is properly adjusted,
the RF LEVEL LED displays will only light when the system transmitter is turned on.
Turning the squelch control too far clockwise will reduce the range, but yield a quieter
mute (squelch) function. When the 5 LED RF LEVEL display extinguishes, the trans-
mitter is out of range for that given location, and the user should move closer to the
receiver to re-establish the radio link.
