Nady Wireless Systems are type accepted under FCC rules parts 90, 74 and 15. The
device complies with RSS-210 of Industry & Science Canada. Operation is subject to
the following two conditions: (1) this device may not cause harmful interference and
(2) this device must accept any interference received, including interference that may
cause undesired operation.
NADY SYSTEMS, INC.
6701 Shellmound Street • Emeryville, CA 94608 USA
Tel: 510/652-2411 • Fax: 510/652-5075
www.nady.com
VHF Wireless Microphone System
DigiTRU Diversity™
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Nady Systems ENCORE II
Summary of Contents for Nady Systems ENCORE II
- Page 1 Nady Wireless Systems are type accepted under FCC rules parts 90, 74 and 15. The device complies with RSS-210 of Industry & Science Canada. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation.
-
Page 2: Table Of Contents
CONTENTS CONTENTS ...2 INTRODUCTION...3 USING THIS MANUAL ...3 SYSTEM FEATURES ...4 ENCORE II RECEIVER ...5 WHT HANDHELD MICROPHONE TRANSMITTER ...8 WLT LAVALIER/LAPEL OR HEADWORN MICROPHONE BODYPACK TRANSMITTER ...10 WGT INSTRUMENT BODYPACK TRANSMITTER ...12 THE LINK 2™ PLUG-IN TRANSMITTER...14 SPECIFICATIONS ...17... -
Page 3: Introduction
This manual will first list the features of the Encore II and then will take you step by step to show you how to operate your new system. After reading the receiver instruc- tions, turn to the section of the booklet that covers the type of transmitter used with your new system. -
Page 4: Specifications
• Unique snap-out panel locking tabs for single receiver or dual receiver (side-by-side) optional rack mounting WHT HANDHELD MIC TRANSMITTER • Features the Nady DM -10D unidirectional neodymium dynamic cartridge for optimum true sound, maximum feedback rejection and minimal handling noise • OFF/STANDBY/ON switch allows convenient audio muting with the transmitter “ON”... -

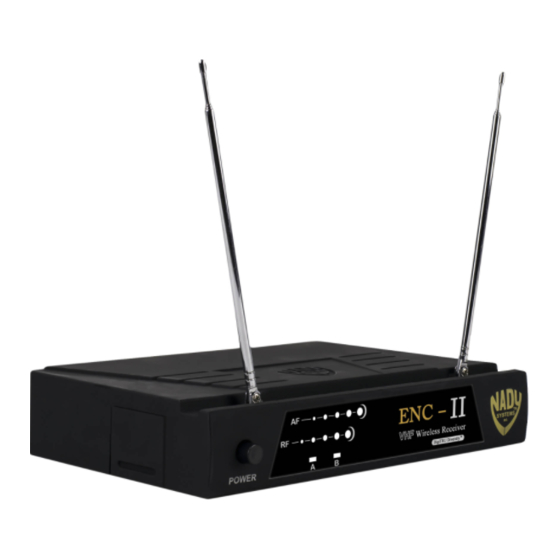

Page 5: Encore Ii Receiver
9V Alkaline Battery 1. Rackmounting the Receiver There are 2 options available for rackmounting the Encore II receiver: singly or side- by-side with another Encore Series receiver. a. Single mounting: Remove the receiver SIDE MOUNT CLIP (1) from each side of the receiver (as shown) and slide in the optional ERM-12 RACK EARS (9). - Page 6 The Link 2 is now ready to use. The A and/or B DIVERSITY LED INDICA- TORS (3) and most or all of the RF DISPLAY LEDs (4) on the Encore II receiver should now be lit, indicating a received signal from the transmitter. When...
-
Page 7: The Link 2™ Plug-In Transmitter
If it does not conform or is supplied with a different connector, you must use an appropriate adapter or the lav mic may not work with the Link 2. If you have any questions, please contact your Nady dealer or Nady Systems’ Customer Service Department. -
Page 8: Wht Handheld Microphone Transmitter
3. The microphone is now ready to use. The A and/or B DIVERSITY LED INDICATORS (3) and most or all of the RF LEVEL DISPLAY LEDs (4) on the Encore II receiver should now be lit, indicating a received signal from the transmitter. When ready to speak, slide the transmitter switch to the ON position. -
Page 9: Wgt Instrument Bodypack Transmitter
3. The WGT transmitter is now ready to use. The A and/or B DIVERSITY LED IN- DICATORS (3) and most or all of the RF DISPLAY LEDs (4) on the Encore II receiver should now be lit, indicating a received signal from the transmitter. Adjust the volume of the receiver as per the Audio Output Instrument Connections section of the above Encore II receiver instructions. -
Page 10: Wlt Lavalier/Lapel Or Headworn Microphone Bodypack Transmitter
4. The microphone is now ready to use. The A and/or B DIVERSITY LED INDICA- TORS (3) and most or all of the RF DISPLAY LEDs (4) on the Encore II receiver should now be lit, indicating a received signal from the transmitter. When ready to speak,...
