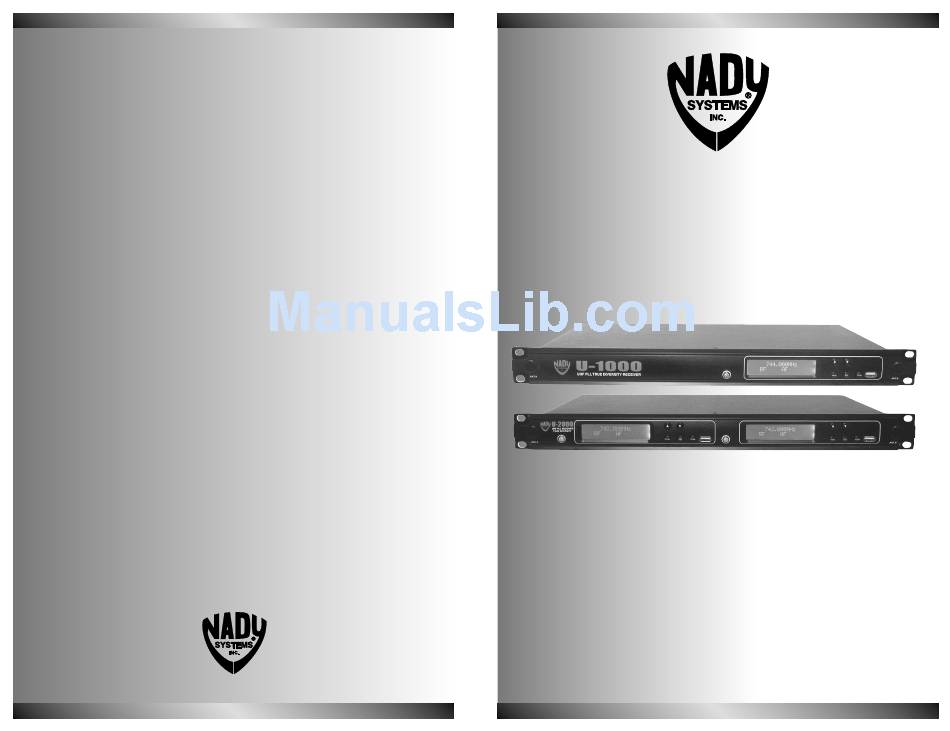

- Page 1 U U - - 1 1 0 0 0 0 0 0 S S e e r r i i e e s s 1000 Channel PLL Frequency Synthesized UHF Wireless Microphone and Instrument System O w n e r s M a n u a l n a d y .
- Page 2 INTRODUCTION Thank you for choosing the Nady U-1000 Series wireless system, and congratulations on your choice. The Nady U-1000 Series systems are by far the best performance and price value available in professional UHF wireless. Offering clear channel operation on the wide open, uncluttered UHF band for...
-
Page 3: System Features
10300-65 ...HM-3 Headmic (TM) Unidirectional headworn mic w/3-pin mini XLR Optional Accessories 3008-05 ...Remote Antenna for U-1000/2000 Rx, Band 1 3008-06 ...Remote Antenna for U-1000/2000 Rx, Band 2 3008-07 ...AD-4U UHF Antenna Distribution System 3008-04 ...Antenna Rack Kit for U-1000/2000 Rx 10300-14 ...Condenser element cartridge for UH-1000... -
Page 4: Operating Instructions
Make sure the R/A Number is clearly marked on the outside of package. Cashiers’ check or money order is enclosed (if not prepaid with credit card), and ship the unit prepaid to: Nady Systems, Inc., Service Department, 6701 Shellmound Street, Emeryville, CA 94608. Include a brief description of the problem you are experiencing. -
Page 5: Operating Instructions
Power Requirements ...115 VAC or 240 VAC, external AC-DC adaptor Antenna ...Right angle or external remote Dimensions ...U-1000/2000 19” full rack x 1 RU 19” x 11.75” x 1.75” [W / D / H] (49 cm x 30 cm x 4.5 cm) Weight (power supply included)...U-1000 113 oz. - Page 6 OPERATING INSTRUCTIONS U-1000, U-2000 Receiver next location. After finishing the edit hold the SET (7) button until the curser stops blinking. 4. Group and Channel (Preset) Choose the UHF-1000 operating frequency by selecting one of the 24 Groups and one of the 40 Channels in each group.
-
Page 7: System Operation
If you have any questions, please contact the Nady Systems Customer Service Department. See SERVICE section, pg. 21.) - Page 8 OPERATING INSTRUCTIONS UH-1000 Handheld Microphone 1. Capsule with metal grill 6. Battery Compartment 2. LCD display 7. Cap 3. Battery weak / Audio MUTE indicator 8. SET button 4. Audio MUTE switch 9. UP button 5. Power ON/OFF switch 10. DOWN button Connecting Audio Output There are two audio outputs on the back of the receiver.
- Page 9 SYSTEM OPERATION Level adjustment UB-1000 Transmitter The input level has four choices. “1” is the lowest gain, and “4” is the highest. For instrument, lavalier mic, and HM-1 headset mic use the normal setting of “3”. For HM-1 use setting “1”. When ready to speak, move the audio MUTE switch to the OFF position.
- Page 10 OPERATING INSTRUCTIONS UH-1000 Handheld Microphone 6. Sensitivity Set Level (Input level sensitivity) In input level sensitivity has four choices. “1” is lowest gain, and “4” is highest gain. In the Sens Set Level Menu, hold the SET (8) button for 3 seconds. The curser will blink; press the UP (9) or DOWN (10) buttons to select 1 of 4 level setting.
- Page 11 OPERATING INSTRUCTIONS UB-1000 Bodypack Transmitter 6. Sensitivity Set Level (Input level sensitivity) In input level sensitivity has four choices. “1” is lowest gain, and “4” is highest gain. In the Sens Set Level Menu, hold the SET (10) button for 3 seconds. The curser will blink;...
- Page 12 OPERATING INSTRUCTIONS UB-1000 Bodypack Transmitter 1. Antenna 7. Mini USB port 2. Battery weak / Audio MUTE indicator 8. Cover release button 3. Audio MUTE switch 9. Battery Compartment 4. Mini-XLR connector 10. SET button 5. Power ON/OFF switch 11. UP button 6.
