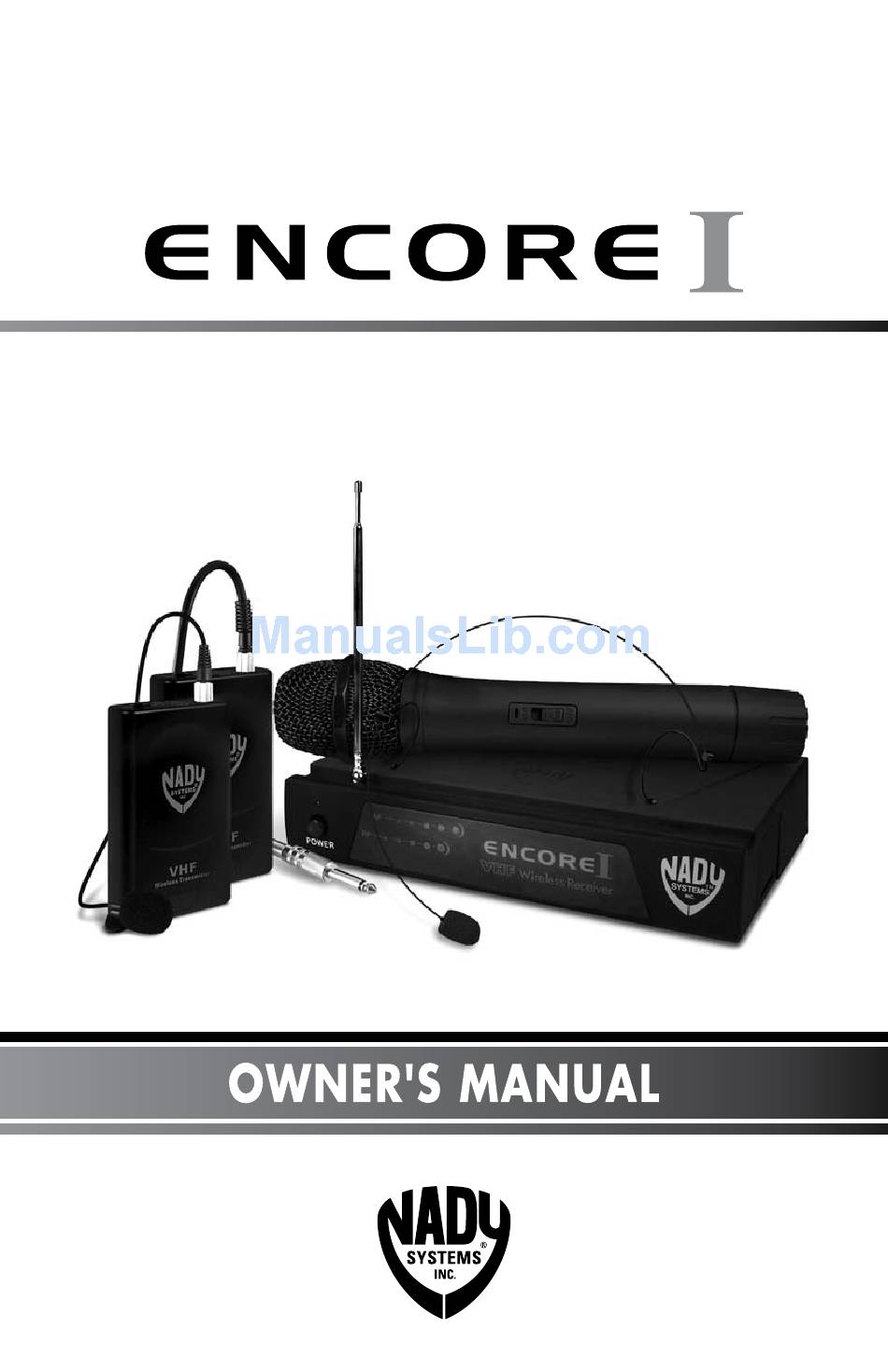

- Page 1 VHF Wireless Microphone System...
-
Page 2: Table Of Contents
Thank you for choosing the Nady Encore I wireless microphone system, we know you will be very pleased with its performance and features. The Encore I is loaded with top professional operating features and is the best performance and price value available in VHF dual receiver wireless systems. -
Page 3: System Features
• Available on selected frequencies in the VHF high band (171‑216 MHz) for interference‑free, long‑range performance • Proprietary companding circuitry for an industry-best 120dB Dynamic Range, and the clearest, most natural sound available • Operating Range: Up to 250 feet typical (depending on site conditions) — up to 500+ feet line-of-sight • Noise-free transmitter ON-OFF operation ENCORE I RECEIVER • Half-rack receiver design with retractable front panel antenna • RF and AF 5-LED displays for monitoring incoming signal strength and audio level • Balanced XLR and unbalanced adjustable 1/4” jack outputs • Mute (squelch) adjust control • Externally powered by AC/DC power adapter • Unique snap-out panel locking tabs for single receiver or dual receiver (side‑by‑side) optional rack mounting... -
Page 4: Encore I Receiver
Press the POWER SWITCH (8) once to turn on the receiver. The POWER ON LED (7) will now light and the receiver is operational. 3. Antenna The Encore I receiver is supplied with a TELESCOPIC ANTENNA (16). This should be extended fully to obtain maximum range. Optimal antenna position is vertical. For maximum range, it is always best to maintain a line of sight (no obstructions) between the receiver antenna and the transmitter at all times whenever possible. - Page 5 UNBALANCED OUTPUT JACK (13) on the rear panel of the receiver. Plug the other end of the cord into an amplifier, effects, or mixing board. Adjust the appropriate VOLUME CONTROL (6) for the channel being used on the Encore I receiver clockwise to about 3/4 rotation, until the mixed volume level is comfortable for your application. This setting is roughly equivalent to a direct instrument cord connection. Turning the volume up to maximum will provide...
- Page 6 12-15V VOLUME MUTE UNBALANCED OUT DC INPUT BALANCED OUT...
-
Page 7: Wht Handheld Microphone Transmitter
Adjust the volume of the receiver as per the Audio Output Microphone Connection section of the above Encore I receiver instructions. The AF LEVEL LED DISPLAY (5) on the Encore I receiver will light up to 5 LEDs (4 green and 1 red) for all input signals. Occasional flickering on and off during use of the top red LED indicator in this display is normal, however if the red LED stays on continuously, it means the signal is too loud and there is the possibility of overload distortion. -
Page 9: Wlt Lavalier/Lapel Or Headworn Microphone Bodypack Transmitter
Connection section of the above Encore I receiver instructions. The AF LEVEL LED DISPLAY (5) on the Encore I receiver will light up to 5 LEDs (4 green and 1 red) for all input signals. Occasional flickering on and off during use of the top red LED indicator in this display is normal, however if the red LED stays on continuously, it means the signal is too loud and there is the possibility of overload distortion. - Page 10 Opening Battery Compartment...
-
Page 11: Wgt Instrument Bodypack Transmitter
Set for the maximum possible gain and headroom without noticeable distortion on the high level peaks). The AF LEVEL LED DISPLAY (5) on the Encore I receiver will light up to 5 LEDs (4 green and 1 red) for all input signals. Occasional flickering on and off during... - Page 12 Opening Battery Compartment...
-
Page 13: Specifications
SPECIFICATIONS ENCORE I OVERALL SYSTEM PERFORMANCE 25-20,000 Hz, +/-3dB Frequency Response 120dB Dynamic Range < 0.3% Total Harmonic Distortion 169‑216 MHz RF Carrier Frequency Range +/- 0.005%, crystal controlled Frequency Stability FM (F3E), +/-20KHz max. Modulation Up to 250 ft. typical (depending on site conditions); Operating Range up to 500+ feet optimum line-of-sight ENCORE I RECEIVER Power ON/OFF, volume control, mute control Controls Balanced XLR and unbalanced adjustable 1/4”... -
Page 14: Service Information
Make sure the R/A Number is clearly marked on the outside of the package that you are returning. If your unit is out of warranty, please enclose a cashier’s check or money order (or pay by credit card) per instructions by the Nady Service Department. Ship your unit prepaid to: Nady Systems, Service Department, 6701 Shellmound Street, Emeryville, CA 94608. Include a brief description of the problem you are experiencing. For service of a unit under warranty, please follow the instructions in the following section. -
Page 15: Warranty
Nady Systems, Inc. for repair. The warranty is null and void if any Nady serial number has been removed or defaced. How To Obtain Service: 1) If factory service is required, please contact our Service Department at (510) 652-2411 for a return authorization (R/A) number. - Page 16 Nady Wireless Systems are type accepted under FCC rules parts 90, 74 and 15. The device complies with RSS-210 of Industry & Science Canada. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. 6701 Shellmound Street | Emeryville, CA USA 94608 T 510.652.2411 | F 510.652.5075 | www.nady.com...
