NADY SYSTEMS, INC.
6701 Shellmound Street
Emeryville, CA 94608 USA
Tel: 510.652.2411 • Fax: 510.652.5075
E-mail: service@nadywireless.com
www.nadywireless.com

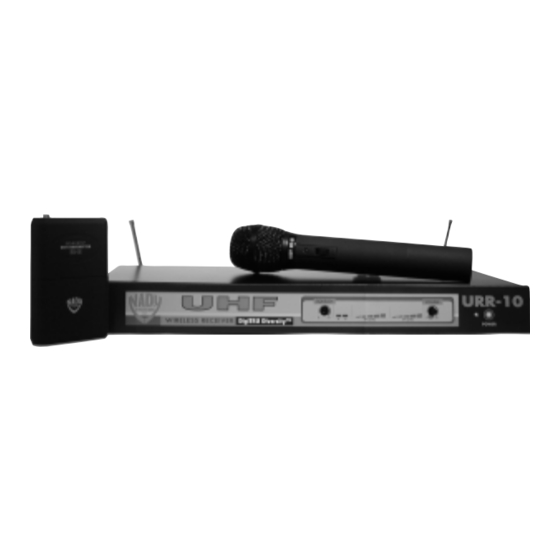

URR-10
UHF Wireless Microphone System
URR-10 RECEIVER
UB-10 BODYPACK TRANSMITTER
UH-10 HANDHELD MICROPHONE
OWNER'S MANUAL
Advertisement
Related Manuals for Nady Systems UB-10
Summary of Contents for Nady Systems UB-10
- Page 1 NADY SYSTEMS, INC. 6701 Shellmound Street Emeryville, CA 94608 USA Tel: 510.652.2411 • Fax: 510.652.5075 E-mail: service@nadywireless.com www.nadywireless.com URR-10 UHF Wireless Microphone System URR-10 RECEIVER UB-10 BODYPACK TRANSMITTER UH-10 HANDHELD MICROPHONE OWNER'S MANUAL...
- Page 2 (if not prepaid with a credit card). Ship the unit prepaid to: Nady Systems, Inc., Service Depart- ment, 6701 Shellmound Street, Emeryville, CA 94608. Include a brief description of the problems you are experiencing.
-
Page 3: Specifications
• Tone Squelch™ for locking out potential interference • Choice of transmitters: • UB-10 Bodypack with unique 3-way switch for selecting input type: instrument (guitar, bass, etc.), headmic™ headworn mic, or lavalier/lapel mic • UH-10 Handheld microphone with a powerful neodymium cartridge that... - Page 4 24. BATTERY COMPARTMENT 25. 9V ALKALINE BATTERY 26. INPUT SELECTOR SWITCH 27. 3.5mm LOCKING JACK 28. INSTRUMENT CORD 29. HEADWORN MIC 30. LAVALIER MIC 31. OFF/STANDBY/ON SWITCH 32. BATTERY INDICATOR LED 33. INPUT LEVEL CONTROL 34. CLIP URR-10 RECEIVER 1. Rackmounting the Receiver The URR-10 is supplied with RACK EARS (17) which can be attached with the screws provided on the front of the side panels to enable rackmounting the receiver.
- Page 5 Turning the volume up to “10” will provide 4dB gain over a cord. Microphone Connection (using the UB-10 transmitter with either a headworn or lavalier microphone or the UH-10 handheld microphone transmitter) For microphone use, either the BALANCED MIC AUDIO OUTPUT XLR (14) or the 1/4"...
- Page 6 Occasional flickering on and off during use of the top red LED indicator in this display is normal, however if the red LED stays on continuously, turn down the instrument volume or the INPUT LEVEL CONTROL (33) on the UB-10 transmitter, or noticeable distortion may result.
- Page 7 For optimum performance, an INPUT LEVEL CONTROL (33) is provided on the top panel of the UB-10. Adjust the gain by turning the control with your thumb. For instrument use, it is recommended that this control be turned to maximum gain.
