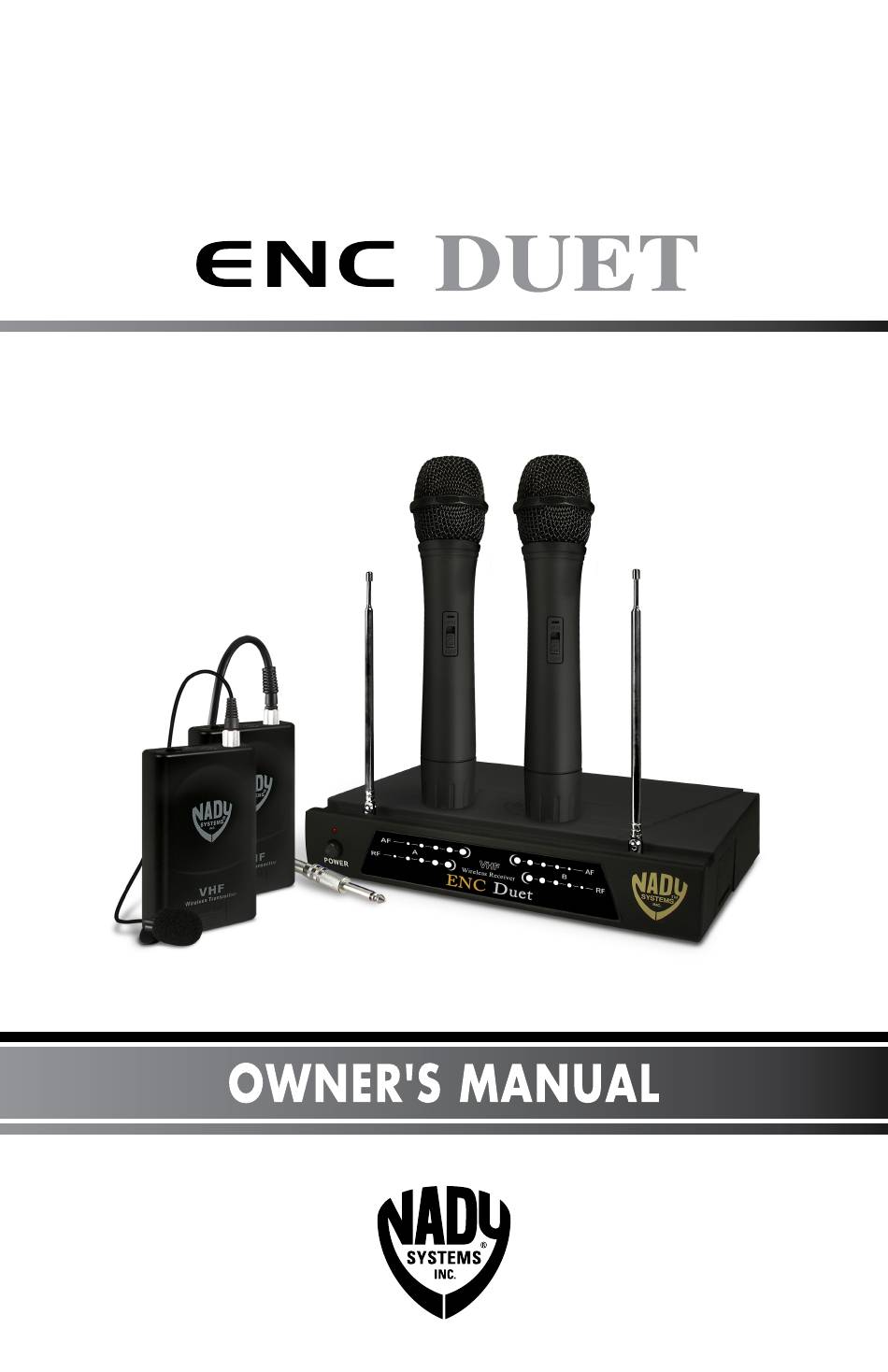

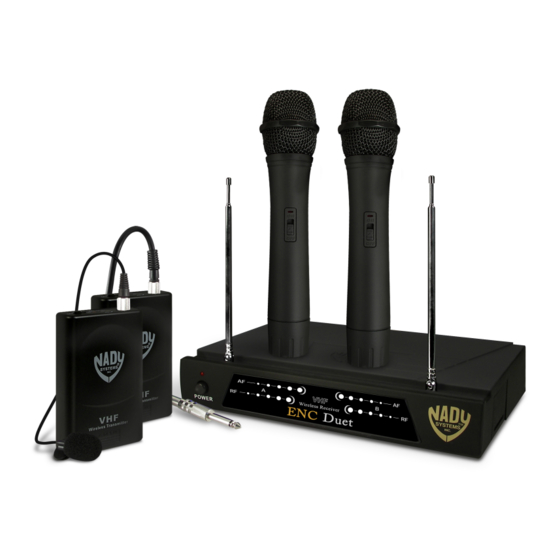

- Page 1 Dual Receiver VHF Wireless Microphone System...
-
Page 2: Table Of Contents
CONTENTS CONTENTS ....................2 INTRODUCTION .....................2 USING THIS MANUAL ..................2 SYSTEM FEATURES ..................3 ENC-DUET RECEIVER ..................4 WHT HANDHELD MICROPHONE TRANSMITTER ..........7 WLT LAVALIER/LAPEL OR HEADWORN MICROPHONE BODYPACK TRANSMITTER................9 WGT INSTRUMENT BODYPACK TRANSMITTER ..........11 SPECIFICATIONS ...................13 SERVICE INFORMATION ................14 WARRANTY ....................15 INTRODUCTION Thank you for choosing the Nady Enc-DUET dual receiver wireless microphone system, we know you will be very pleased with its performance and features. -
Page 3: System Features
SYSTEM FEATURES • Dual channel system for simultaneous operation of two transmitters • Available on two selected frequencies in the VHF high band (171-216 MHz) for interference‑free, long‑range performance • Proprietary companding circuitry for an industry-best 120dB Dynamic Range, and the clearest, most natural sound available • Operating Range: Up to 250 feet typical (depending on site conditions)— up to 500+ feet line-of-sight • Noise-free transmitter ON/OFF operation • Rugged, foam-padded traveling case provides easy, safe transport and storage ENC- - - DUET RECEIVER • Half-rack dual receiver design (Channel A and Channel B) with retractable front panel dual antennas • Dual RF and AF 5-LED displays for monitoring incoming signal strength and audio level on both channels • Dual balanced XLR and unbalanced adjustable 1/4" jack outputs • Dual mute (squelch) adjust controls • Externally powered by AC/DC power adapter... -
Page 4: Enc-Duet Receiver
ENC DUET RECEIVER 1. Rackmounting the Receiver There are two options available for rackmounting the Enc-DUET receiver: singly or side‑by‑side with another Enc Series receiver. Single mounting: Remove the receiver SIDE MOUNT CLIP (1) from each side of the receiver (as shown) and slide in the optional ERM-12 RACK EARS (9). Side-by-side double mounting: After removing the SIDE MOUNT CLIPS (1) from... - Page 5 5. Connecting the Audio Output The Enc-DUET receiver provides both a fixed mic level BALANCED AUDIO OUTPUT XLR (14) for each channel and an adjustable line level A + B UNBALANCED AUDIO OUTPUT 1/4" JACK (13) which provides a mixed (summed) Ch A plus Ch B output sig- nal. The mixed level from the A + B UNBALANCED OUTPUT is controlled by the rear panel VOLUME CONTROLS (6) for each channel. (Note: As when making any connection, make sure the amplifier or mixing board volume is at the minimum level before plugging in the receiver to avoid possible sound system damage.
-
Page 7: Wht Handheld Microphone Transmitter
WHT HANDHELD MICROPHONE TRANSMITTER 1. Unscrew the BATTERY COMPARTMENT COVER (17) and remove, exposing the BATTERY HOLDER (18). Insert a fresh 9V ALKALINE BATTERY (19), observing the correct polarity as marked, and screw the cover back on to the microphone. Make sure the cover is screwed on completely. A fresh alkaline battery can last up to 16 hours in use, but in order to ensure optimum performance, it is recommended that you replace the battery after every 10 hours of use. -
Page 9: Wlt Lavalier/Lapel Or Headworn Microphone Bodypack Transmitter
WLT LAVALIER/LAPEL OR HEADWORN MICROPHONE BODYPACK TRANSMITTER 1. Snap open the BATTERY COMPARTMENT (22) and insert a fresh 9V BATTERY (23), observing the correct polarity. Close the compartment. 2. The WLT is provided with a 3.5 mm LOCKING JACK (24) for connecting the microphone. - Page 10 Opening Battery Compartment...
-
Page 11: Wgt Instrument Bodypack Transmitter
WGT INSTRUMENT BODYPACK TRANSMITTER 1. Snap open the BATTERY COMPARTMENT (30) and insert a fresh 9V BATTERY (31), observing the correct polarity. Close the compartment. The WGT is provided with a 3.5 mm LOCKING JACK (32) for connecting the INSTRUMENT CABLE (35). To secure the connection, turn the metal slip ring on the plug clockwise to thread it on to the jack. To unplug, reverse the process. Slip the transmitter into a pocket or clip on to your clothes or instrument strap. - Page 12 Opening Battery Compartment...
-
Page 13: Specifications
SPECIFICATIONS DUET OVERALL SYSTEM PERFORMANCE - - - Frequency Response 120dB Dynamic Range < 0.3% Total Harmonic Distortion 2 channels between 169-216 MHz RF Carrier Frequency Range +/- 0.005%, crystal controlled Frequency Stability FM (F3E), +/-20KHz max. Modulation Up to 250 ft. typical (depending on site conditions); Operating Range up to 500+ feet optimum line-of-sight DUET RECEIVER - - - Dual receivers (Channel A and Channel B) Reception Mode Power ON/OFF, dual volume and mute controls Controls (one each, Ch A/B) Dual balanced XLR and unbalanced adjustable... -
Page 14: Service Information
SERVICE INFORMATION In the U.S. If you are experiencing operational problems with your system, please refer to the Support page at www.nady.com for assistance. Should your wireless system require service, please contact the Nady Service Department at (510) 652-2411 to obtain a Return Authorization (R/A) Number and service quote (if out of warranty). Make sure the R/A Number is clearly marked on the outside of the package that you are returning. If your unit is out of warranty, please enclose a cashier’s check or money order (or pay by credit card) per instructions by the Nady Service Department. Ship your unit prepaid to: Nady Systems, Service Department, 6701 Shellmound Street, Emeryville, CA 94608. Include a brief description of the problem you are experiencing. For service of a unit under warranty, please follow the instructions in the following section. -
Page 15: Warranty
Nady Systems, Inc. for repair. The warranty is null and void if any Nady serial number has been removed or defaced. How To Obtain Service: 1) If factory service is required, please contact our Service Department at (510) 652-2411 for a return authorization (R/A) number. Make sure the R/A number is clearly marked on... - Page 16 Nady Wireless Systems are type accepted under FCC rules parts 90, 74 and 15. The device complies with RSS-210 of Industry & Science Canada. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. 6701 Shellmound Street | Emeryville, CA USA 94608 T 510.652.2411 | F 510.652.5075 | www.nady.com...
