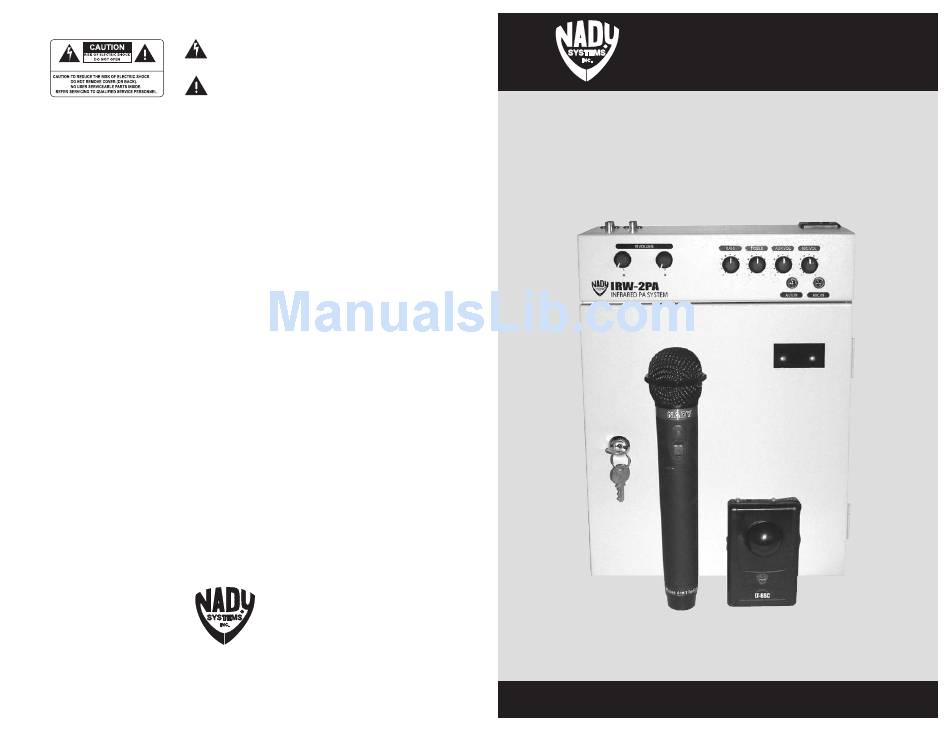

Nady Systems IRW-2PA Owner's Manual

Infrared wireless microphone pa system

Advertisement

Quick Links

IMPORTANT SAFETY INSTRUCTIONS WARNING
ATTENTION
:
RISQUE DE CHOC ELECTRIQUE NE PAS OUVRIR
When using this electronic device, basic precautions should always be taken, including the
following:
1. Read all instructions before using the product.
2. Do not use this product near water (e.g., near a bathtub, washbowl, kitchen sink, in a wet
basement, or near a swimming pool, etc.).
3. This product should be used only with a cart or stand that will keep it level and stable and
prevent wobbling.
4. This product, in combination with headphones or speakers, may be capable of producing
sound levels that could cause permanent hearing loss. Do not operate for a long period
of time at a high volume level or at a level that is uncomfortable. If you experience any
hearing loss or ringing in the ears, you should consult an audiologist.
5. The product should be positioned so that proper ventilation is maintained.
6. The product should be located away from heat sources such as radiators, heat vents, or
other devices (including amplifiers) that produce heat.
7. The product should be connected to a power supply only of the type described in the
operating instructions or as marked on the product. Replace the fuse only with one of the
specified type, size, and correct rating.
8. The power supply cord should: (1) be undamaged, (2) never share an outlet or extension
cord with other devices so that the outlet's or extension cord's power rating is exceeded,
and (3) never be left plugged into the outlet when not being used for a long period of
time.
9. Care should be taken so that objects do not fall into, and liquids are not spilled through,
the enclosure's openings.
10. The product should be serviced by qualified service personnel if:
A. The power supply cord or the plug has been damaged.
B. Objects have fallen into, or liquid has been spilled onto the product.
C. The product has been exposed to rain.
D. The product does not appear to operate normally or exhibits a marked change in
performance.
E. The product has been dropped, or the enclosure damaged.
11. Do not attempt to service the product beyond what is described in the user maintenance
instructions. All other servicing should be referred to qualified service personnel.
This unit is to be installed by qualified personnel only.
NADY SYSTEMS, INC.
6701 Shellmound Street • Emeryville, CA 94608 USA
Tel: 510/652-2411 • Fax: 510/652-5075
www.nady.com
An equilateral triangle enclosing a lightning flash/arrowhead symbol
is intended to alert the user to the presence of uninsulated
"dangerous voltage" within the product's enclosure which may be of
sufficient magnitude to constitute a risk of electric shock.
An equilateral triangle enclosing an exclamation point is intended to
alert the user to the presence of important operating and service
instructions in the literature enclosed with this unit.
IRW-2PA
INFRARED WIRELESS
MICROPHONE PA SYSTEM
O W N E R S M A N U A L

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IRW-2PA and is the answer not in the manual?

Questions and answers

Summary of Contents for Nady Systems IRW-2PA

  • Page 1 11. Do not attempt to service the product beyond what is described in the user maintenance instructions. All other servicing should be referred to qualified service personnel. This unit is to be installed by qualified personnel only. NADY SYSTEMS, INC. 6701 Shellmound Street • Emeryville, CA 94608 USA Tel: 510/652-2411 • Fax: 510/652-5075 www.nady.com...
  • Page 2 CONTENTS ...2 INTRODUCTION ...3 USING THIS MANUAL ...3 SYSTEM CONTENTS ...3 SYSTEM FEATURES ...4 INSTALLATIONS ...5 IRW-2PA RECEIVER ...8 IRW-1S INFRARED SENSORS ...10 HT-6SC HANDHELD MICROPHONE TRANSMITTER ... 11 LT-6SC BODYPACK TRANSMITTER ...12 OPTIONAL ACCESSORIES ...14 SERVICE ...14 SPECIFICATIONS ...15 SAFTEY WARNING...
  • Page 3 This manual will first list the features of the IRW-2PA and then will take you step by step to show you how to install and operate your new system. After reading the PA receiver instructions, turn to the section of the booklet that covers the type of transmitter used with your new system.
  • Page 4 If there is no audio, check your speaker connections and verify proper impedance is being used. If there is still no audio, try turning the IRW-2PA power switch on and off in case the amp went into short-circuit protection mode due to accidental wiring during speaker installation.
  • Page 5 • IRW-2PA LED indicators can be viewed with ease. • If placing the IRW-2PA on a table or shelf, it should be securely fastened so that it cannot fall over or cause any damage if the transmitters accidentally fall when inserted or removed from the case.
  • Page 6 If there is no audio, check your speaker connections and verify proper impedance is being used. If there is still no audio, try turning the IRW-2PA power switch on and off in case the amp went into short-circuit protection mode due to accidental wiring...
  • Page 7 IRW-2PA when powered on. The Channel A and B IR LED indicators, located on the front panel of the IRW-2PA, will light green when an infrared signal on the corresponding channel is detected.
  • Page 8 Turn off the IRW-2PA when not charging or in use. 2. Inputs The IRW-2PA has two additional inputs allowing for up to four audio signals to be heard simultaneously when used with the wireless transmitters. An external line-level device such as a CD/MP3-player, VCR audio, tape deck, or keyboard can be added to the mix using the Aux Input (4) 1⁄4”...
