Teknion INTERPRET WORK TABLE Installation Manuals page 8

interpret
Installation Guides
Section: TABLES
Description: BEGINNING WORK TABLE AND FINISH WORK TABLE - CURVED LEG
Beginning Work Table frame

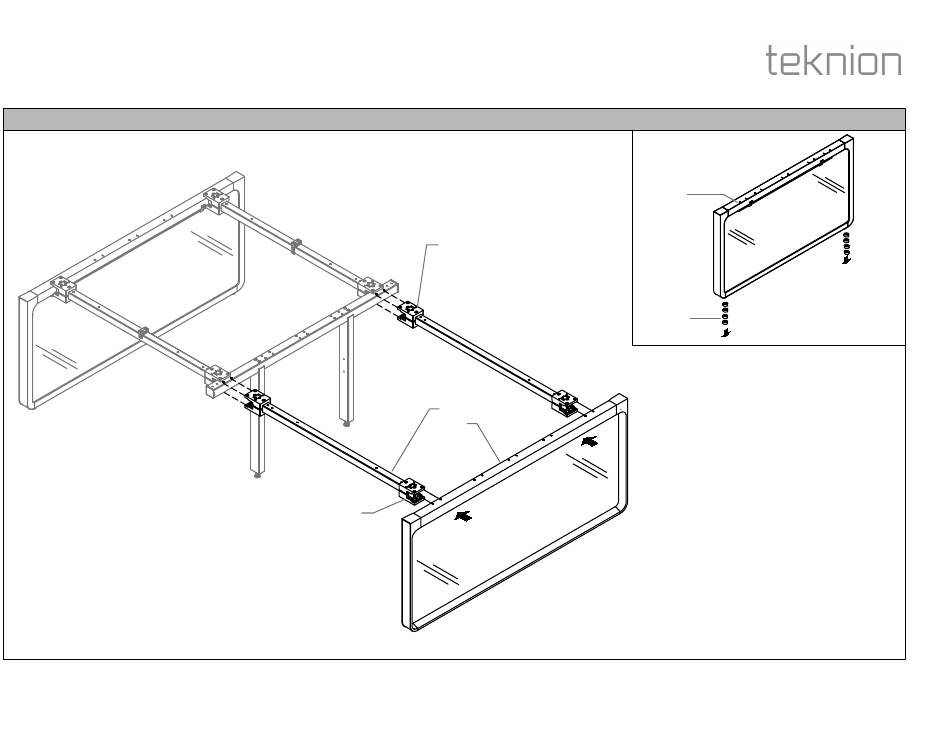

STEP 5: Remove Pucks from Curve Leg Gable. Then bring Curve Leg and Transverse Beams Assemblies to the Work Table Middle Frame. Line up the set of holes on the top of Gable Mid
Curve Leg Gable with Clamp Brackets holes.
CONNECT FINAL GABLE AND BEAMS
Mid Gable
Connection
BE1
BA1
End Gable
Connection
Date: Jan 2018 Page No:
INT_504b
BA1
BA2
Finish Gable (CA1)
8 of 14
