Teknion interpret WWSPK Installation Manuals

Height adjustable pucks, height adjustable cantilever, bolt kit

Advertisement

Quick Links

interpret
Installation Guides
Section:
FRAMES, SUPPORTS AND WORKSURFACES
Description:
HEIGHT ADJUSTABLE CANTILEVER, PUCKS AND BOLT KIT - SINGLE SIDED FRAME
Height Adjustable Pucks (WWSPK), Height Adjustable Cantilever (WWSCT)
Worksurface (WWWRW)
Bolt Kit (WWSBK)
C2
C1
A
Date:
Jun 2017
INT_007b

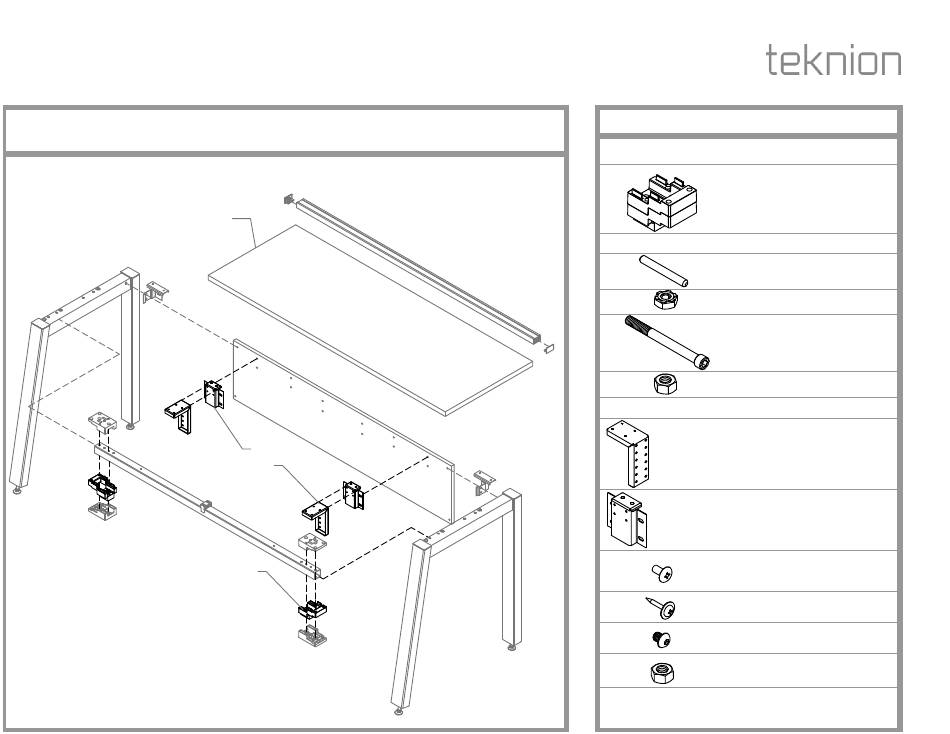

Part and Product Identification
WWSPK
A - Height Adjustable Stacker
Puck (WWSPK) x 2
WWSBK
B1 - Height Adj. Threaded Rod
(E01-0795) x 2
B2 - 1/4 - 20 UNC. Nut Hex Keps
Zinc (E03-0059) x 2
B3 - 516 -18 x 3.50 Socket Head
Cap Screw (E01-0781) x 8
B4 - 5/16 - 18 Hex Nut, 1/2 A/F
.265 Thk (E03-0755) x 8
WWSCT
C1 - Center Rail Height Adj.
Bracket (A15-9865) x 2 or 4
48" - 54" length = 2 Height Adjustable Cantilevers
60" - 96" length = 4 Height Adjustable Cantilevers
C2 - Height Adj. Clamp
(A16-1284) x 2 or 4
48" - 54" length = 2 Height Adjustable Cantilevers
60" - 96" length = 4 Height Adjustable Cantilevers
C3 - 1/4 - 20 UNC x .500 Mach. Scr,
Cross Truss (E01-0110) x 6
C4 - #10 x 0.875" LG. Screw Quad
Pan Washer (E07-0077) x 4
C5 - 5/16 - 18 x 3/8 Botton Head
Hex Socket Cap(E01-0798) x 2
C6 - 5/16 - 18 Hex Jam Nut, .190
Thk (E03-0551) x 2
For Customer Support please contact
product.support@teknion.com
Page No:
1 of 10
Rev. No: 4

Advertisement

loading
Need help?

Need help?

Do you have a question about the interpret WWSPK and is the answer not in the manual?

Questions and answers

Summary of Contents for Teknion interpret WWSPK

  • Page 1 C4 - #10 x 0.875" LG. Screw Quad Pan Washer (E07-0077) x 4 C5 - 5/16 - 18 x 3/8 Botton Head Hex Socket Cap(E01-0798) x 2 C6 - 5/16 - 18 Hex Jam Nut, .190 Thk (E03-0551) x 2 For Customer Support please contact product.support@teknion.com...
  • Page 2 interpret Installation Guides Section: FRAMES, SUPPORTS AND WORKSURFACES Date: Jun 2017 Page No: 2 of 10 Description: HEIGHT ADJUSTABLE CANTILEVER, PUCKS AND BOLT KIT - SINGLE SIDED FRAME INT_007b CLAMPS AND PUCKS INSTALLATION DETAIL Beams and Clamps are part of Single Sided Frame.
  • Page 3 interpret Installation Guides Section: FRAMES, SUPPORTS AND WORKSURFACES Date: Jun 2017 Page No: 3 of 10 Description: HEIGHT ADJUSTABLE CANTILEVER, PUCKS AND BOLT KIT - SINGLE SIDED FRAME INT_007b ATTACH BEAM TO GABLES FASTEN Legs and Cross Beans are part of Single Sided Frame.
  • Page 4 interpret Installation Guides Section: FRAMES, SUPPORTS AND WORKSURFACES Date: Jun 2017 Page No: 4 of 10 Description: HEIGHT ADJUSTABLE CANTILEVER, PUCKS AND BOLT KIT - SINGLE SIDED FRAME INT_007b ATTACH CORNER BRACKETS ASSEMBLE AND ATTACH ACCESSORY RAIL Middle Rail with Ends and nuts installed.
  • Page 5 interpret Installation Guides Section: FRAMES, SUPPORTS AND WORKSURFACES Date: Jun 2017 Page No: 5 of 10 Description: HEIGHT ADJUSTABLE CANTILEVER, PUCKS AND BOLT KIT - SINGLE SIDED FRAME INT_007b ATTACH HEIGHT ADJUSTABLE CLAMP ALIGNMENT Modesty Panel Modesty Panel pilot holes. Underside back view.
  • Page 6 interpret Installation Guides Section: FRAMES, SUPPORTS AND WORKSURFACES Date: Jun 2017 Page No: 6 of 10 Description: HEIGHT ADJUSTABLE CANTILEVER, PUCKS AND BOLT KIT - SINGLE SIDED FRAME INT_007b ATTACH MODESTY PANEL NOTE: Please refer to INT_005b for Modesty Installation 48"...
  • Page 7 interpret Installation Guides Section: FRAMES, SUPPORTS AND WORKSURFACES Date: Jun 2017 Page No: 7 of 10 Description: HEIGHT ADJUSTABLE CANTILEVER, PUCKS AND BOLT KIT - SINGLE SIDED FRAME INT_007b BRACKET TO CLAMP 3 Stacker Blocks Cantilever 2 Stacker Blocks Cantilever 1 Stacker Blocks Cantilever 0 Stacker Blocks...
  • Page 8 interpret Installation Guides Section: FRAMES, SUPPORTS AND WORKSURFACES Date: Jun 2017 Page No: 8 of 10 Description: HEIGHT ADJUSTABLE CANTILEVER, PUCKS AND BOLT KIT - SINGLE SIDED FRAME INT_007b INSERT THREADED ROD STEP 10: Align pilot holes from Worksurface and Insert threaded rod through clamp and fasten. Fasten Nut. Cut excess Threaded Rod at location indicated on illustration.
  • Page 9 interpret Installation Guides Section: FRAMES, SUPPORTS AND WORKSURFACES Date: Jun 2017 Page No: 9 of 10 Description: HEIGHT ADJUSTABLE CANTILEVER, PUCKS AND BOLT KIT - SINGLE SIDED FRAME INT_007b THREADED ROD NOTE: To prevent Threaded Rod penetrating top of Worksurface, follow dimensions given STEP 11: Cut excess Threaded Rod at location indicated on illustration.
  • Page 10 interpret Installation Guides Section: FRAMES, SUPPORTS AND WORKSURFACES Date: Jun 2017 Page No: 10 of 10 Description: HEIGHT ADJUSTABLE CANTILEVER, PUCKS AND BOLT KIT - SINGLE SIDED FRAME INT_007b FASTEN WORKSURFACE Worksurface STEP 12: Fasten brackets to other side of Clamp using screws provided.
