interpret
Installation Guides
Section: TABLES
Description: BEGINNING WORK TABLE AND FINISH WORK TABLE - CURVED LEG
Finish Work Table (WWTWF)
BD
BI1

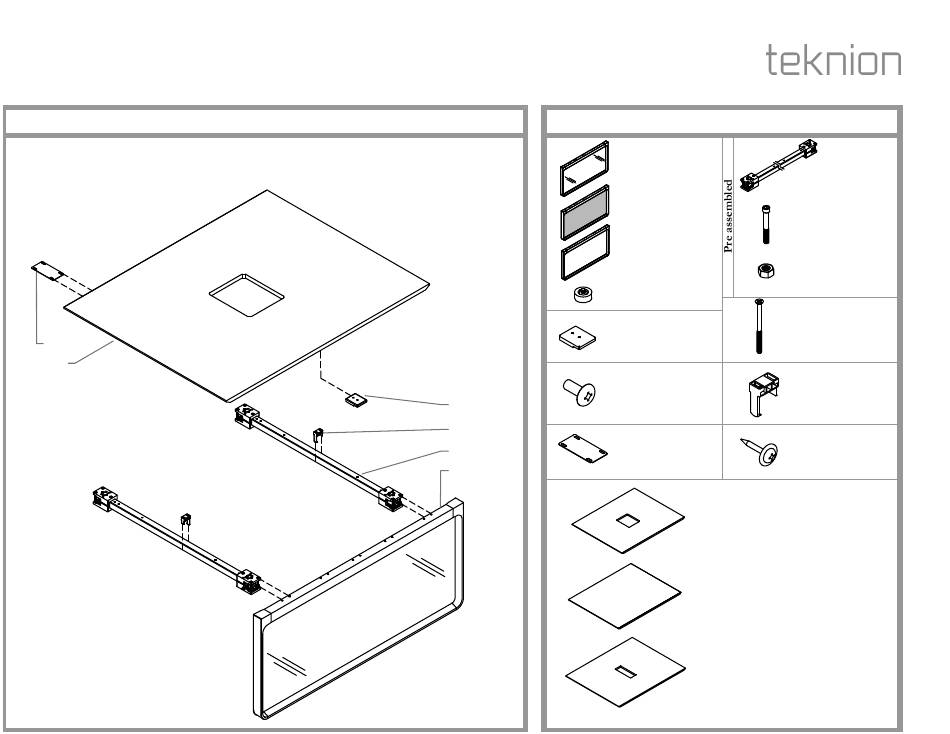

Part and Product Identification
BA1 -Curve Leg with
or Curve Leg with
or Curve Leg Open
BA2 -Curve Leg
BB -Center Spacer
BC -1/4-20x5/8
BB
BG
BD -Flush Plate
BE1
BA1
Date: Jan 2018
INT_504b
Glass Infill
BE1 -Transverse Beam
(N02-2349) x1
Sub-Assembly
(N02-1935) x2
Wood Infill
BE2 -5/16-18x2.5 Soc
(N02-2365) x1
Head Cap Screw
(E01-0756) x16
(N02-2363) x1
BE3 -5/16-18 Hex
Nut 1/2 A/F
.265 Thick
Add-on Puck
(E01-0755) x16
(A18-0242) x8
BF -1/4-20 x 3 -1/2
Flat Hd, Mach Sc.
(E01-0771) x4
(A16-1652) x1
BG -Front Standoff
(B02-0381)
Mach. Screw
widths 48"-72" x2
(E01-0098) x2
widths 48"-96" x4
BH- #10 x .875" LG.
(A15-6948) x 1
Quad Pan Screw
(E07-0077) x4
BI1 -Worksurface for Final
Table with Cut-out
(C05-7740) x 1
or
BI2 -Worksurface for Final
Table without Cut-out
(C05-7739) x 1
or
BI3 -Worksurface for Final
Table with CALA Cut-out
(C07-2513) x 1
Page No: 2 of 14
Rev. No: 1
