interpret
Section:
Description:

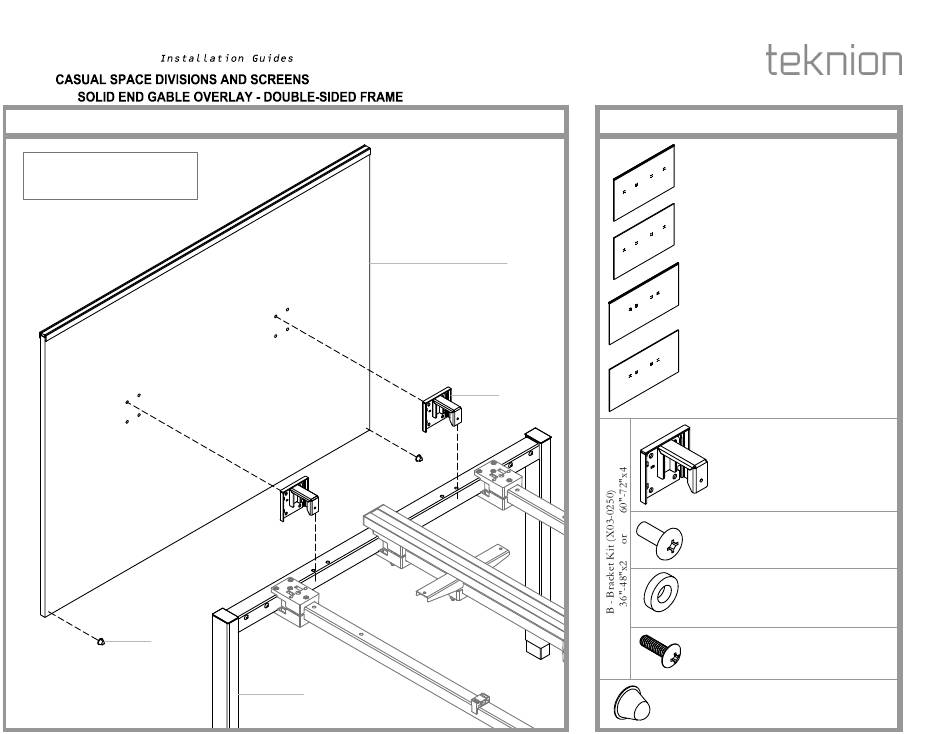

Solid End Gable Overlay - Double Sided (WWCBSD)
NOTE: Double Sided Frame and
Flush Solid End Gable with Top
Rail Shown as an example.
C
For Customer Support please contact
product.support@teknion.com
Double Sided End
Gable Frame
Part and Product Identification
A
B1
C - Clear Bumper, BS37, Self Adhesive, .560"H
Date:
Feb. 2017
Page No:
INT_210a
Rev. No: 0
A - End Gable Screen - Double Sided, Flush,
Top Rail
(N09-5973-X) x1
or
End Gable Screen - Double Sided, Flush,
No Rail
(C07-0530-X) x1
or
End Gable Screen - Double Sided,
Overhang, Top Rail
(N09-4494-X) x1
or
End Gable Screen - Double Sided,
Overhang, No Rail
(C05-8087-X) x1
B1 - Solid End Gable Screen Bracket Kit
(N09-4739) x1
B2 - 1/4-20x5/8" Machine Screw,
Quadrex Truss Head
(E01-0098) x4
B3 - 1/4ID X 1/2OD A 1/8THK SBR
FLAT WASHER BLK
(E03-0582) x4
B4 - 1/4 -20 x 7/8 Quadrex, Truss Head
Mach. Screw, Zinc
(E01-0872) x1
(E03-0574) x2
1 of 4
Advertisement
Table of Contents
Related Manuals for Teknion interpret WWCBSD
Summary of Contents for Teknion interpret WWCBSD
- Page 1 FLAT WASHER BLK (E03-0582) x4 B4 - 1/4 -20 x 7/8 Quadrex, Truss Head Mach. Screw, Zinc (E01-0872) x1 C - Clear Bumper, BS37, Self Adhesive, .560"H Double Sided End For Customer Support please contact (E03-0574) x2 Gable Frame product.support@teknion.com...
- Page 2 interpret Section: Date: Feb. 2017 Page No: 2 of 4 Description: INT_210a ATTACH BRACKET MOUNT SCREEN NOTE: Make sure to attach NOTE: Make sure to mount the Screen Brackets as shown. End Gable Screen to the center of the Frame as shown. Top View View Brackets...
- Page 3 interpret Section: Date: Feb. 2017 Page No: 3 of 4 Description: INT_210a NOTE: CLEAR BUMPER LOCATION ATTACH CLEAR BUMPER Side View Straight Leg Side View Front View Angled Leg NOTE: Clear bumper location illustration. STEP 3: Pull Screen outward and attach Clear Bumpers to the inside of the Screen as shown in the illustration.
- Page 4 interpret Section: Date: Feb. 2017 Page No: 4 of 4 Description: INT_210a SECURE SCREEN LEVEL SCREEN STEP 4: Secure Brackets to the Frame with Screws provided.
