interpret
Installation Guides
Section:
FRAMES, SUPPORTS AND WORKSURFACES
Description:
LEG ACCOMODATION KIT

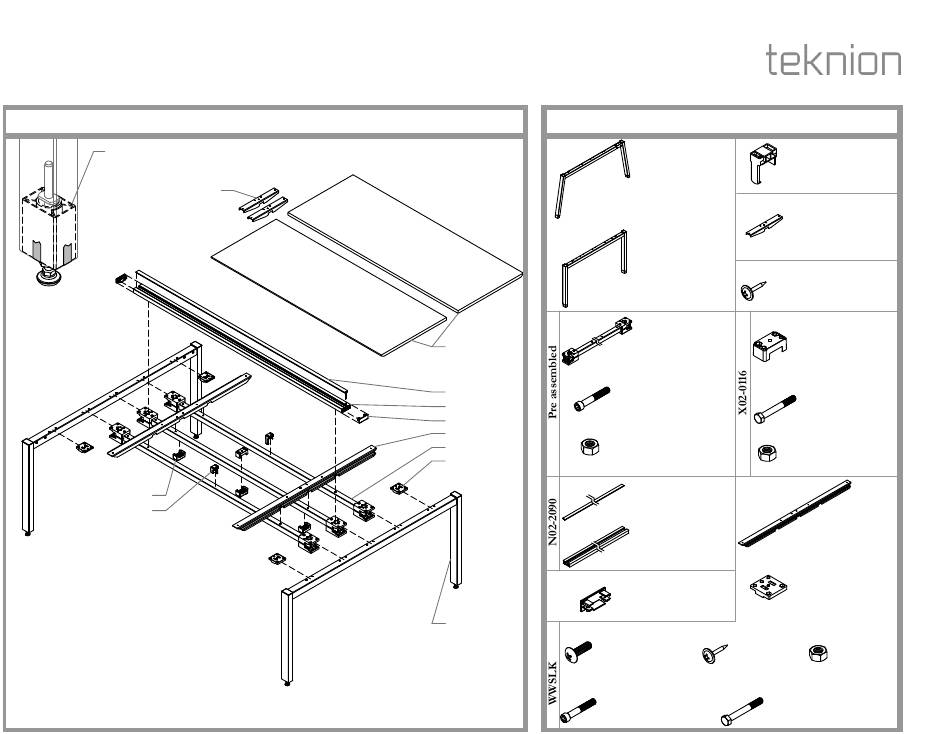

Leg Accommodation Kit (WWSLK), Wire Gap Worksurface (WWWRW)
Leveler Cover is located inside Leg,
assembled and secured in place with tape.
Cantilevers (shown) are
delivered with Frame. These
will NOT be used. KEEP
ON SITE FOR FUTURE
RETROFIT.
I1
F
Straight Leg Frame 72" Frame shown
Note: Leg Accommodation Kit to be used
for 72" Wide Max, 60" Deep Max Double
Sided Bench for Users with Knee Clearance
Issues.
Wire Gap
Worksurface
(WWWRW) x2
D1
D2
E
J1
C1
J2
B
For Customer Support please contact
product.support@teknion.com
Part and Product Identification
A - End Leg Assy
Angled
(N02-3687) x2
or
B - End Leg Assy
Straight
(N02-3686) x2
C1 - Transverse
Beam Sub-
Assembly
(N02-3688) x3
C2 - 5/16-18x2.5 Soc.
Head Cap Screw
(E01-0756) x24
C3 - 5/16-18 Hex
Nut 1/2 A/F
.265 Thick
(E01-0755) x24
D1 - Center Rail Ext.
Cap Cut Lenght
(A23-4058) x1
D2 - Center Rail Ext.
Cut Lenght
(A23-3734) x1
E - Center Rail End
Cap
(N02-2149) x2
J4 - #10x0.875 Pan
J3 - 1/4-20 x 7/8 Quadrex,
Wash Screw
Truss Head Mach.
(E07-0077) x8
Screw (E01-0872) x4
J6 - 5/16-18 x 2 Long, Socket
J7 - Screw 5/16-18 x 2 1/2 LG
Head Cap Screw
(E01-0764) x4
Date:
Jun. 2017
Page No:
1 of 9
INT_013
Rev. No: 1
F - Front Standoff
(B02-0658)
48"-66" x1
72"-96" x2
G - Cantilever Bracket
(A16-4882)
48"-60" x2
66"-96" x4
H - #10x0.875 Pan Wash
Screw (E07-0077) x4
48"-60" x4
66"-96" x8
I1 - Worksurface Spacer
Block
(A25-0547) x4
I2 - 5/16-18x3.75 Hex
Head Grade 2 Screw
(E01-0799) x10
I3 - 5/16-18Hex Nut
1/2 A/F.265 Th.
(E01-0755) x10
J1 - Cross Bar for
Knee Clearance
(A16-4872) x2
J2 - Spacer Bracket
(A25-0548) x4
J5 - 5/16-18 Hex
Nut 1/2 A/F
.265 Thk
(E01-0755) x8
Hex Head (E01-1136) x4

Advertisement

loading
Need help?

Need help?

Do you have a question about the interpret Leg Accommodation Kit WWSLK and is the answer not in the manual?

Questions and answers

Summary of Contents for Teknion interpret Leg Accommodation Kit WWSLK

  • Page 1 (E01-0755) x8 Sided Bench for Users with Knee Clearance Issues. J6 - 5/16-18 x 2 Long, Socket J7 - Screw 5/16-18 x 2 1/2 LG For Customer Support please contact Head Cap Screw Hex Head (E01-1136) x4 product.support@teknion.com (E01-0764) x4...
  • Page 2: Remove Mounting Screws

    interpret Installation Guides Section: FRAMES, SUPPORTS AND WORKSURFACES Date: Jun. 2017 Page No: 2 of 9 Description: LEG ACCOMODATION KIT INT_013 REMOVE MOUNTING SCREWS REMOVE MOUNTING SCREWS AND NUTS Mid Gable Connection End Gable Mid Gable Connection Connection STEP 1: Remove two mounting Screws and Nuts from each Transverse Beam Assembly Clamp STEP 2: Remove Clamp Brackets from Mid Gable Connection position and move them one as shown.
  • Page 3 interpret Installation Guides Section: FRAMES, SUPPORTS AND WORKSURFACES Date: Jun. 2017 Page No: 3 of 9 Description: LEG ACCOMODATION KIT INT_013 REINSTALL CLAMPS DETAIL Clamp Bracket and Transverse Tube alignment. Mid Gable Connection End Gable Connection Clamp Bracket and Transverse Tube alignment.
  • Page 4 interpret Installation Guides Section: FRAMES, SUPPORTS AND WORKSURFACES Date: Jun. 2017 Page No: 4 of 9 Description: LEG ACCOMODATION KIT INT_013 BEAM AND GABLE ASSEMBLY FASTEN WITH SCREWS AND NUTS Position End Gables with holes facing inward. Middle pair of holes. Leave connection loose to allow future adjustment.
  • Page 5 interpret Installation Guides Section: FRAMES, SUPPORTS AND WORKSURFACES Date: Jun. 2017 Page No: 5 of 9 Description: LEG ACCOMODATION KIT INT_013 INSTALL SIDE TRANSVERS BEAMS ASSEMBLIES SECURE WITH FASTENERS AND LEVEL STEP 6: Angle remaining Transverse Beam assemblies and engage them into End Gable Cross STEP 7: Fasten Clamp Brackets to the Beam using mounting Screws and Nuts previously Beams at holes shown on illustration above.
  • Page 6 interpret Installation Guides Section: FRAMES, SUPPORTS AND WORKSURFACES Date: Jun. 2017 Page No: 6 of 9 Description: LEG ACCOMODATION KIT INT_013 INSTALL CROSS BAR AND SPACERS CENTRE RAIL ASSEMBLY SIDE VIEW Set Screws STEP 8: Place Cross Bar on the top of the middle Tube. Insert top part of Spacer Block and STEP 9: Prepare Center Rail for installation by sliding mounting Bolts into the channels Install Spacer Bracket.
  • Page 7 interpret Installation Guides Section: FRAMES, SUPPORTS AND WORKSURFACES Date: Jun. 2017 Page No: 7 of 9 Description: LEG ACCOMODATION KIT INT_013 INSTALL CENTRE RAIL SECURE IN PLACE Underside view STEP 10: Turn Center Rail so the Hex Cap Screws are facing down. Slide Screws inside the Rail STEP 11: Use Spacer Blocks and Nuts to fasten the Rail to the frame.
  • Page 8 interpret Installation Guides Section: FRAMES, SUPPORTS AND WORKSURFACES Date: Jun. 2017 Page No: 8 of 9 Description: LEG ACCOMODATION KIT INT_013 SQUARE AND LEVEL WHOLE ASSEMBLY LOCK LEVELERS 90° Remove tape so Leveler Cover can slide down. STEP 12: Square and level whole assembly. STEP 13: Lock each leveler and remove tape so Leveler Cover can slide down.
  • Page 9: Install Worksurface

    interpret Installation Guides Section: FRAMES, SUPPORTS AND WORKSURFACES Date: Jun. 2017 Page No: 9 of 9 Description: LEG ACCOMODATION KIT INT_013 INSTALL WORKSURFACE SECOND WORKSURFACE NOTE: Install Peninsula Support Kit and Peninsula Worksurface first if specified. Refer to Installation Guide No. INT_006a and INT_006b for Information.
