MultiFRAD User Guide

DLCI Setup

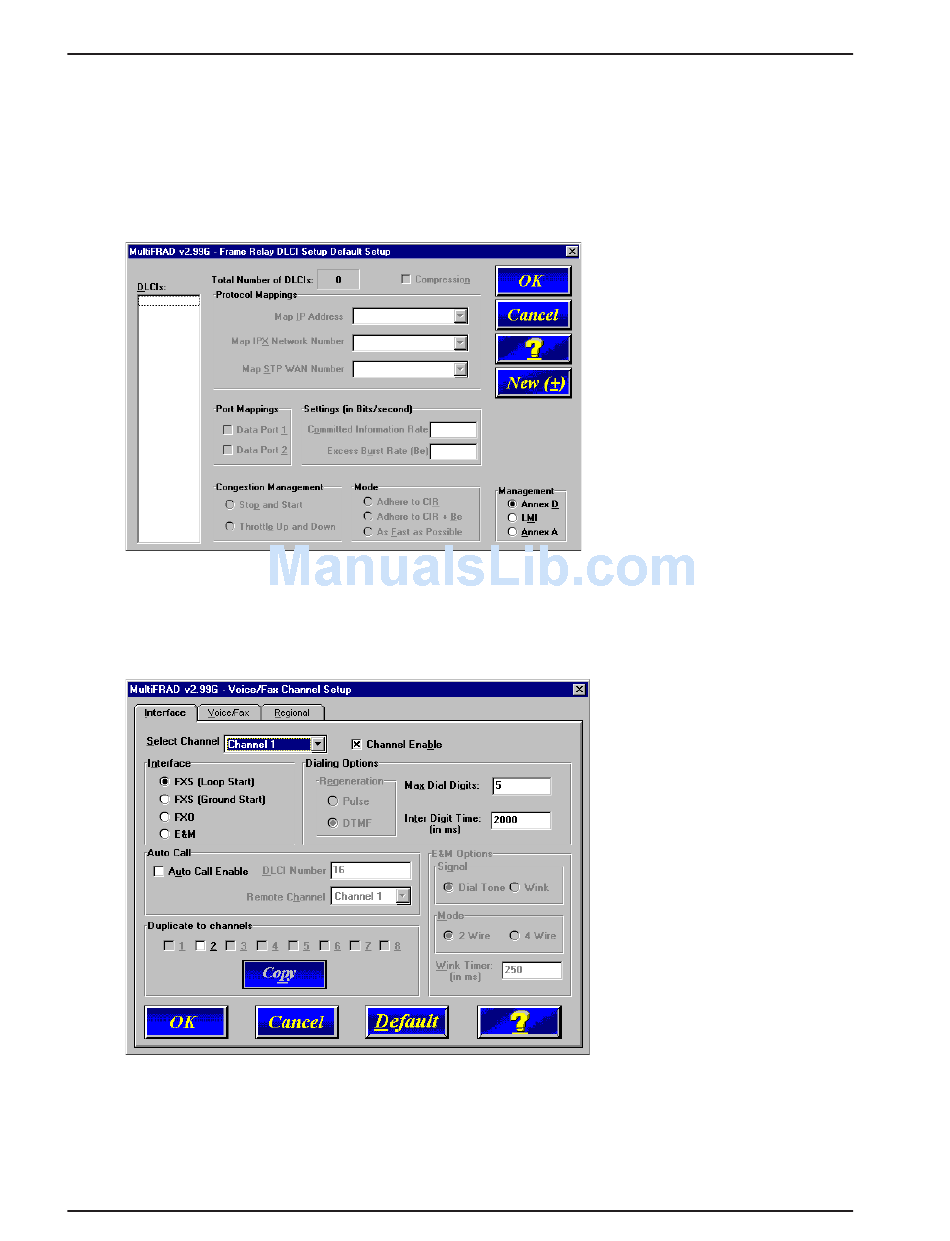

28 If you enabled Frame Relay in the WAN Ports Default Setup dialog box, the Frame Relay DLCI
Default Setup dialog box is displayed with all the groups inactive. Click OK to continue.
Note: When your MultiFRAD is connected to an active frame relay network service, it can detect
DLCIs and the frame relay management type. However, at this point your MultiFRAD is not yet
communicating with the frame relay network. We recommend that you finish loading the software and
then access the frame relay dialog box from the main menu.

Voice/Fax Channel Setup

29 The Voice/Fax Channel setup dialog box is displayed. Its three tabs are used to define the voice/fax
channel interface, voice coder, fax parameters, and regional phone parameters (tone pairs) for each
channel.
Configure each channel for the type of interface you are connecting to. The Interface tab defaults to
Channel 1 in the Select Channel field.
30 The Interface group defaults to FXS (Loop Start). Select the interface option that corresponds to
the interface type being connected to the Voice/Fax connector on the back panel of the MultiFRAD.
If you are connecting a station device; e.g., an analog telephone, fax machine, or KTS telephone
system to the Voice/Fax connector on the back of the unit, FXS (Loop Start) will likely be the correct
Interface option.
26
