Shunts

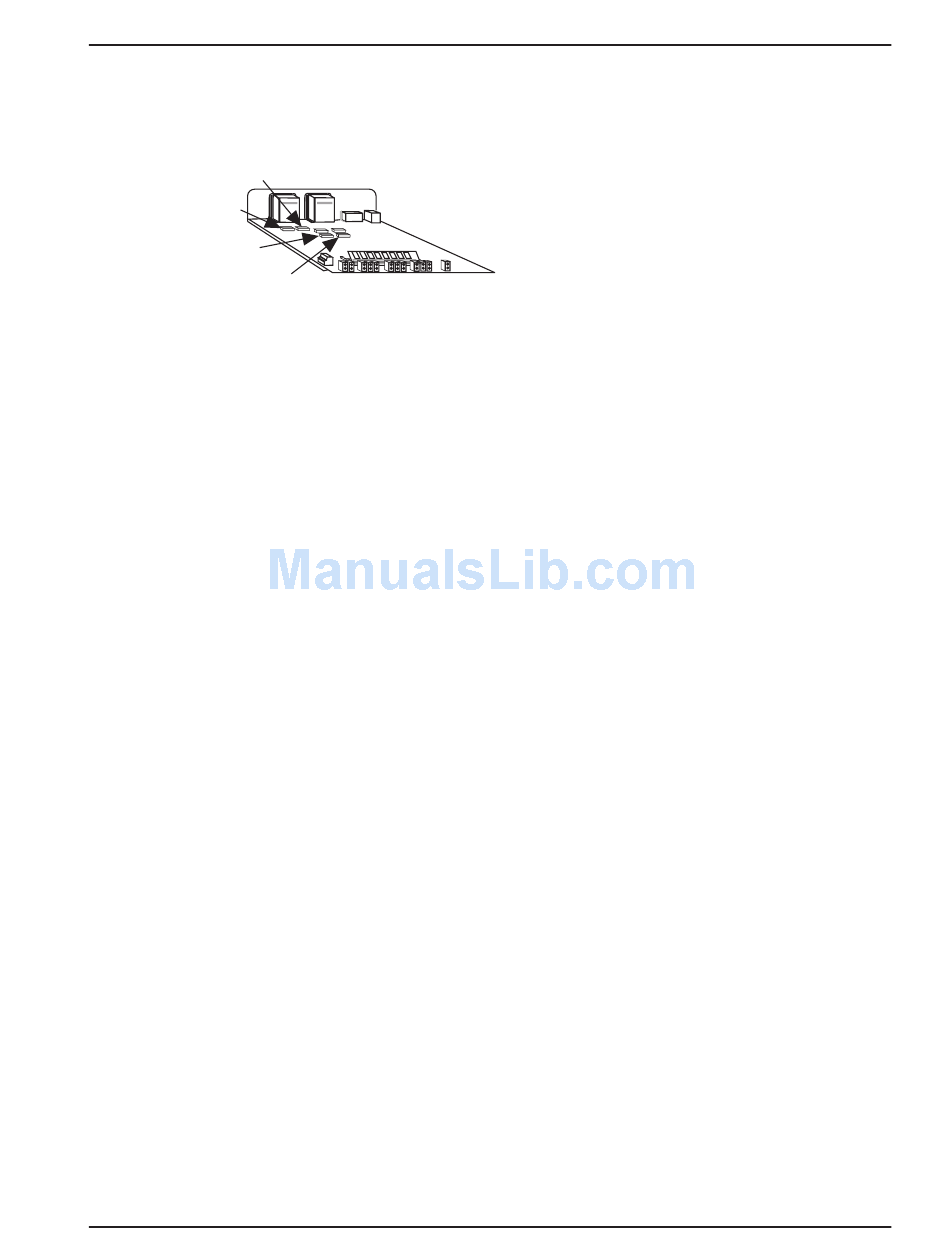

There are three shunts (Figure 1-4) on the printed circuit board for the trunk and the data Channels.
Trunk RS232
Shunt Position
Trunk V.35
Shunt Position
Channel 1 V.35
Shunt Position
Channel 2 V.35
Shunt Position
Figure 1-4. Shunts
The MultiFRAD has separate shunts for the composite link (or trunk) and both data Channels. Both
the default RS232 Shunt Position and the V.35 position for the Trunk are identified. The V.35
positions for the Channel shunts are also shown. To change the position of a shunt, refer to the V.35
Shunt procedure in Chapter 2.
