Multitech MultiFRAD FR220 User Manual page 23

15 Click OK when you are satisfied with your selections.
16 If your MultiFRAD is connected to an IP network, continue with the following steps (17 thru 22).
If your MultiFRAD is NOT connected to a LAN or the network does not use IP, click the IP Routing
Enable check box to disable the IP protocol, then click OK and proceed to step 23.
17 Record the IP address protocol information for your specific network in the space provided below:
IP Address
___.___.___.___
IP Address
___.___.___.___

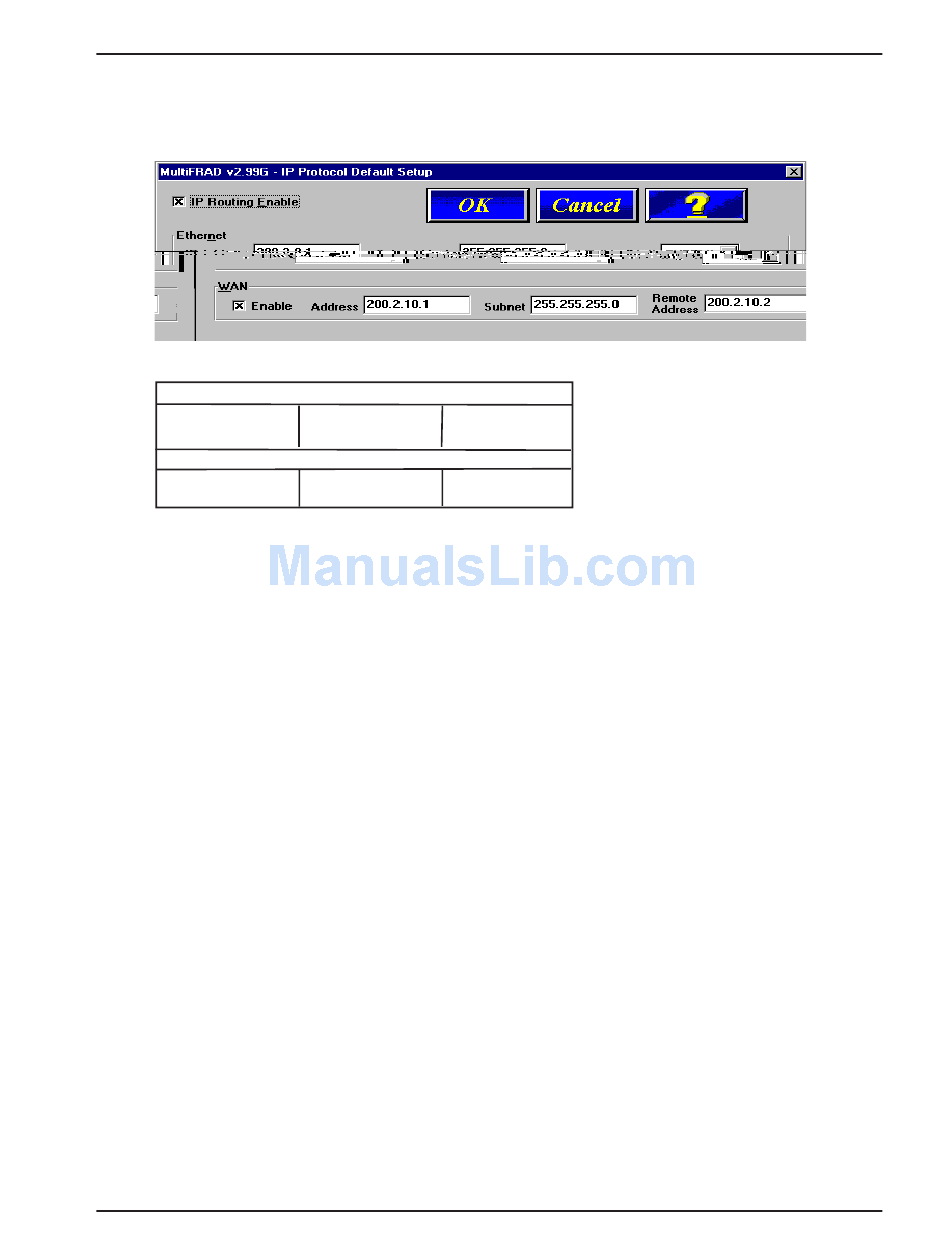

18 The default Ethernet IP Address has to be changed to your unique LAN address. Enter an
acceptable, unique IP address for the Ethernet port.
19 Change the default Subnet Mask and Frame Type to the values you have assigned to your LAN
port.
20 The default WAN Address has to be changed to your unique WAN address. Assign an acceptable
unique WAN Address to the WAN port.
21 Change the default Subnet Mask and Remote Address for WAN to the values you have assigned to
your WAN.
22 Click OK when you are satisfied with your selections.
Ethernet
Frame Type
Mask
___.___.___.___
TYPE II/SNAP
WAN Port
Mask Remote Address
___.___.___.___
___.___.___.___
Chapter 3 - Software Loading and Configuration
23
