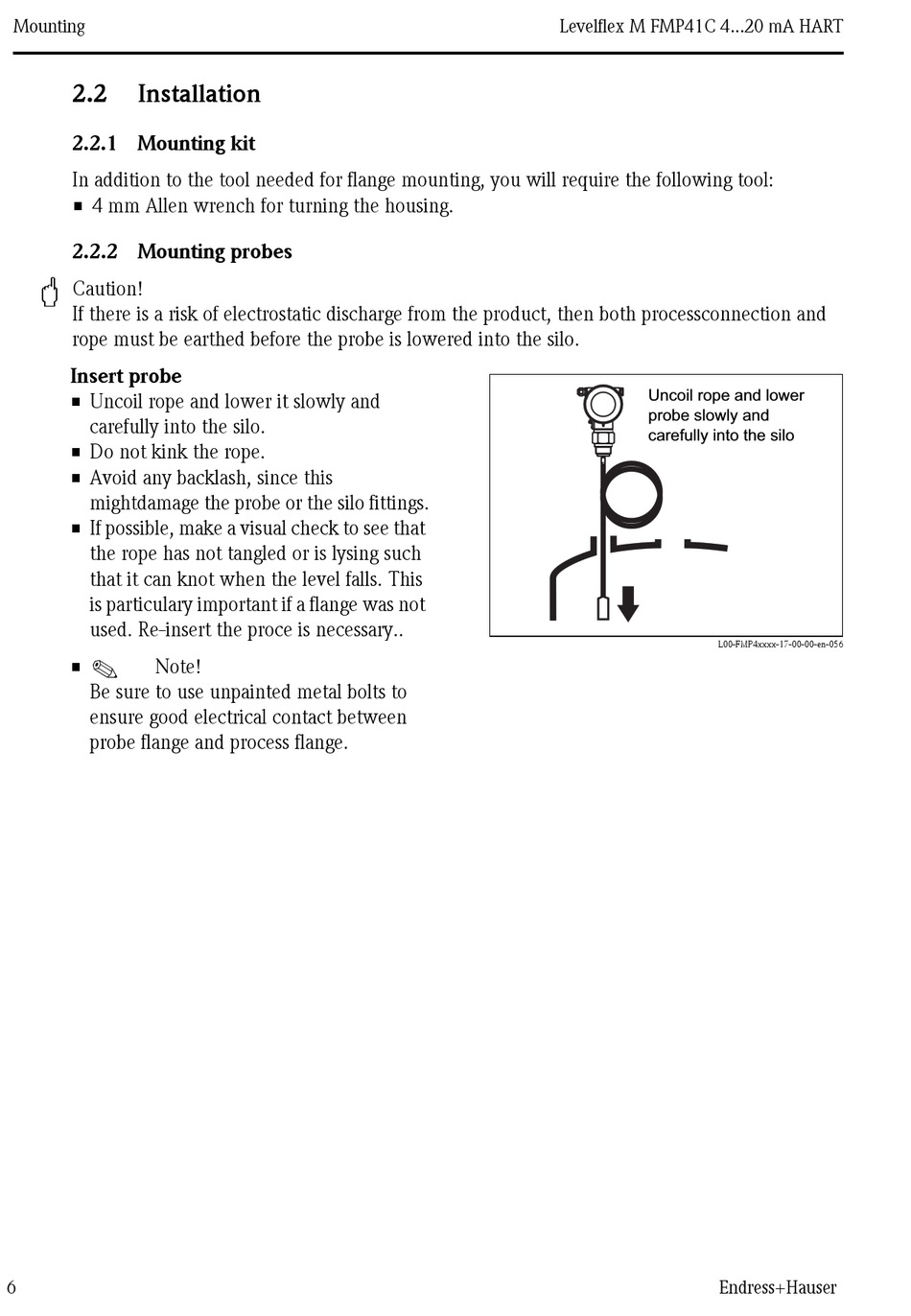

Mounting
2.2

Installation

2.2.1 Mounting kit
In addition to the tool needed for flange mounting, you will require the following tool:
• 4 mm Allen wrench for turning the housing.
2.2.2 Mounting probes
"
Caution!
If there is a risk of electrostatic discharge from the product, then both processconnection and
rope must be earthed before the probe is lowered into the silo.
Insert probe
• Uncoil rope and lower it slowly and
carefully into the silo.
• Do not kink the rope.
• Avoid any backlash, since this
mightdamage the probe or the silo fittings.
• If possible, make a visual check to see that
the rope has not tangled or is lysing such
that it can knot when the level falls. This
is particulary important if a flange was not
used. Re-insert the proce is necessary..
!
• Note!
Be sure to use unpainted metal bolts to
ensure good electrical contact between
probe flange and process flange.
6
Levelflex M FMP41C 4...20 mA HART
Uncoil rope and lower
probe slowly and
carefully into the silo
L00-FMP4xxxx-17-00-00-en-056
