Operation
The third digit numbers the individual functions within the function group:
• basic setup
Here after the position is always given in brackets (e.g. "tank properties" (002)) after the
described function.
4.2

Display and operating elements

Four lines with 20 characters each. Display contrast adjustable through key combination.
EN EN
MI MI DR DR
Ord Ord CR CR ES ES S+ S+
Ser Ser er er Co Co OP OP HA HA
.-N .-N o.: o.: de: de: ILO ILO US US
T II T II ER ER
Me Me
Me Me ssb ssb ere ere
asu asu ring ring ich ich
ran ran
U 16. U 16. ge ge ma ma
4... 4... ..36 ..36 x. 20 x. 20
20 20 mA mA V DC V DC m m
IP IP
65 65
T T
>70 >70 A A
°C °C : :
t >85 t >85 °C °C

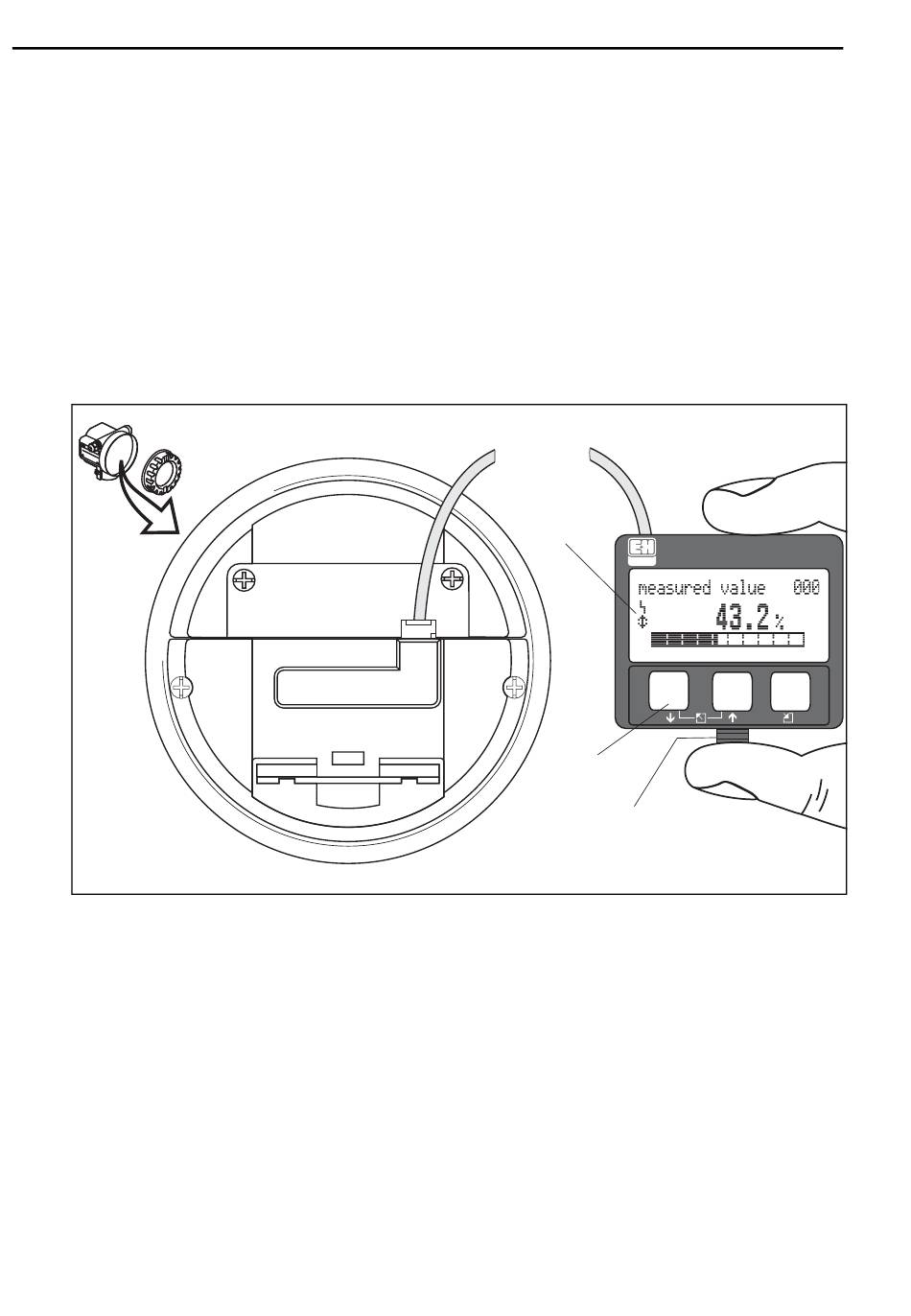

The VU331 LCD display can be removed to ease operation by simply pressing the snap-fit (see
graphic above). It is connected to the device by means of a 500mm cable.
20
→
00 • tank properties
• medium properties
• process cond.
...
Levelflex M FMP41C 4...20 mA HART
(liquid crystal display)
Symbols
ENDRESS + HAUSER
–
3 keys
snap-fit
002
003
004
LCD
+
E
L00-FMxxxxxx-07-00-00-en-001
Endress+Hauser
