BA 276F/00/en/11.03
No. 52021033
Valid as of software version
V 01.02.00 (amplifier)
V 01.02.00 (communication)
levelflex M
FMP 41 C
HART/4...20 mA
Guided Level-Radar
Operating Instructions
HART
R
FIELD COMMUNICATION PROTOCOL

Advertisement

loading
Need help?

Need help?

Do you have a question about the levelflex M FMP 41 C and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Endress+Hauser levelflex M FMP 41 C

Summary of Contents for Endress+Hauser levelflex M FMP 41 C

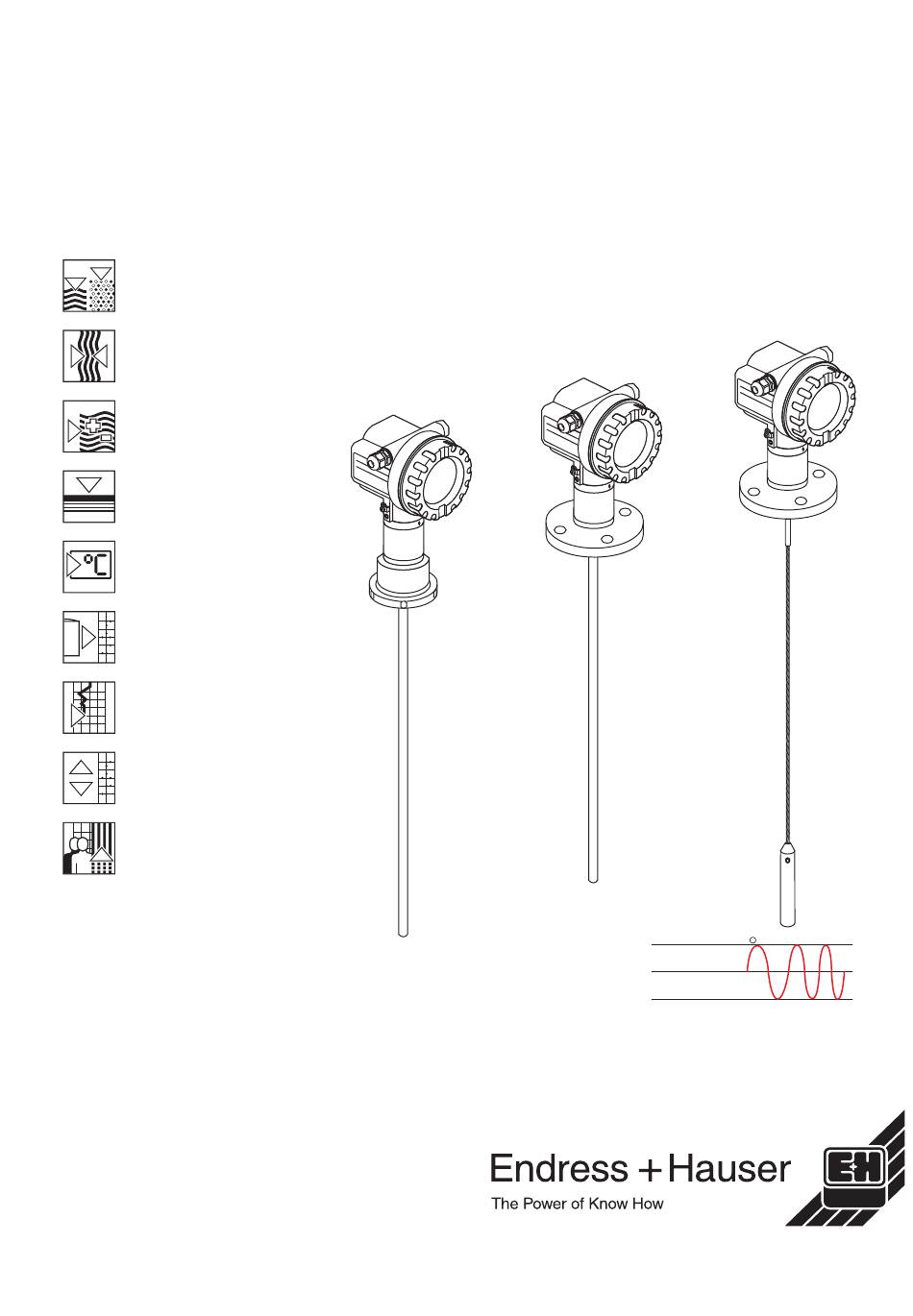

  • Page 1 levelflex M BA 276F/00/en/11.03 No. 52021033 Valid as of software version FMP 41 C V 01.02.00 (amplifier) V 01.02.00 (communication) HART/4...20 mA Guided Level-Radar Operating Instructions HART FIELD COMMUNICATION PROTOCOL...
  • Page 2 Levelflex M FMP 41 C with HART/4...20 mA Brief operating instructions KA 189F/00/a2/03.02 Levelflex M - Brief operating instructions 52012501 Contrast: measured value dist./ meas value Group selection process empty check start basic setup tank medium full dist./ range of...
  • Page 3 Operational safety ..... . 4 Contact addresses of Endress+Hauser ..73 Notes on safety conventions and icons ..5 Technical data .
  • Page 4 Levelflex M FMP 41 C with HART/4...20 mA Safety instructions Designated use The Levelflex M FMP 41 C is a compact level transmitter for the continuous measurement of solids and liquids, measuring prinziple: Guided Level Radar / TDR: Time Domain Reflectometry.
  • Page 5 Levelflex M FMP 41 C with HART/4...20 mA Safety instructions Notes on safety conventions and icons In order to highlight safety-relevant or alternative operating procedures in the manual, the following conventions have been used, each indicated by a corresponding symbol in the margin.
  • Page 6 Dat./Insp.: D01301-A Reference to additional safety-relevant documentation L00-FMP4xxxx-18-00-00-en-001 Fig. 1: Information on the nameplate of the Levelflex M FMP 41 C (example) 2.1.2 Ordering structure Ordering structure Levelflex M FMP 41 C Certificates A For non-hazardous areas For non-hazardous areas + WHG...
  • Page 7 Levelflex M FMP 41 C with HART/4...20 mA Identification Ordering structure Levelflex M FMP 41 C (continued) Probe version and length rope probes: 1000 mm...30000 mm / 40 in...1181 in Material max. nozzle height A mm LN, 5 mm-rope, incl. 150 mm centering rod PFA >316...
  • Page 8 Identification Levelflex M FMP 41 C with HART/4...20 mA Ordering structure Levelflex M FMP 41 C (continued) Display without display with display VU 331 incl. on-side operation Prepared for FHX 40 mounting of remote display (Accessory) Special version Remote electronic...
  • Page 9 "Protection Measures for Electrical Equipment for Measurement, Control, Regulation and Laboratory Procedures". The instrument described in this manual thus complies with the statutory requirements of the EG directives. Endress+Hauser confirms the successful testing of the instrument by affixing to it the CE mark.
  • Page 10 Installation Levelflex M FMP 41 C with HART/4...20 mA Installation Incoming acceptance, transport, storage 3.1.1 Incoming acceptance Check the packing and contents for any signs of damage. Check the shipment, make sure nothing is missing and that the scope of supply matches your order.
  • Page 11 Levelflex M FMP 41 C with HART/4...20 mA Installation Installation conditions 3.2.1 Dimensions Housing dimensions Dimensions for the process connection and the probe type see Page 12. max. 110 ENDRESS+HAUSER F12 housing (Aluminium) L00-F12xxxx-06-00-00-en-001 max. 100 ENDRESS+HAUSER T12 housing (Aluminium) L00-T12xxxx-06-00-00-en-001 max.
  • Page 12 Installation Levelflex M FMP 41 C with HART/4...20 mA Levelflex M FMP 41 C - process connection, probe type Housing dimensions see Page 11 F12 / T12 / F23 housing option: remote electronic 4 x Ø 8,5 Ø 76 1 ½"/2"/3"...
  • Page 13 Levelflex M FMP 41 C with HART/4...20 mA Installation Installation 3.3.1 Mounting kit In addition to the tool required for mounting on the process connection, you will also need the following tool: • 4 mm Allen wrench for turning the housing.
  • Page 14 Installation Levelflex M FMP 41 C with HART/4...20 mA Other installations • Select the mounting location such that the distance to internals (5) (e.g. limit switch, struts) > is 300 mm over the entire length of the probe, also during operation.
  • Page 15 Levelflex M FMP 41 C with HART/4...20 mA Installation Type of probe installation • The probes are mounted with flanges as of DN40 or a hygienic process connection. • When installing in plastic tanks, the nozzle must have at least DN50/2". The appropriate flange must be used as the process connection.
  • Page 16 Installation Levelflex M FMP 41 C with HART/4...20 mA 3.3.3 Special instructions When installing in stirring tanks, observe lateral load of probes. Possibly check whether a non-contact process, ultrasound or radar would not be better suited, above all if the stirrer generates large mechanical loads on the probe.
  • Page 17 Levelflex M FMP 41 C with HART/4...20 mA Installation 3.3.4 Information on special installation situations Installation from the side Installation from the side is permitted subject to the lateral load (max. 30 Nm). L00-FMP4xxxx-17-00-00-de-048 Endress + Hauser...
  • Page 18 Installation Levelflex M FMP 41 C with HART/4...20 mA 3.3.5 Installation for difficult to access process connections Installation with remote electronic • Follow installation instructions on Page 13 ff. • Mount housing on a wall or pipe as shown in the diagram.
  • Page 19 Levelflex M FMP 41 C with HART/4...20 mA Installation Turn housing After mounting, the housing can be turned 350° in order to simplify access to the display and the terminal compartment. Proceed as follows to turn the housing to the required position: •...
  • Page 20 Wiring Levelflex M FMP 41 C with HART/4...20 mA Wiring Quick wiring guide Wiring in F12/F23 housing " Before connection please note the following: The power supply must be identical to the data on the Caution! nameplate (1). ENDRESS+HAUSER Made in Germany...
  • Page 21 Levelflex M FMP 41 C with HART/4...20 mA Wiring Wiring in T12 housing " Before connection please note the following: The power supply must be identical to the data on the nameplate (1). Caution! ENDRESS+HAUSER Made in Germany LEVELFLEX-M D-79689 Maulburg Switch off power supply before connecting up the device.
  • Page 22 Wiring Levelflex M FMP 41 C with HART/4...20 mA Connecting the measuring unit Terminal compartment Three housings are available: • Aluminium housing F12 with additionally sealed terminal compartment for: – standard, – EEx ia. • Aluminium housing T12 with separate terminal compartment for: –...
  • Page 23 Levelflex M FMP 41 C with HART/4...20 mA Wiring Terminal voltage Current Communication consumption minimal maximal HART 4 mA 16 V 36 V standard 20 mA 7.5 V 36 V 4 mA 16 V 30 V EEx ia 20 mA 7.5 V...
  • Page 24 Wiring Levelflex M FMP 41 C with HART/4...20 mA 4.2.1 HART connection with E+H RMA 422 / RN 221 N - ToF Tool FXA 193 4...20 mA RMA 422 ENDRESS + HAUSER RMA 422 RN 221 N 1 2 3 4 dsdmdm df das.
  • Page 25 Levelflex M FMP 41 C with HART/4...20 mA Wiring Recommended connection 4.3.1 Equipotential bonding Connect the Equipotential bonding to the external ground terminal (1) of the transmitter. F12/F23 housing T12 housing L00-FMP41Cxx-17-00-00-en-003 4.3.2 Wiring screened cable " Caution! In Ex applications, the instrument must only be grounded on the sensor side. Further safety instructions are given in the separate documentation for applications in explosion hazardous areas.
  • Page 26 Operation Levelflex M FMP 41 C with HART/4...20 mA Operation Quick operation guide ENDRESS + HAUSER – >3 s Selection and configuration in Operation menu: 1.) Change from Measured Value Display to Group Selection by pressing 2.) Press to select the required Function Group (e.g..
  • Page 27 Levelflex M FMP 41 C with HART/4...20 mA Operation 5.1.1 General structure of the operating menu The operating menu is made up of two levels: • Function groups (00, 01, 03, …, 0C, 0D): The individual operating options of the instrument are split up roughly into different function groups.
  • Page 28 Operation Levelflex M FMP 41 C with HART/4...20 mA Display and operating elements Orde Orde Ser.- Ser.- r Cod r Cod No.: No.: sber surin sber surin eich eich g rang g rang U 16... U 16..20 . 20 4...2...
  • Page 29 Levelflex M FMP 41 C with HART/4...20 mA Operation 5.2.2 Display symbols The following table describes the symbols that appear on the liquid crystal display: Sybmols Meaning ALARM_SYMBOL This alarm symbol appears when the instrument is in an alarm state. If the symbol flashes, this indicates a warning.
  • Page 30 Operation Levelflex M FMP 41 C with HART/4...20 mA Local operation 5.3.1 Locking of the configuration mode The Levelflex can be protected in two ways against unauthorised changing of instrument data, numerical values or factory settings: "unlock parameter" (0A4): A value <> 100 (e.g. 99) must be entered in "unlock parameter" (0A4) in the "diagnostics"...
  • Page 31 Levelflex M FMP 41 C with HART/4...20 mA Operation 5.3.2 Unlocking of configuration mode If an attempt is made to change parameters when the instrument is locked, the user is automatically requested to unlock the instrument: "unlock parameter" (0A4): By entering the unlock parameter (on the display or via communication) 100 = for HART devices the Levelflex is released for operation.
  • Page 32 Operation Levelflex M FMP 41 C with HART/4...20 mA 5.3.3 Factory settings (Reset) " Caution! A reset sets the instrument back to the factory settings. This can lead to an impairment of the measurement. Generally, you should perform a basic setup again following a reset.
  • Page 33 Levelflex M FMP 41 C with HART/4...20 mA Operation Display and acknowledging error messages Type of error Errors that occur during commissioning or measuring are displayed immediately on the local display. If two or more system or process errors occur, the error with the highest priority is the one shown on the display.
  • Page 34 5.5.2 ToF Tool operating program The ToF Tool is a graphical operating software for instruments from Endress+Hauser that operate based on the time-of-flight principle. It is used to support commissioning, securing of data, signal analysis and documentation of the instruments. It is compatible with the following operating systems: Win95, Win98, WinNT4.0, Win2000 and...
  • Page 35 Levelflex M FMP 41 C with HART/4...20 mA Operation Menu-guided commissioning L00-FMP4xxxx-20-00-00-de-002 Signal analysis via envelope curve: L00-FMP4xxxx-20-00-00-de-007 Connection options • Service-interface with adapter FXA 193 (see Page 24 ff.) • HART with Commubox FXA 191 (see Page 24 ff.)
  • Page 36 Operation Levelflex M FMP 41 C with HART/4...20 mA 5.5.3 Commuwin II-Operating Programm Commuwin II is an operating software with graphical support for intelligent transmitters with the communication protocols Rackbus, Rackbus RS 485, INTENSOR, HART or PROFIBUS-PA. It is compatible with the operating systems Win 3.1/3.11, Win95, Win98 and WinNT4.0.
  • Page 37 Levelflex M FMP 41 C with HART/4...20 mA Commissioning Commissioning Function check Make sure that all final checks have been completed before you start up your measuring point: • Checklist “Post-installation check” (see Page 19 ff.). • Checklist “Post-connection check” (see Page 19 ff.).
  • Page 38 Commissioning Levelflex M FMP 41 C with HART/4...20 mA Basic Setup flange: reference point of measurement E = empty calibr. (= zero) LN = probe length setting in 005 setting in 033 F = full calibr. (= span) UB = upper blocking distance...
  • Page 39 Levelflex M FMP 41 C with HART/4...20 mA Commissioning The basic setup is sufficient for successful commissioning in most applications. The Levelflex is initially adjusted at the factory to the probe length ordered, so that in most cases only the application parameters, that automatically adapt the device to the measuring conditions, need to be entered.
  • Page 40 Commissioning Levelflex M FMP 41 C with HART/4...20 mA Basic Setup with the VU 331 Function "measured value" (000) ⇒ This function displays the current measured value in the selected unit (see "customer unit" (042)) function). The number of digits after decimal point can be selected in the "no.of decimals"...
  • Page 41 Levelflex M FMP 41 C with HART/4...20 mA Commissioning Note! In principle the employment of a metallic surface area should be preferred at the process connection! bypass / pipe The "bypass / pipe" option is designed especially for the installation of probes in a bypass or a stilling well.
  • Page 42 Commissioning Levelflex M FMP 41 C with HART/4...20 mA The lower group applies to very loose or loosened bulk solids. Reduction of the max. possible measuring range by means of: • extremely loose surfaces of bulk solids, e.g. bulk solids with low piled density when filled pneumatically.
  • Page 43 Levelflex M FMP 41 C with HART/4...20 mA Commissioning Function "probe length" (031) ⇒ Use this function to select whether the probe length was changed after factory calibration. Only then is it necessary to enter or correct the probe length.
  • Page 44 Commissioning Levelflex M FMP 41 C with HART/4...20 mA Function "empty calibr." (005) ⇒ This function is used to enter the distance from the flange (reference point of the measurement) to the minimum level (=zero). E = empty calibration (= zero) E max = probe length –...
  • Page 45 Levelflex M FMP 41 C with HART/4...20 mA Commissioning Note! The usable measuring range lies between the lower and the upper blocking distance. The values for empty distance (E) and span (F) can be set independently of this. Blocking distance and measuring range for Dk ≥ 1.6: LN [m]/"...
  • Page 46 Commissioning Levelflex M FMP 41 C with HART/4...20 mA Display (008) ⇒ The distance measured from the reference point to the product surface and the meas. value calculated with the aid of the empty adjustment are displayed. Check whether the values correspond to the actual meas.
  • Page 47 Levelflex M FMP 41 C with HART/4...20 mA Commissioning distance = ok Use this function at part-covered probe. Choosing function "manual" or "probe free" at free probe. • mapping is carried out up to the currently measured echo • The range to be suppressed is suggested in the "range of mapping" (052) function Anyway, it is wise to carry out a mapping even in this case.
  • Page 48 Commissioning Levelflex M FMP 41 C with HART/4...20 mA Display (008) ⇒ The distance measured from the reference point to the product surface and the meas. value calculated with the aid of the empty alignment are displayed again. Check whether the values correspond to the actual meas. value or the actual distance. The following cases can occur: •...
  • Page 49 Levelflex M FMP 41 C with HART/4...20 mA Commissioning Envelope curve with VU 331 After the basic setup, an evaluation of the measurement with the aid of the envelope curve ("envelope curve" (0E)) function group) is recommended.). 6.6.1 Function "plot settings" (0E1) ⇒...
  • Page 50 Commissioning Levelflex M FMP 41 C with HART/4...20 mA Function "envelope curve display" (0E3) You can obtain the following information from the envelope curve display in this function: quality of evaluated echo full calibr. evaluated echo empty calibr. is marked...
  • Page 51 Levelflex M FMP 41 C with HART/4...20 mA Commissioning Horizontal-Zoom-Modus Press , to switch to the envelope curve navigation. You are then in Horizontal Zoom mode. Either is displayed. You now have the following options: • increases the horizontal scale.
  • Page 52 Commissioning Levelflex M FMP 41 C with HART/4...20 mA Exiting the navigation • Press again to run through the different modes of the envelope curve navigation. • Press to exit the navigation. The set increases and shifts are retained. Only when you reactivate the "recording curve"(0E2) function does the Levelflex use the...
  • Page 53 Levelflex M FMP 41 C with HART/4...20 mA Commissioning Basic Setup step 2/6: • Enter the application parameters: – tank properties (for a description, see Page 40) – medium properties (for a description, see Page 41) – process properties (for a description, see Page 42)
  • Page 54 Commissioning Levelflex M FMP 41 C with HART/4...20 mA Basic Setup step 4/6: • Enter the application parameters: – probe (for a description, see Page 43) – probe length (for a description, see Page 43) – determine length (for a description, see Page 43)
  • Page 55 Levelflex M FMP 41 C with HART/4...20 mA Commissioning Basic Setup step 6/6: • This step starts the tank mapping • The measured distance and the current measured value are always displayed in the header • for a description, see Page 47) l00-fmp4xxxx-20-00-00-en-004 6.8.1...
  • Page 56 Commissioning Levelflex M FMP 41 C with HART/4...20 mA 6.8.2 Envelope curve with the ToF Tool After the basic setup, an evaluation of the measurement using the envelope curve is recommended (see Page 57). L00-FMP4xxxx-20-00-00-en-007 Note! For the optimization of the measurement the installation of the Levelflex in another place can be executed when enterference echoes.
  • Page 57 Levelflex M FMP 41 C with HART/4...20 mA Commissioning An evaluation of the measurement with the aid of the envelope curve Typical curve shape: The following examples display typical curve shapes for a rope or rod probe in an empty tank.
  • Page 58 Commissioning Levelflex M FMP 41 C with HART/4...20 mA Evaluation of the measurement: • The map must correspond to the course of the envelope curve (for rod probes up to approx. 5 cm and for rope probes up to approx. 25 cm before the end of the probe) when the tank is empty.
  • Page 59 They contain the related replacement instructions. All the spare parts kits which you can order from Endress+Hauser for repairs to the Levelflex M are listed with their order numbers on Page 68 ff.. Please contact Endress+Hauser Service for further information on service and spare parts.
  • Page 60 Accessories Levelflex M FMP 41 C with HART/4...20 mA Accessories Various accessories, which can be ordered separately from Endress+Hauser, are available for the Levelflex M. Weather protection cover A Weather protection cover made of stainless steel is available for outdoor mounting (order code: 543199-0001).
  • Page 61 Levelflex M FMP 41 C with HART/4...20 mA Accessories Remote display FHX 40 Dimensions Wall-mounting Pipe-mounting (without mounting bracket) (mounting bracket and plate F12/F23 housing (IP 68) supplied optionally, s. product structure) Separate housing FHX 40 (IP 65) O rd...
  • Page 62 Accessories Levelflex M FMP 41 C with HART/4...20 mA Welding boss for universal adapter Dimensions of the welding ring Order . Diameter D Height H torque 5...10 Nm 52006262 214880-0002 Material: 1.4435/SS316L 30° Ø D L00-FMP4xxxx-00-00-06-en-006 Endress + Hauser...
  • Page 63 Levelflex M FMP 41 C with HART/4...20 mA Trouble-shooting Trouble-shooting Trouble-shooting instructions Levelflex M -Trouble Shooting Check voltage and Not ok compare it with the Instrument does Connect the Instrument works? Ready specifications on the not respond correct voltage nameplate.
  • Page 64 Trouble-shooting Levelflex M FMP 41 C with HART/4...20 mA System error messages Code Description Possible cause Remedy A102 checksum error device has been powered off before reset general reset & new data could be stored; avoid emc problem; calibr. required emc problem;...
  • Page 65 Levelflex M FMP 41 C with HART/4...20 mA Trouble-shooting Code Description Possible cause Remedy W512 recording of mapping mapping active wait some seconds until alarm please wait disappears W601 linearisation ch1 curve linearization not monotonously correct linearisation table not monotone...
  • Page 66 Trouble-shooting Levelflex M FMP 41 C with HART/4...20 mA Application errors Error Output Possible cause Remedy A warning or Depending on the configuration See table of 1. See table of error messages alarm has error messages (see Page 64) occurred.
  • Page 67 Levelflex M FMP 41 C with HART/4...20 mA Trouble-shooting Device displays a Incorrect probe 1. Carry out automatic probe level when the length length detection when the tank is empty. tank is empty. 20 mA/100% 2. Carry out mapping over entire probe when the tank is empty (probe free!).
  • Page 68 The corresponding spare part number also appears on each spare part. Installation instructions are given on the instruction card that is also delivered. Spare parts Levelflex M FMP 41 C housing type F12 with a combined connection compartment and electronics compartment...
  • Page 69 Levelflex M FMP 41 C with HART/4...20 mA Trouble-shooting 10 Housing 543120-0022 Housing F12, aluminium, G1/2 543120-0023 Housing F12, aluminium, NPT1/2 543120-0024 Housing F12, aluminium, M20 52013409 Housing F12, aluminium, coated, M20, metal 52001992 Housing F12, aluminium, M20, PA connector...
  • Page 70 Trouble-shooting Levelflex M FMP 41 C with HART/4...20 mA Spare parts for Levelflex M FMP 41 C housing type T12 with separate connec- ting compartment O rd r. -N d e : I L O o .: s s b...
  • Page 71 Levelflex M FMP 41 C with HART/4...20 mA Trouble-shooting 10 Housing 543180-1023 Housing T12, aluminium, NPT1/2, PAL 52006205 Housing T12, aluminium, M20, PAL, cover 52013411 Housing T12, aluminium, M20, PA connector, cover 52013410 Housing T12, aluminium, M20, FF connector, cover...
  • Page 72 Trouble-shooting Levelflex M FMP 41 C with HART/4...20 mA Spare parts for Levelflex M FMP 41 C housing type F23 Under development. FMP 41 C - probes, accessories and spare parts Under development. Endress + Hauser...
  • Page 73 – HART-Communicator DXR 375 with Revision 1, DD 1. Contact addresses of Endress+Hauser The addresses of Endress+Hauser are given on the back cover of this operating manual. If you have any questions, please do not hesitate to contact your E+H representative.
  • Page 74 Technical data Levelflex M FMP 41 C with HART/4...20 mA Technical data 10.1 Additional technical data 10.1.1 Input Measured variable The measured variable is the distance between a reference point (see Fig. on Page 12) and the product surface. Subject to the input empty distance (E, see Fig. on Page 84), the level is calculated.
  • Page 75 Levelflex M FMP 41 C with HART/4...20 mA Technical data 10.1.3 Performance characteristics • temperature = +20 °C (68 °F) ±5 °C (9 °F) Reference operating • pressure = 1013 mbar abs. (14.7 psia) ±20 mbar (0.3 psi) conditions • humidity = 65 % ±20% •...
  • Page 76 Technical data Levelflex M FMP 41 C with HART/4...20 mA 10.1.4 Operating conditions: Environment Ambient temperature Ambient temperature for the transmitter: -40 °C ... +80 °C (-40 °F … +176 °F) range The functionality of the LCD display may be limited for temperatures Ta<-20 °C and Ta>+60 °C.
  • Page 77 Flange weight Flange weight 10.1.7 Certificates and approvals CE approval The measuring system meets the legal requirements of the EC-guidelines. Endress+Hauser confirms the instrument passing the required tests by attaching the CE-mark. Ex(-)approval Under development. EHEDG approval Under development. 3A approval Under development.
  • Page 78 Technical data Levelflex M FMP 41 C with HART/4...20 mA Telecommunication Fulfils "Part 15" of the FCC regulations for an "Unintentional Radiator". All probes meet the requirements for a "Class A Digital Device". In addition to this, all probes in metallic tanks meet the requirements for a "Class B Digital Device".
  • Page 79 Levelflex M FMP 41 C with HART/4...20 mA Technical data Endress + Hauser...
  • Page 80 Appendix Levelflex M FMP 41 C with HART/4...20 mA Appendix 11.1 Operating menu HART (Display modul), ToF Tool basic setup tank properties medium cond. process proper. determine length empty calibr. end of probe 030 see Function group “leghth adjustment 03”...
  • Page 81 Levelflex M FMP 41 C with HART/4...20 mA Appendix full calibr. dist./meas.value check distance range of mapping start mapping dist./meas.value enter value distance = ok input of D and L dist. too small mapping range are displayed D and L...
  • Page 82 Appendix Levelflex M FMP 41 C with HART/4...20 mA 11.2 Operating matrix HART / Commuwin II L00-FMP4xxxx-13-00-00-en-001 Note! In brackets ( ) you can see the maximum value, which can be edit. Endress + Hauser...
  • Page 83 Levelflex M FMP 41 C with HART/4...20 mA Appendix 11.3 Description of functions Note! A detailed description of the function groups, functions and parameters is given in the documentation BA245F – "Description of the instrument functions" on the enclosed CD- ROM.
  • Page 84 Appendix Levelflex M FMP 41 C with HART/4...20 mA 11.4 Function and system design 11.4.1 Measuring principle The Levelflex is a "downward-looking" measuring system that functions according to the ToF method (ToF = Time of Flight). The distance from the reference point (process connection of the measuring device see Page 11) to the product surface is measured.
  • Page 85 Levelflex M FMP 41 C with HART/4...20 mA Appendix 11.4.2 Equipment architecture Stand-alone • Power supply directly from power line (4-wire) or from transmitter power supply unit (2-wire). • Operation by on-site display or remote operation via HART protocol. - COMMUWIN II...
  • Page 86 Levelflex M FMP 41 C with HART/4...20 mA Endress + Hauser Index maximum measured error ....75 Medium properties ..... . . 41, 53 Accessories.
  • Page 87 Declaration of contamination Dear customer, Because of legal determinations and for the safety of our employes and operating equipment we need this “Declaration of contamination” with your signature before your order can be handled. Please put the completely filled in declaration to the instrument and to the shipping documents in any case. Add also safety sheets and/or specific handling instructions if necessary.
  • Page 88 Poland – Wroclaw Costa Rica – San Jose Tel. (01) 88 05 60, Fax (01) 88 05 63 35 Endress+Hauser Polska Sp. z o.o. Sakura Endress Co. Ltd. Euro-Tec S.A. Tel. (0422) 54 06 11, Fax (0422) 55 02 75 Tel.
