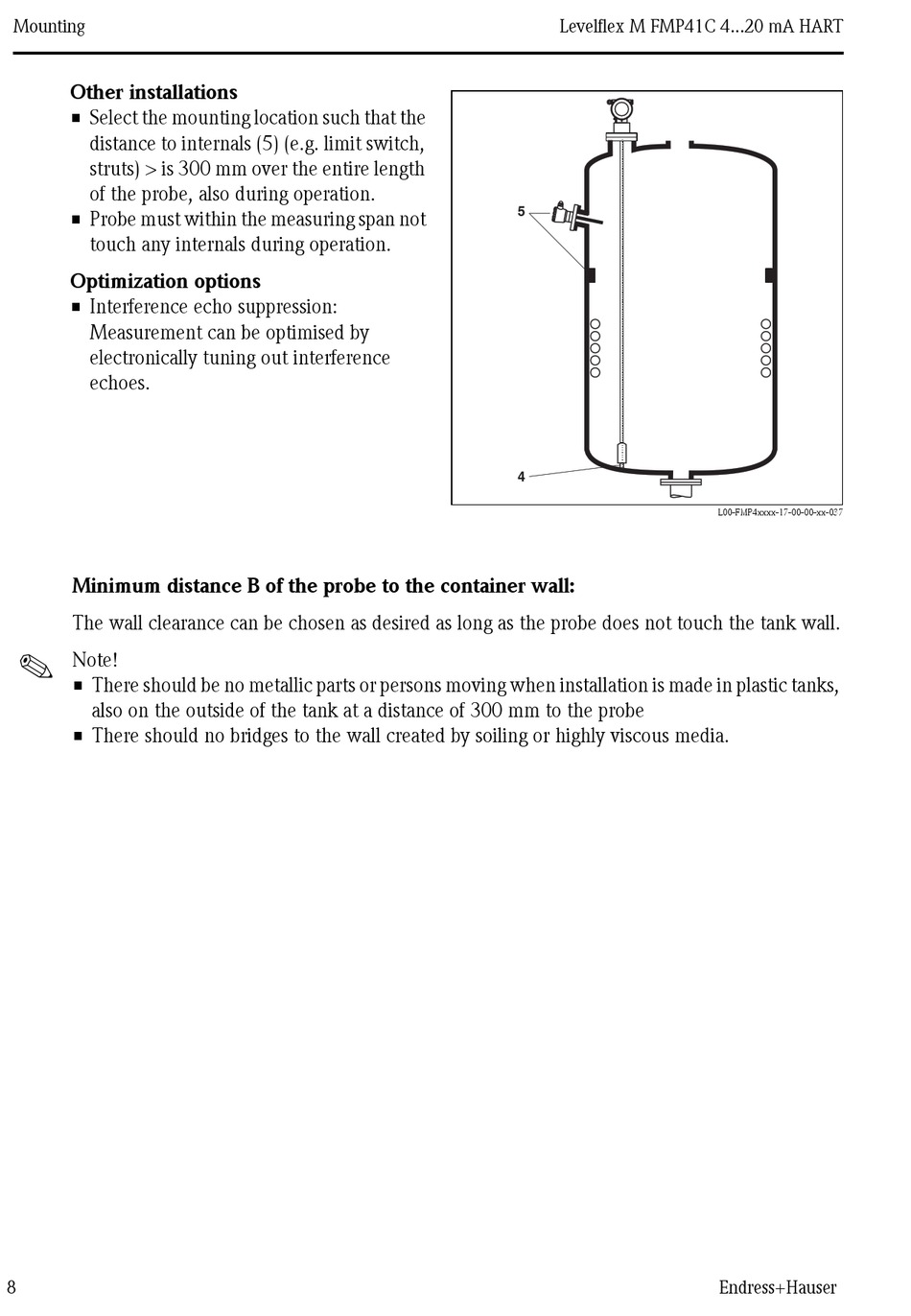

Mounting
Other installations
• Select the mounting location such that the
distance to internals (5) (e.g. limit switch,
struts) > is 300 mm over the entire length
of the probe, also during operation.
• Probe must within the measuring span not
touch any internals during operation.
Optimization options
• Interference echo suppression:
Measurement can be optimised by
electronically tuning out interference
echoes.
Minimum distance B of the probe to the container wall:
The wall clearance can be chosen as desired as long as the probe does not touch the tank wall.
!
Note!
• There should be no metallic parts or persons moving when installation is made in plastic tanks,
also on the outside of the tank at a distance of 300 mm to the probe
• There should no bridges to the wall created by soiling or highly viscous media.
8
Levelflex M FMP41C 4...20 mA HART
5
4
L00-FMP4xxxx-17-00-00-xx-037
